Power Shoulder Belt Anchorage System
>>
Location
Location

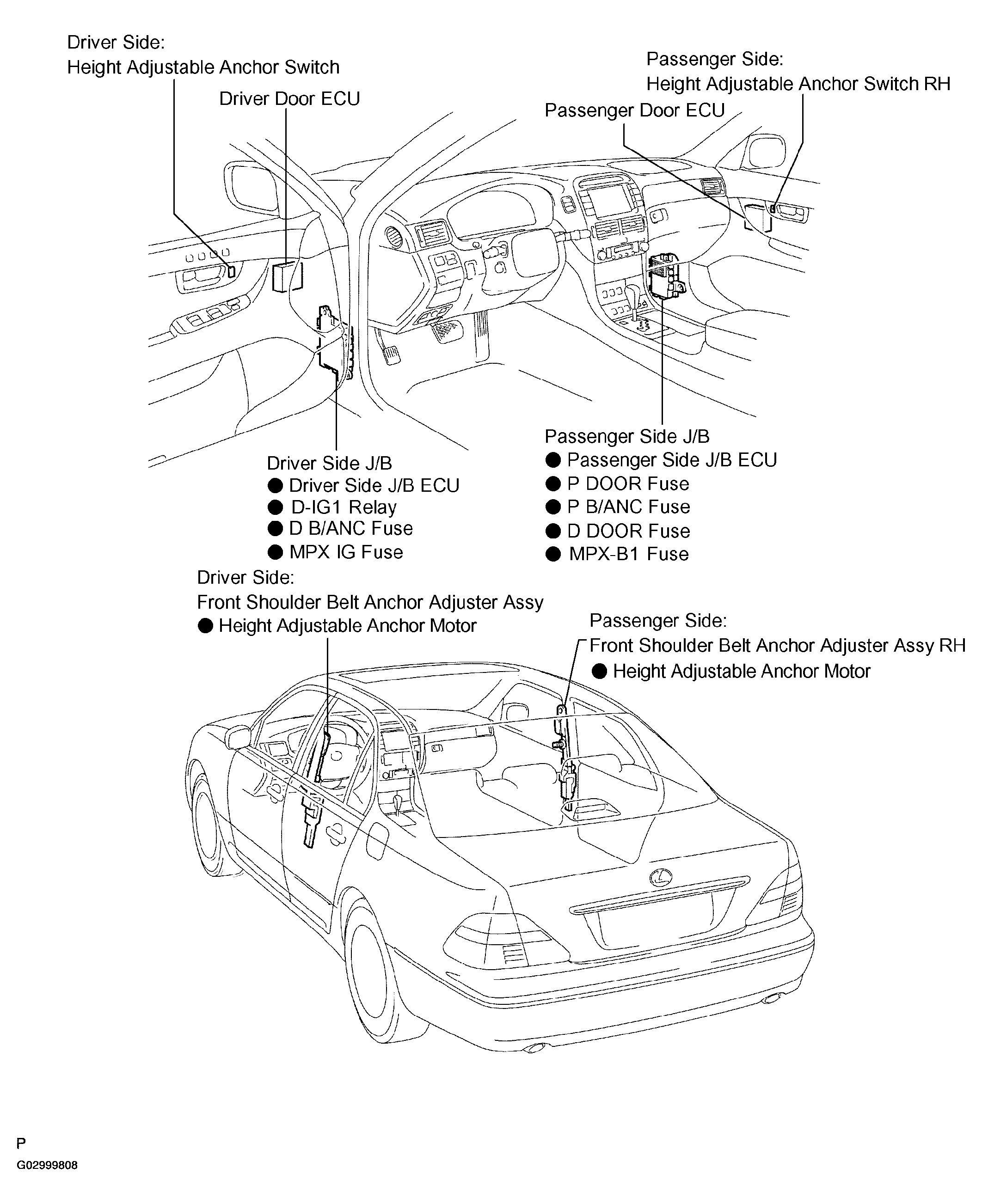

Fig 1: Identifying Power Shoulder Belt Anchorage System Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
