Standard Bolt How To Determine Bolt Strength

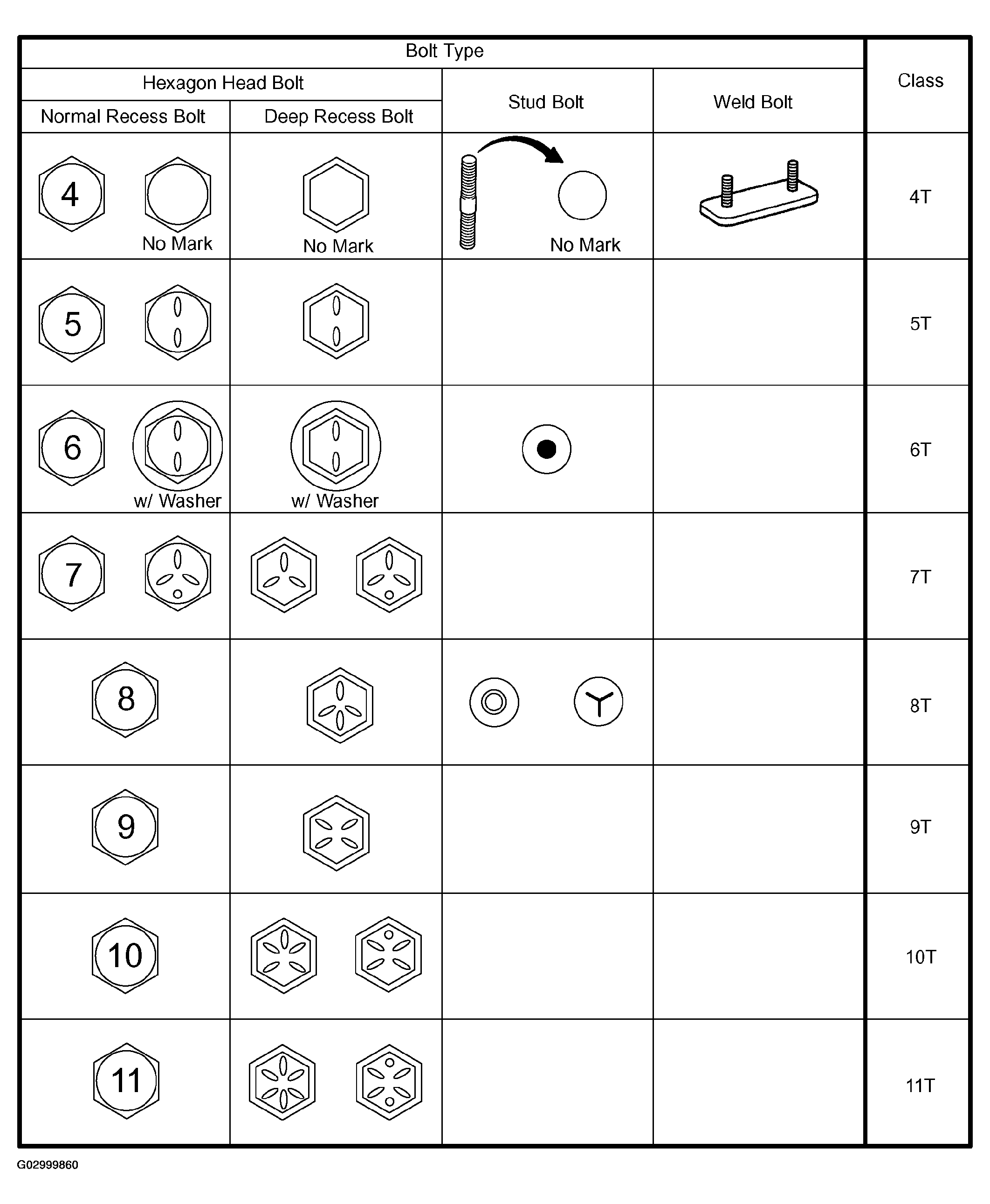

Fig 1: Identifying Standard Bolt

G02999860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
