Rear Door RH Ecu Power Source Circuit: Wiring Diagram

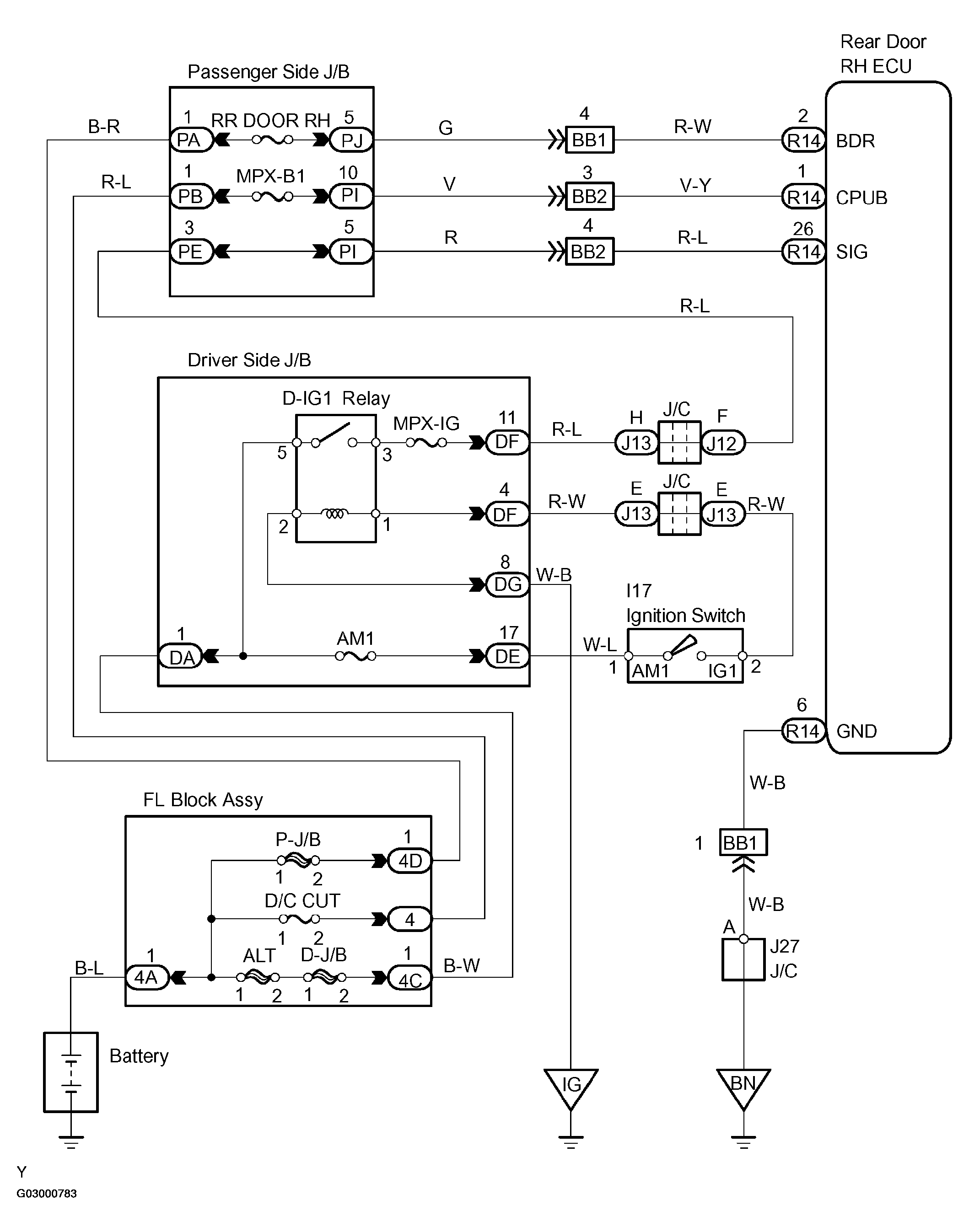

Fig 1: Rear Door RH ECU Power Source Circuit Wiring Diagram

G03000783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
