Rear Door LH Ecu Power Source Circuit: Wiring Diagram

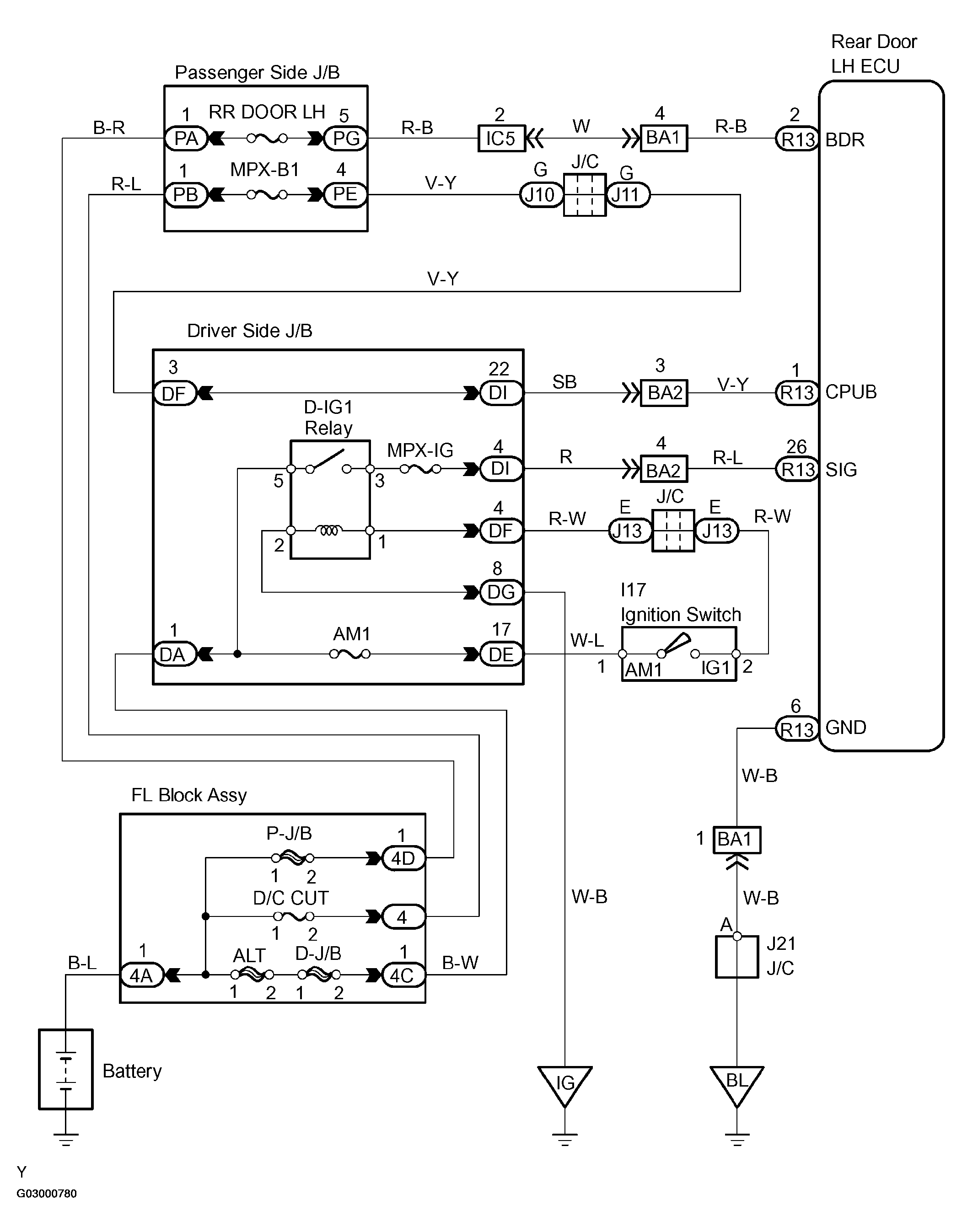

Fig 1: Rear Door LH ECU Power Source Circuit Wiring Diagram

G03000780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
