Power Window Motor Circuit (Rear RH): Wiring Diagram

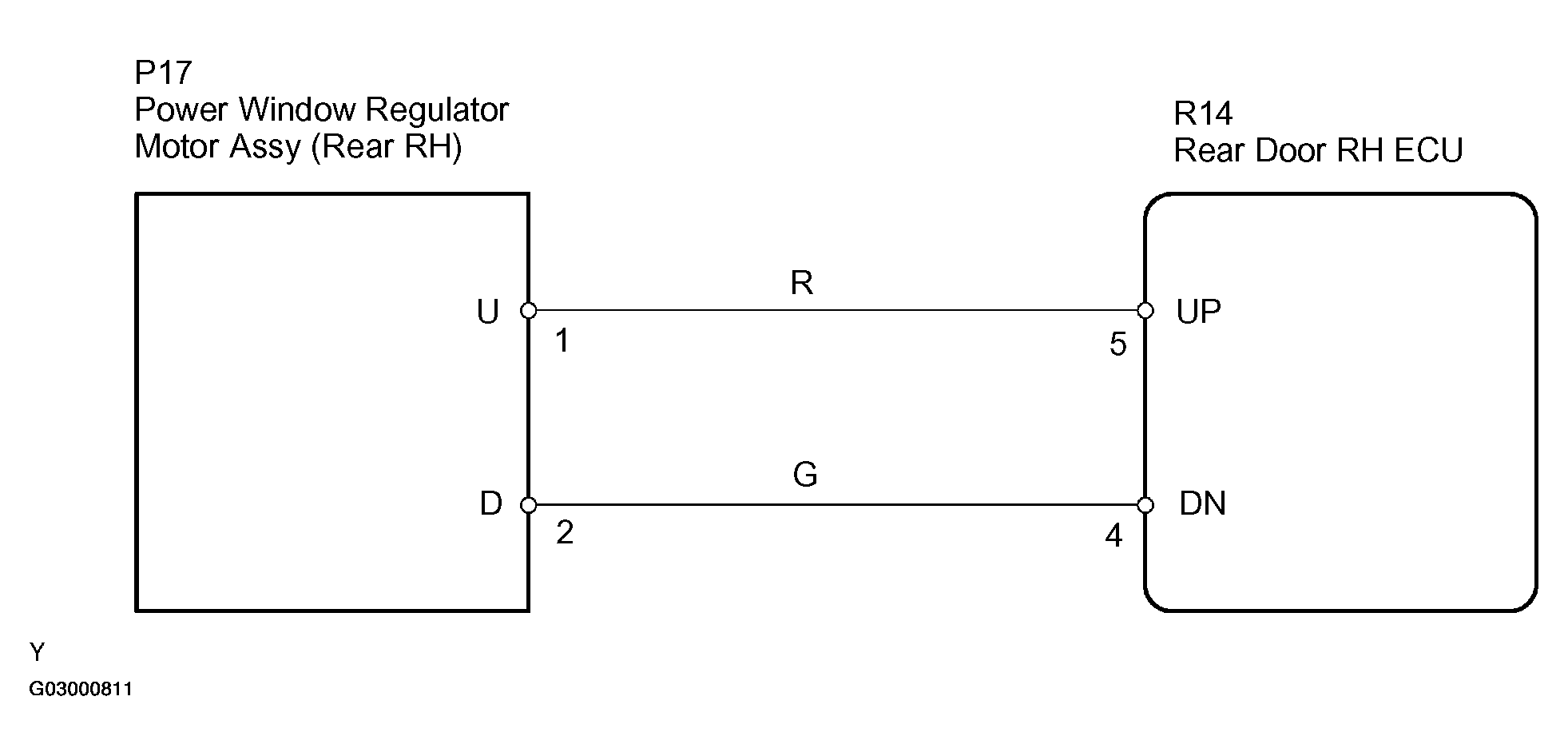

Fig 1: Power Window Motor Circuit Wiring Diagram (Rear RH)

G03000811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
