Power Window Motor Circuit (Rear LH): Wiring Diagram

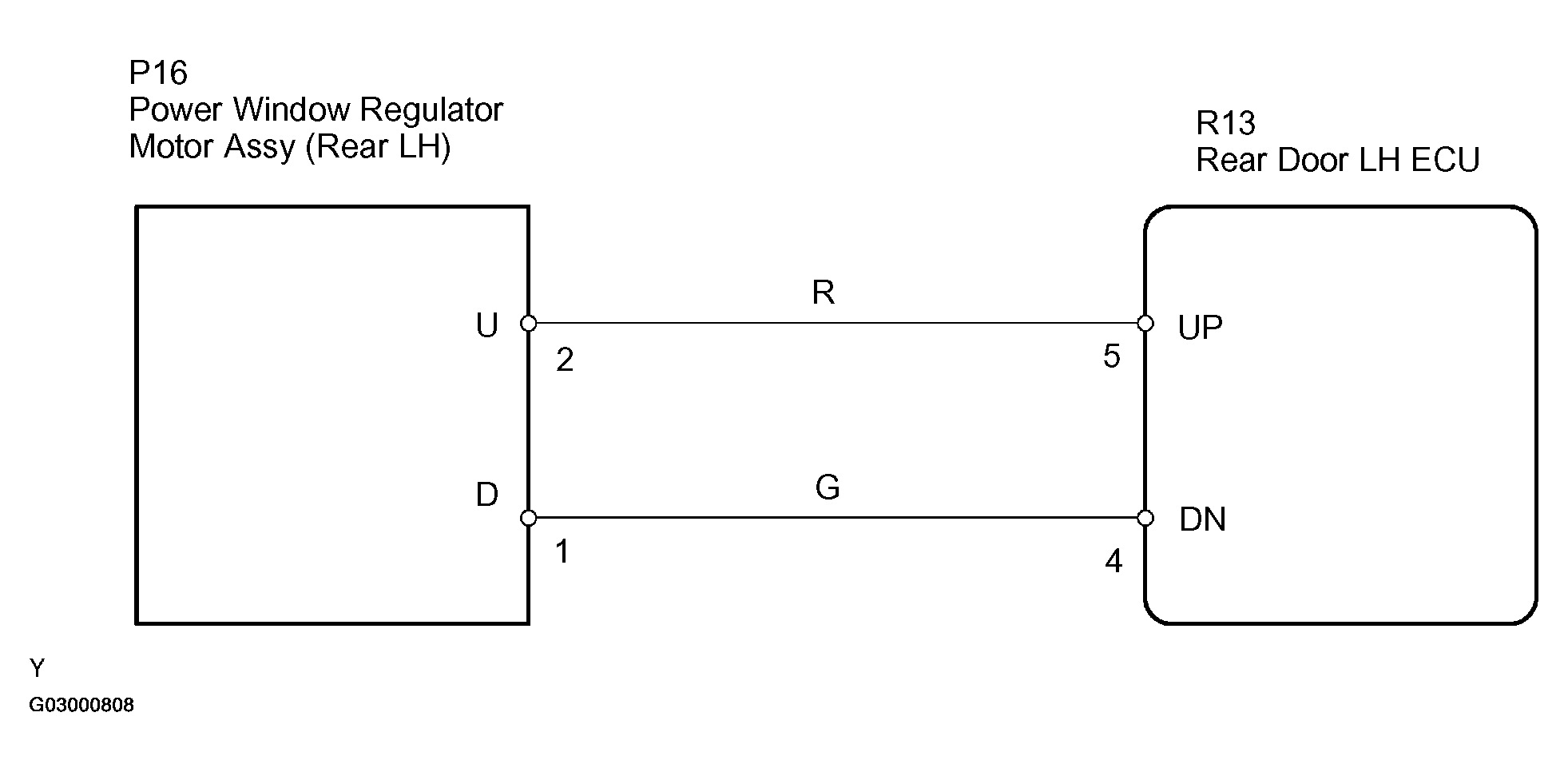

Fig 1: Power Window Motor Circuit Wiring Diagram (Rear LH)

G03000808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
