DTC B1221: Power Window Switch Circuit On Driver Door: Wiring Diagram

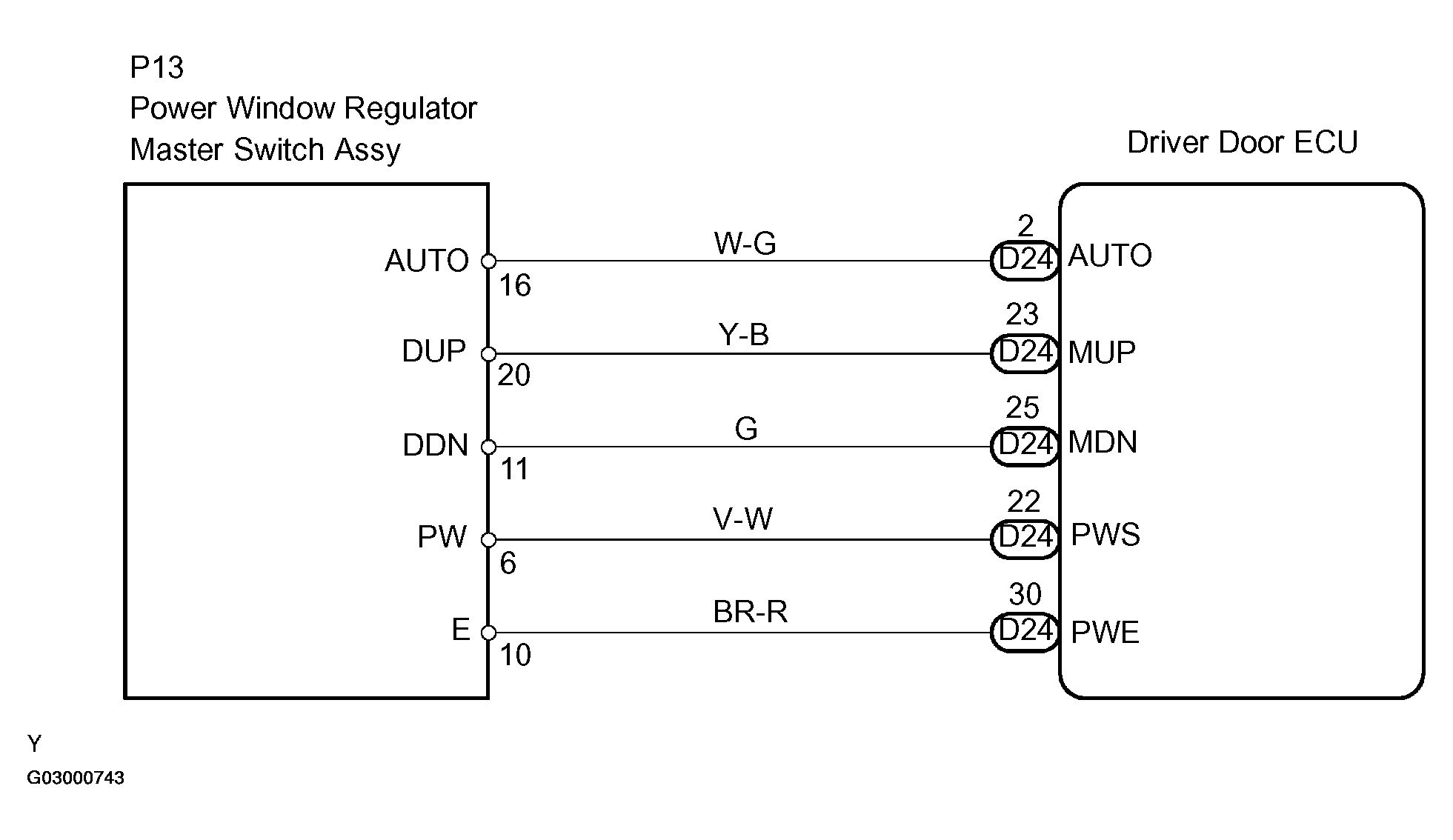

Fig 1: Driver Door Power Window Switch Circuit Wiring Diagram

G03000743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
