Lumbar Support Switch Circuit: Wiring Diagram

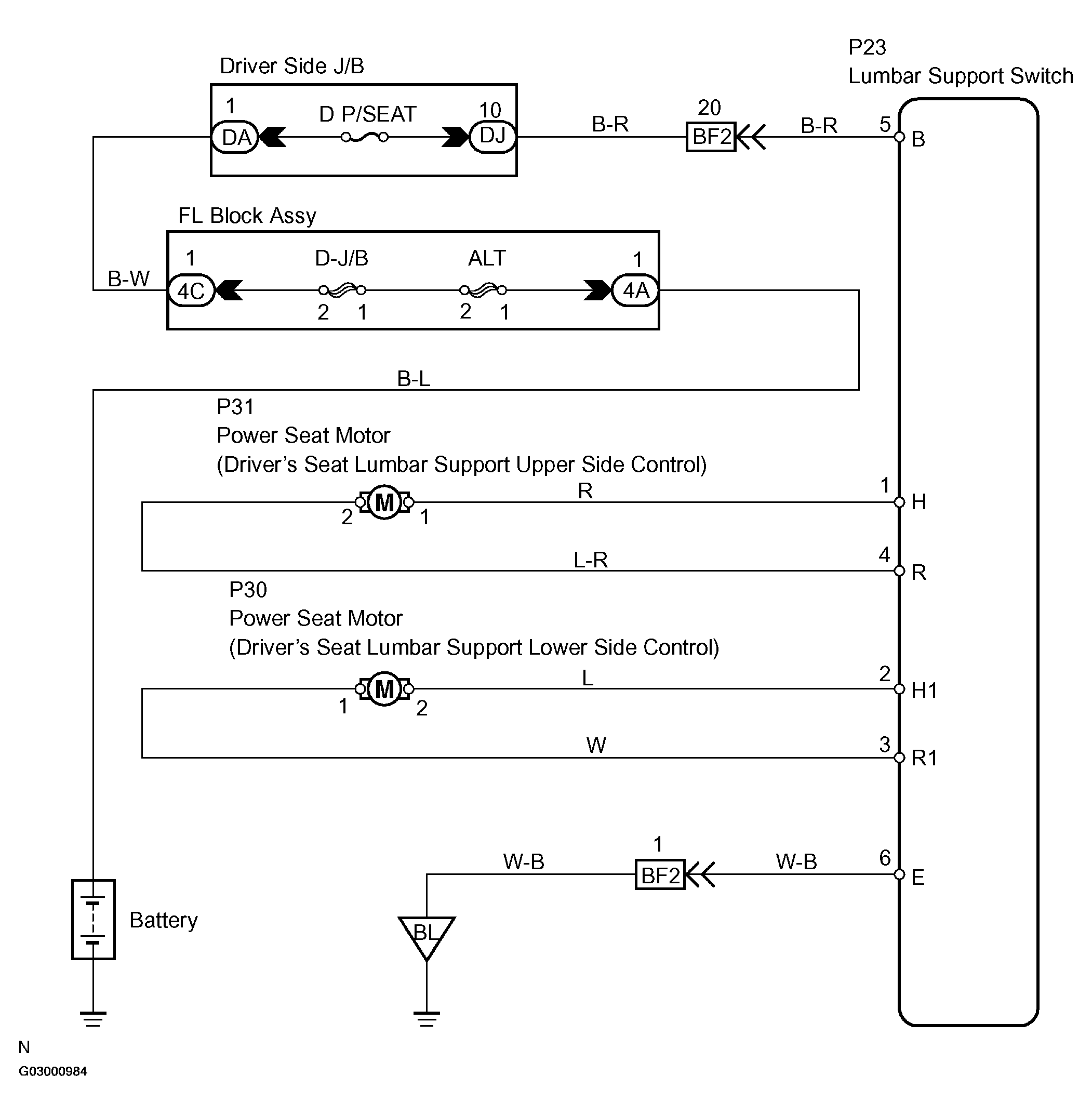

Fig 1: Lumbar Support Switch Wiring Diagram

G03000984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
