LS 430
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Climate Control Seat System - Diagnostics
>>
Climate Control System Does Not Operate On Passenger Side
>>
Wire Diagram
Wire Diagram

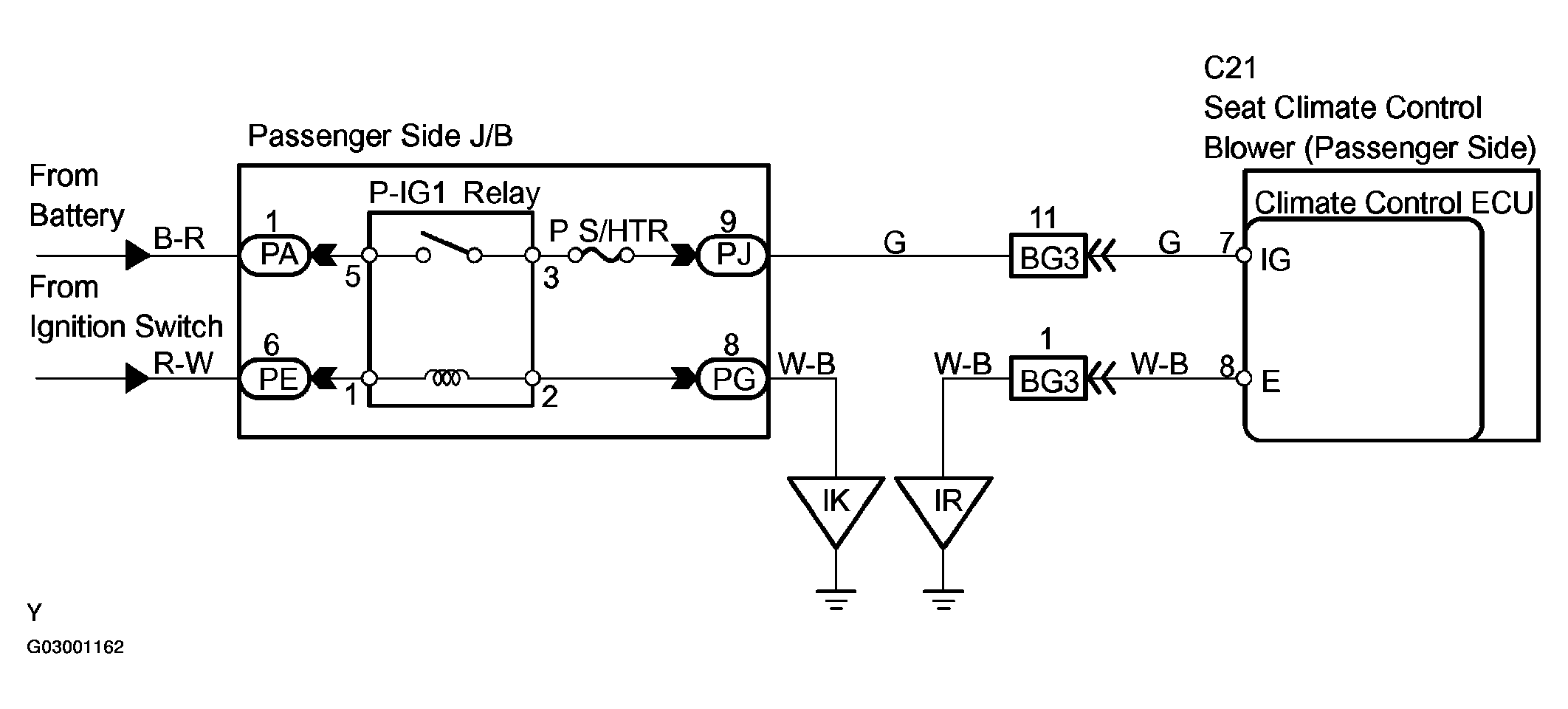

Fig 1: Climate Control System Does Not Operate On Passenger Side - Wire Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
