Inspection Procedure

1. Connect the hand-held tester to DLC3.
2. Turn the ignition switch ON and push the hand-held tester main switch ON.
3. Select the items below in the DATA LIST, and read the displays on the hand-held tester.

SPAD:

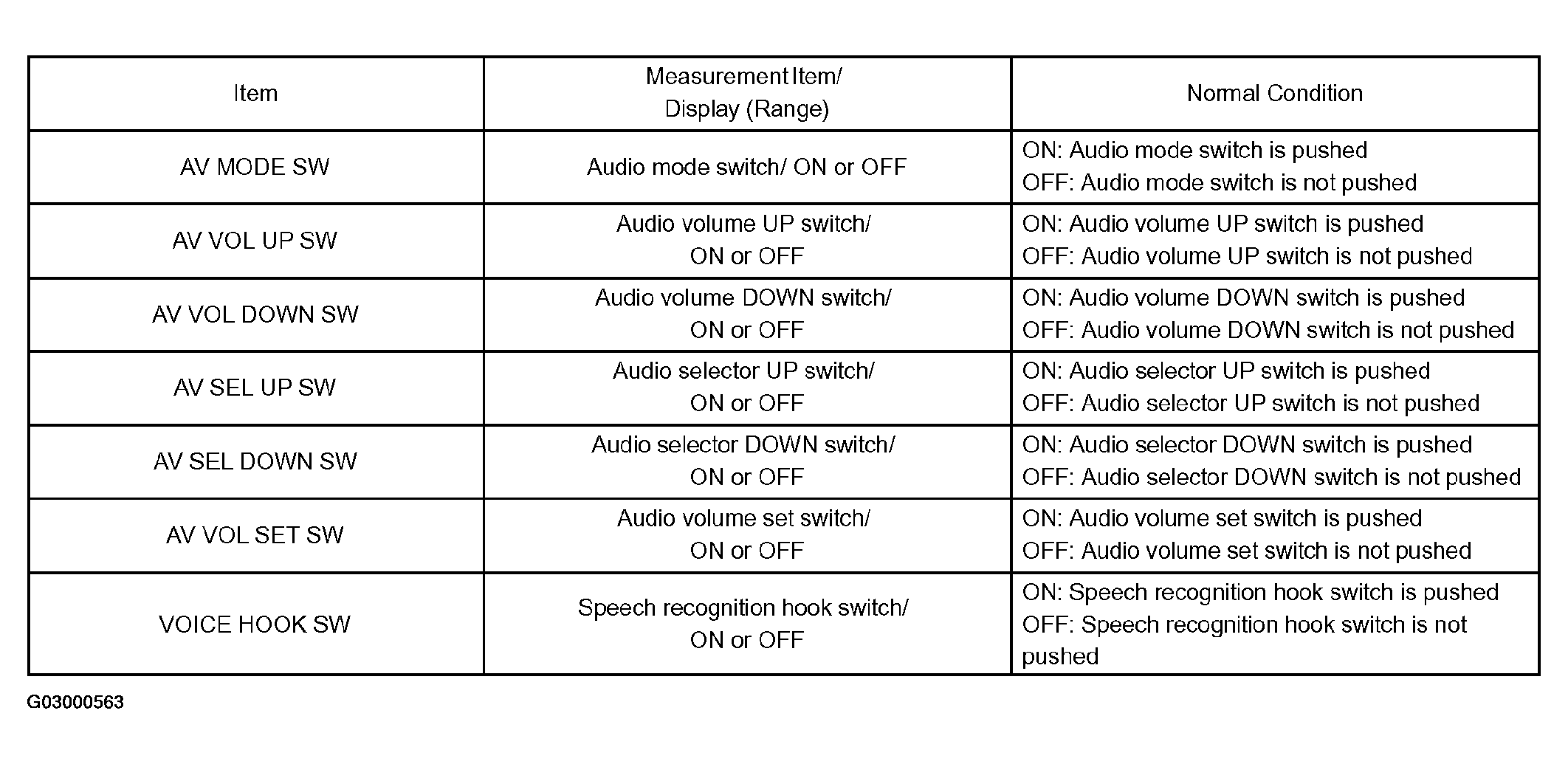

Fig 1: Item Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

NG: REPLACE STEERING PAD SWITCH (SEE  REPLACEMENT  )
