Inspection Procedure

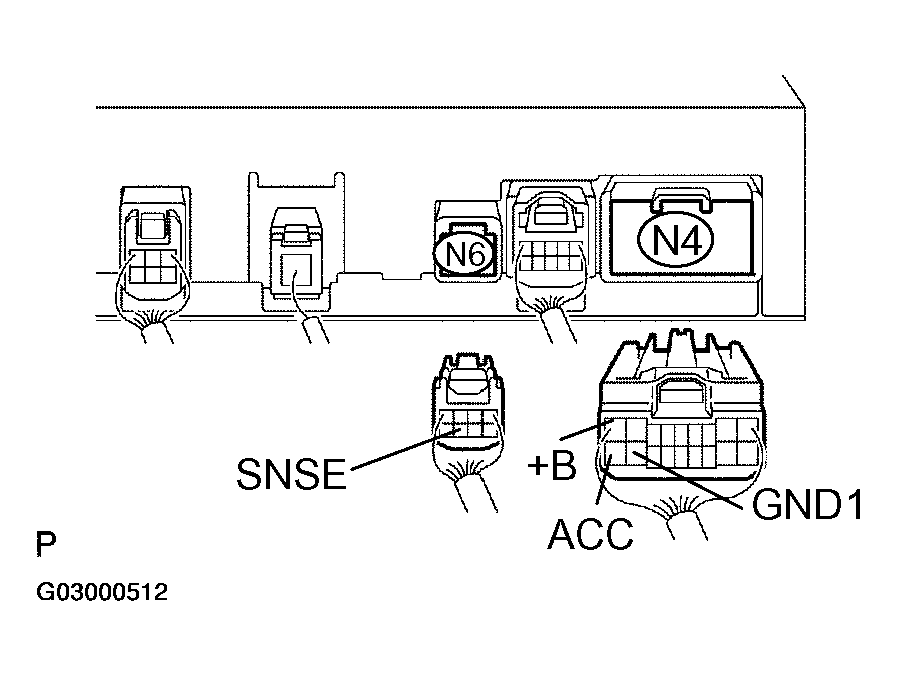

Fig 1: Identifying Navigation ECU (+B, ACC, Gnd1, Snse) Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the navigation ECU connector N4, N6.
2. Measure the resistance according to the value (s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   GND1 - Body ground	Always	Below 1 Ω
   SNSE - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value (s) in the table below.

Standard:

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE   or  DIAGNOSTIC TROUBLE CODE CHART
