Sensor Power Source Circuit: Wiring Diagram

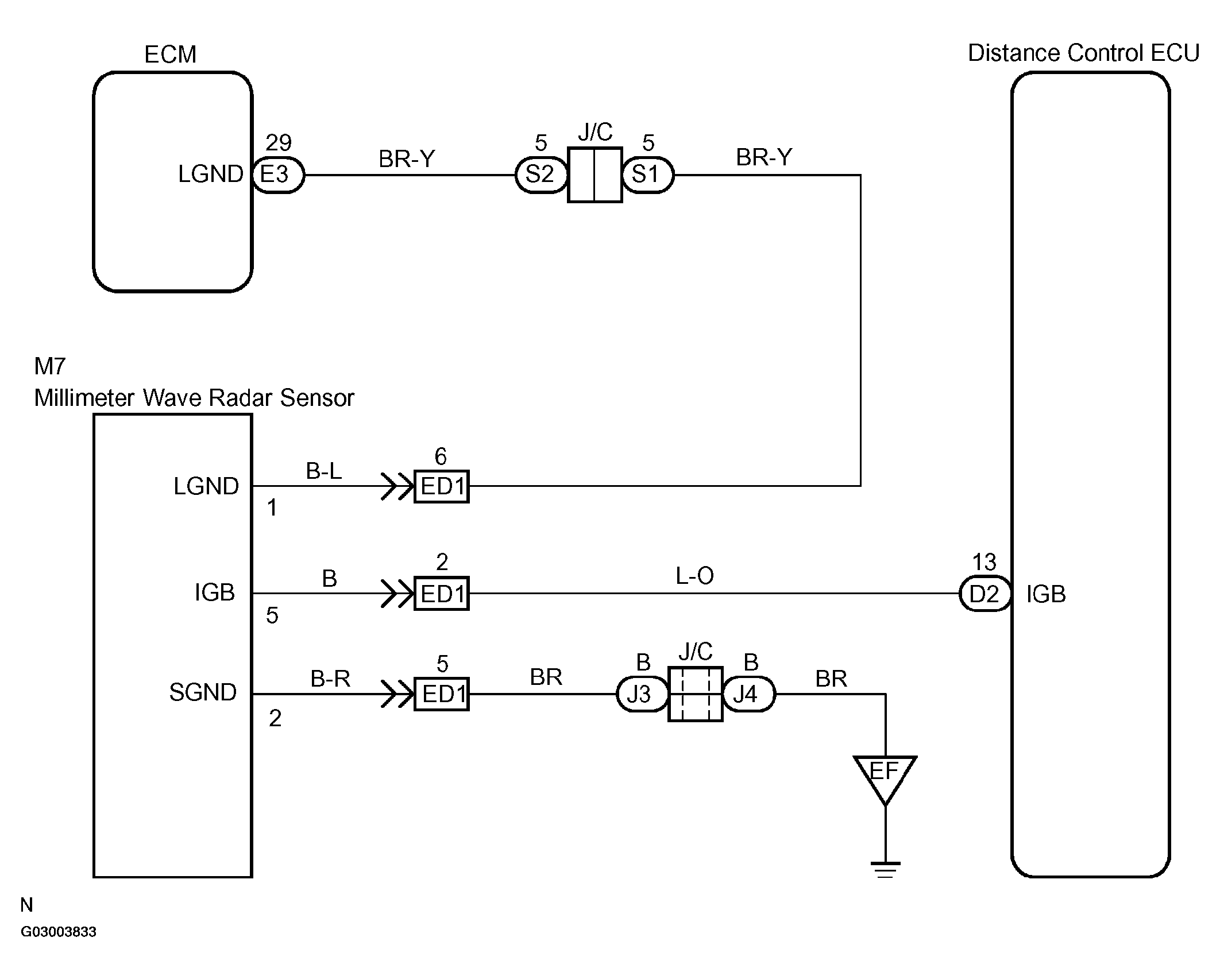

Fig 1: Wiring Diagram - Sensor Power Source Circuit

G03003833

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
