Cruise Control Switch Circuit: Wiring Diagram

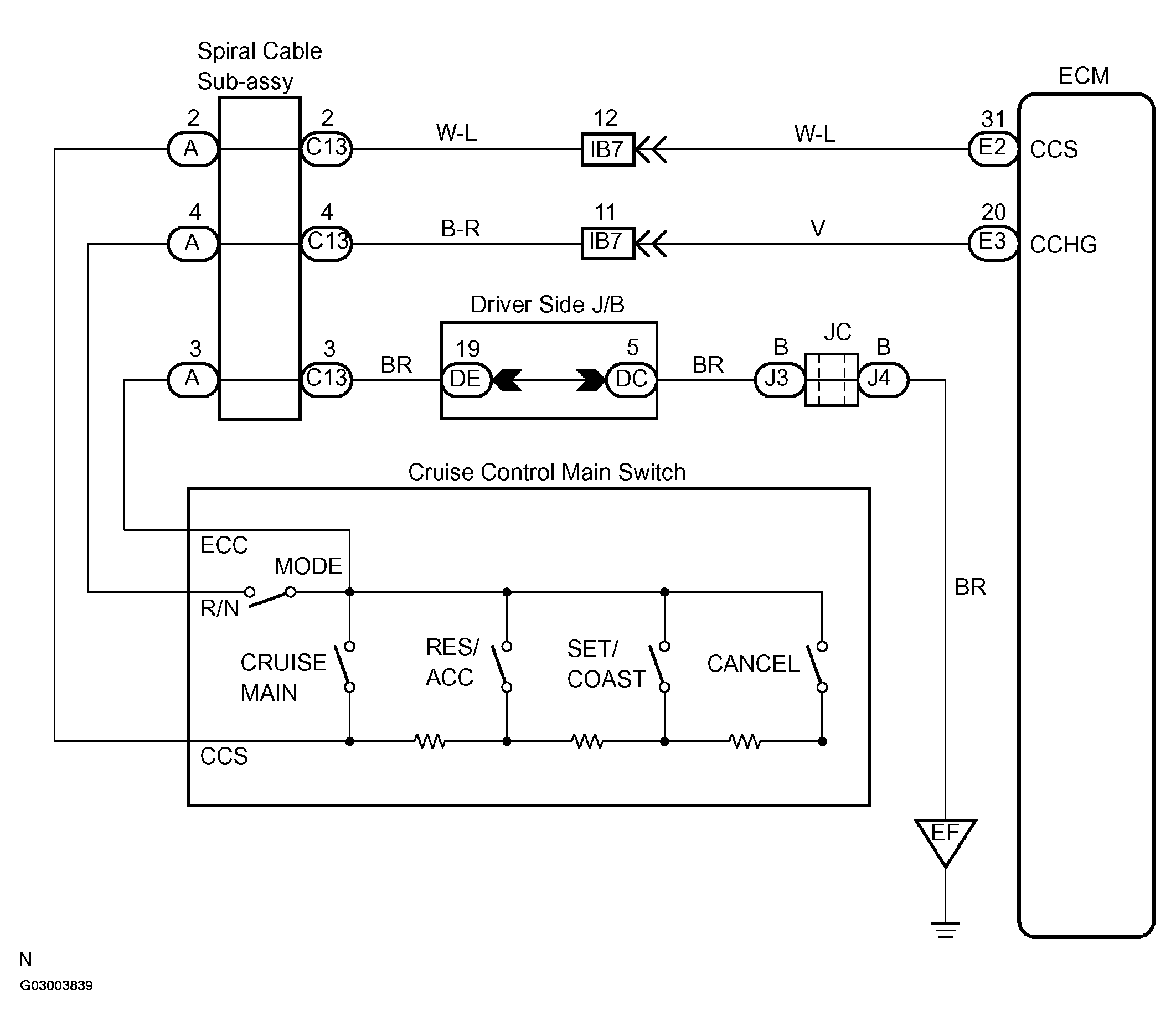

Fig 1: Wiring Diagram - Cruise Control Switch Circuit

G03003839

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
