Distance Control Ecu Power Source Circuit: Wiring Diagram

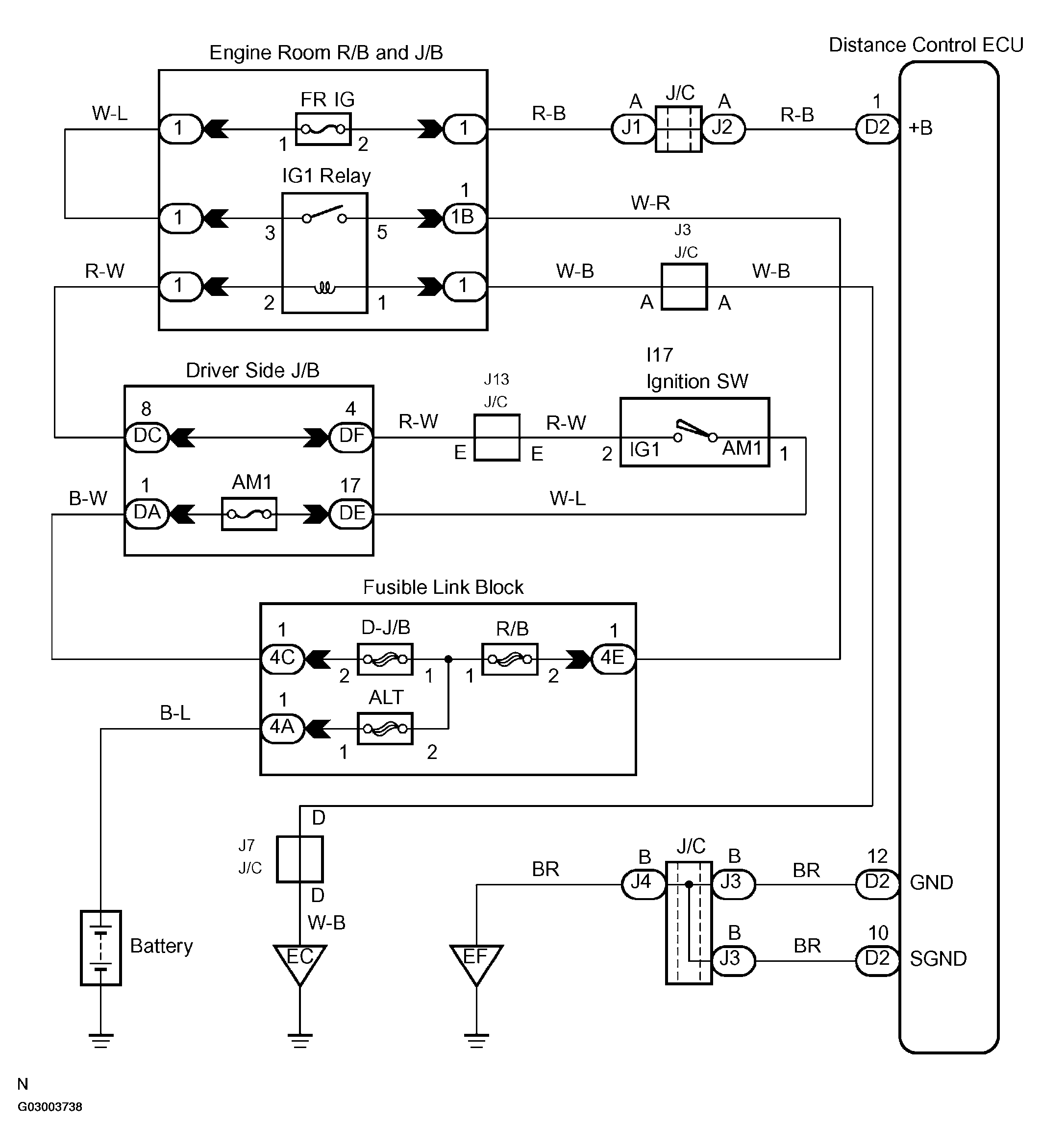

Fig 1: Wiring Diagram - Distance Control ECU Power Source Circuit

G03003738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
