Refrigerant Line: Components

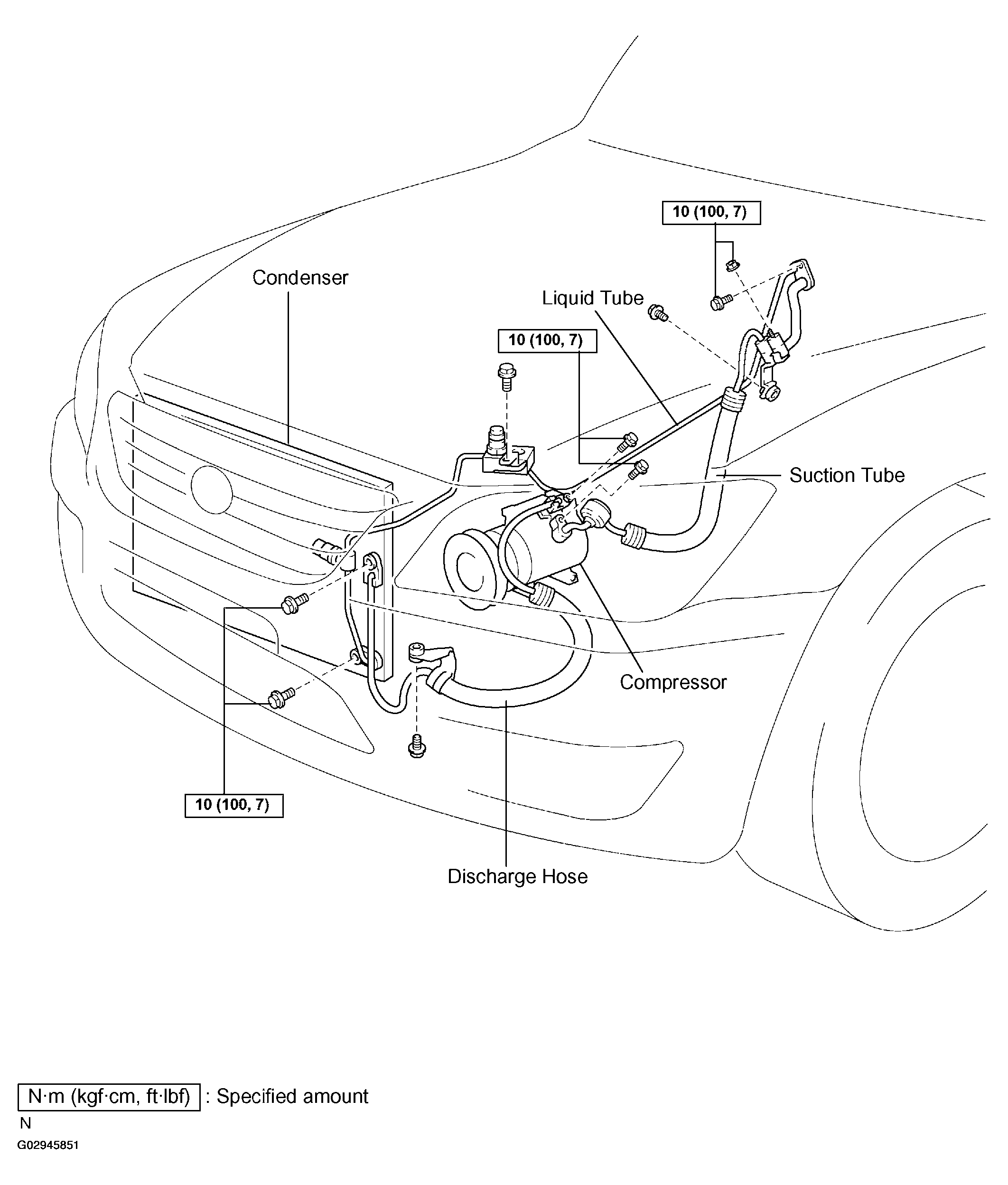

Fig 1: Component Location Of Refrigerant Line With Torque Specifications

G02945851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
