Condenser Fan: Components

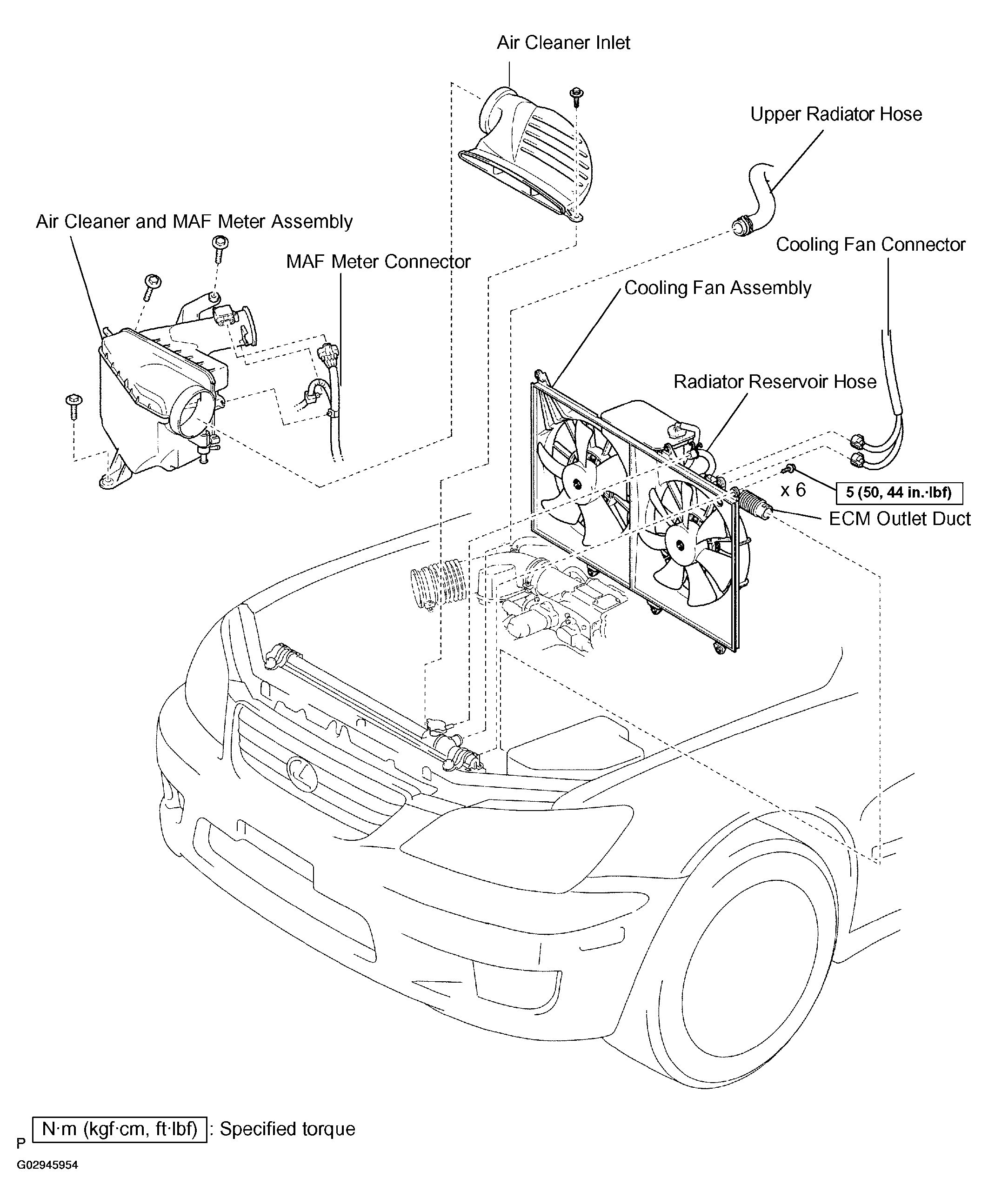

Fig 1: Component Location Of Condenser Fan With Torque Specifications (1 Of 2)
G02945954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

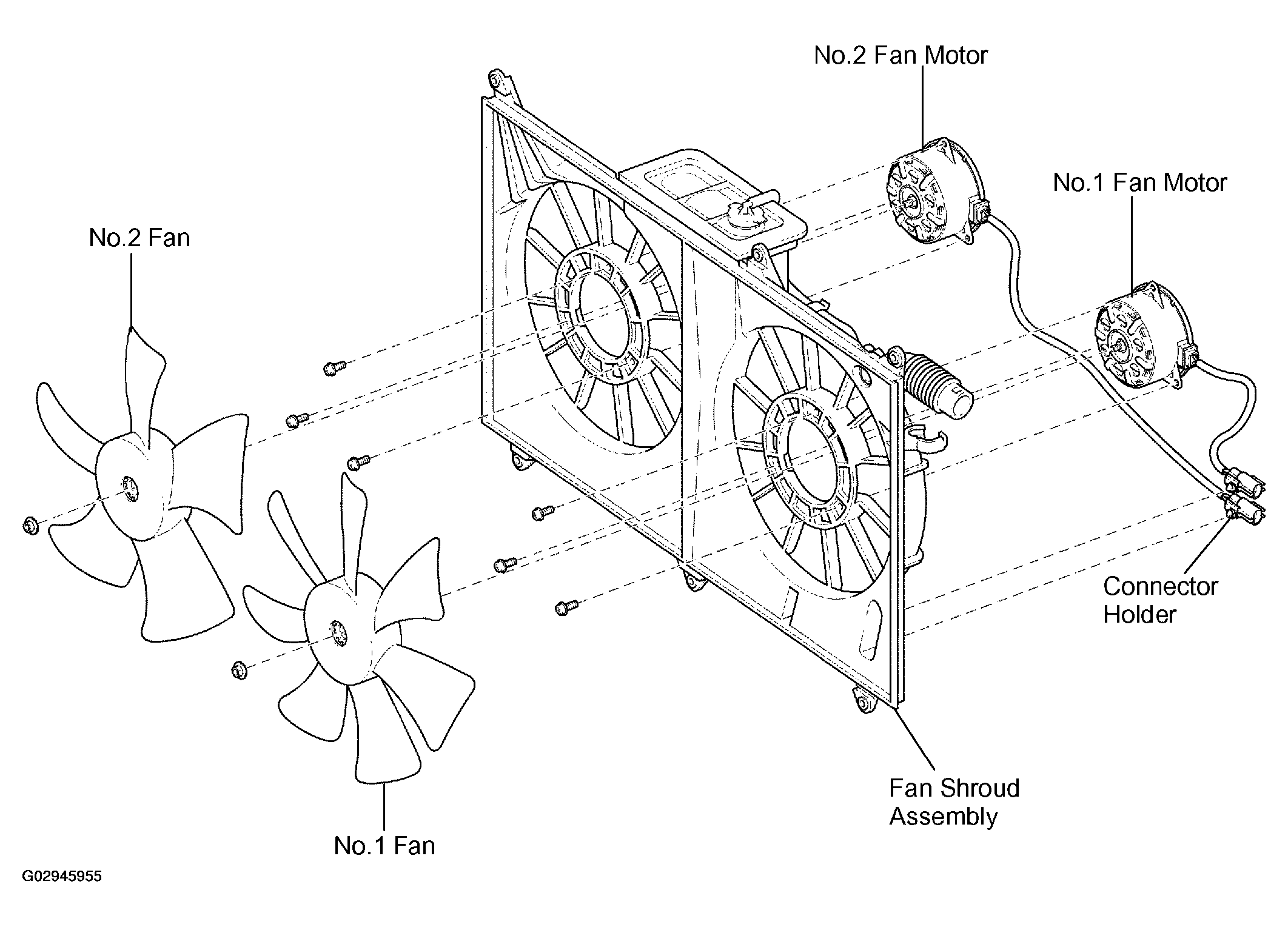

Fig 2: Component Location Of Condenser Fan With Torque Specifications (2 Of 2)
G02945955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
