Compressor And Magnetic Clutch: Components

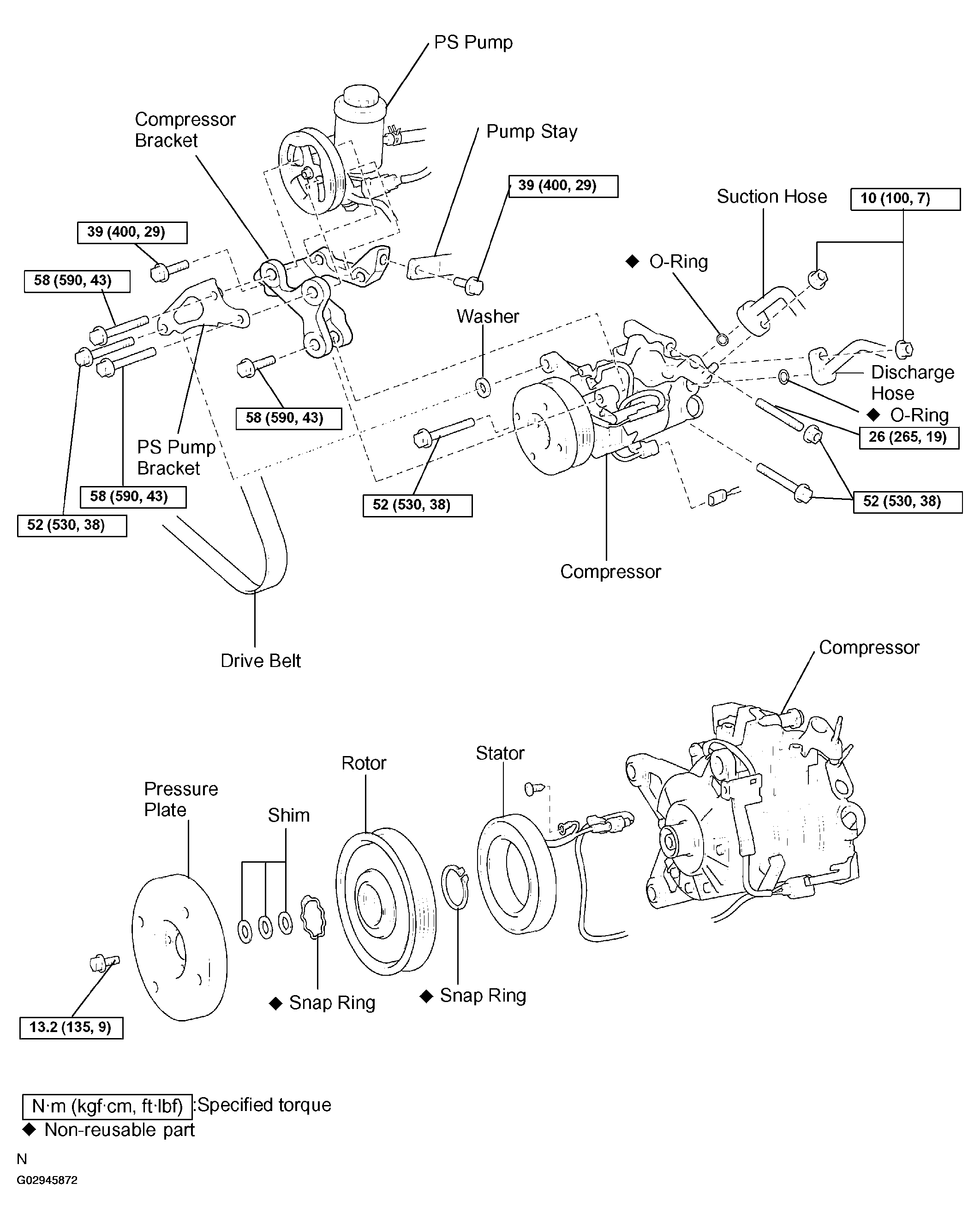

Fig 1: Exploded View Of Compressor Components With Torque Specifications

G02945872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
