Blower Unit: Components

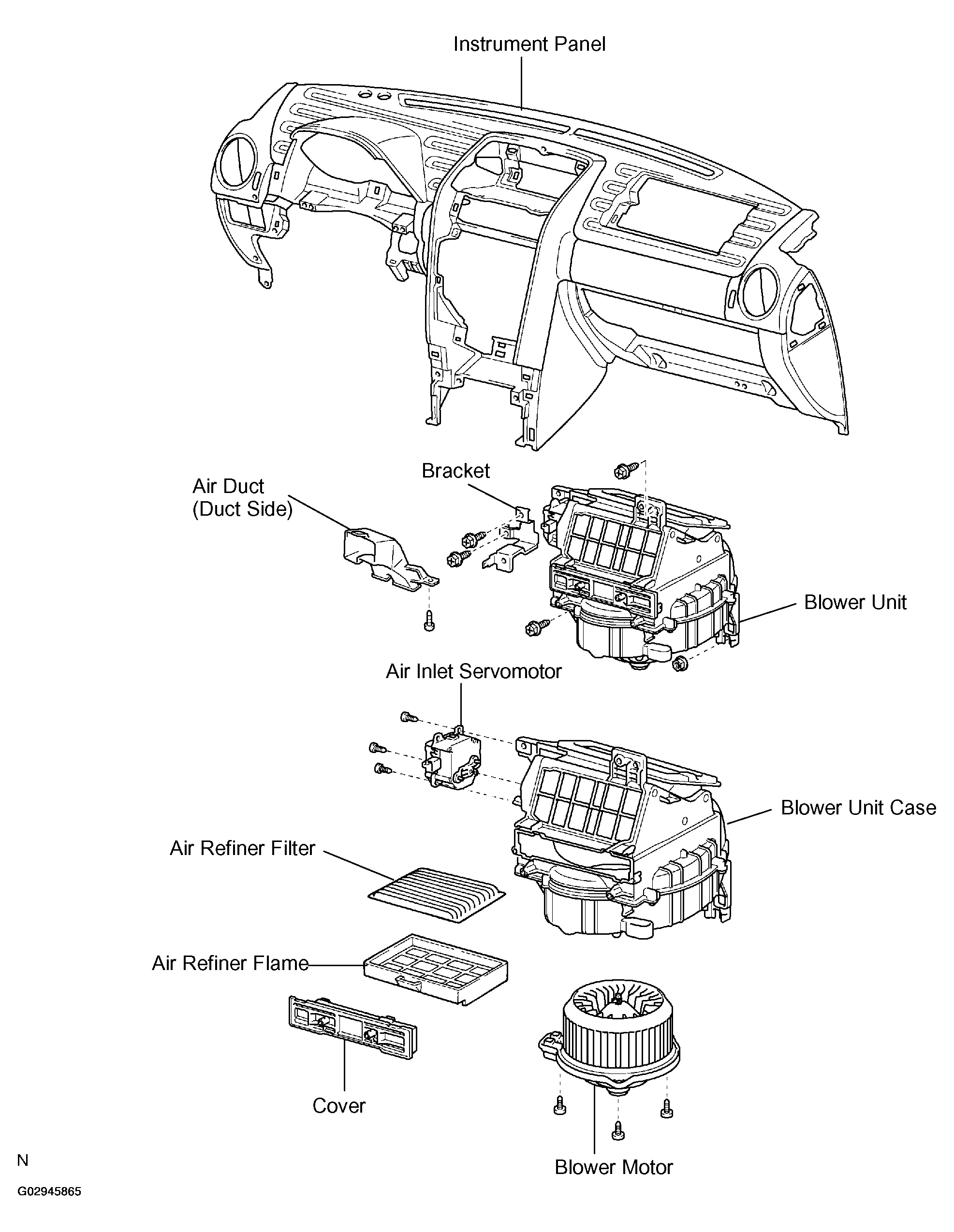

Fig 1: Identifying Component Location Of Blower Unit

G02945865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
