DTC P2118: Throttle Actuator Control Motor Current Range/Performance: Wiring Diagram

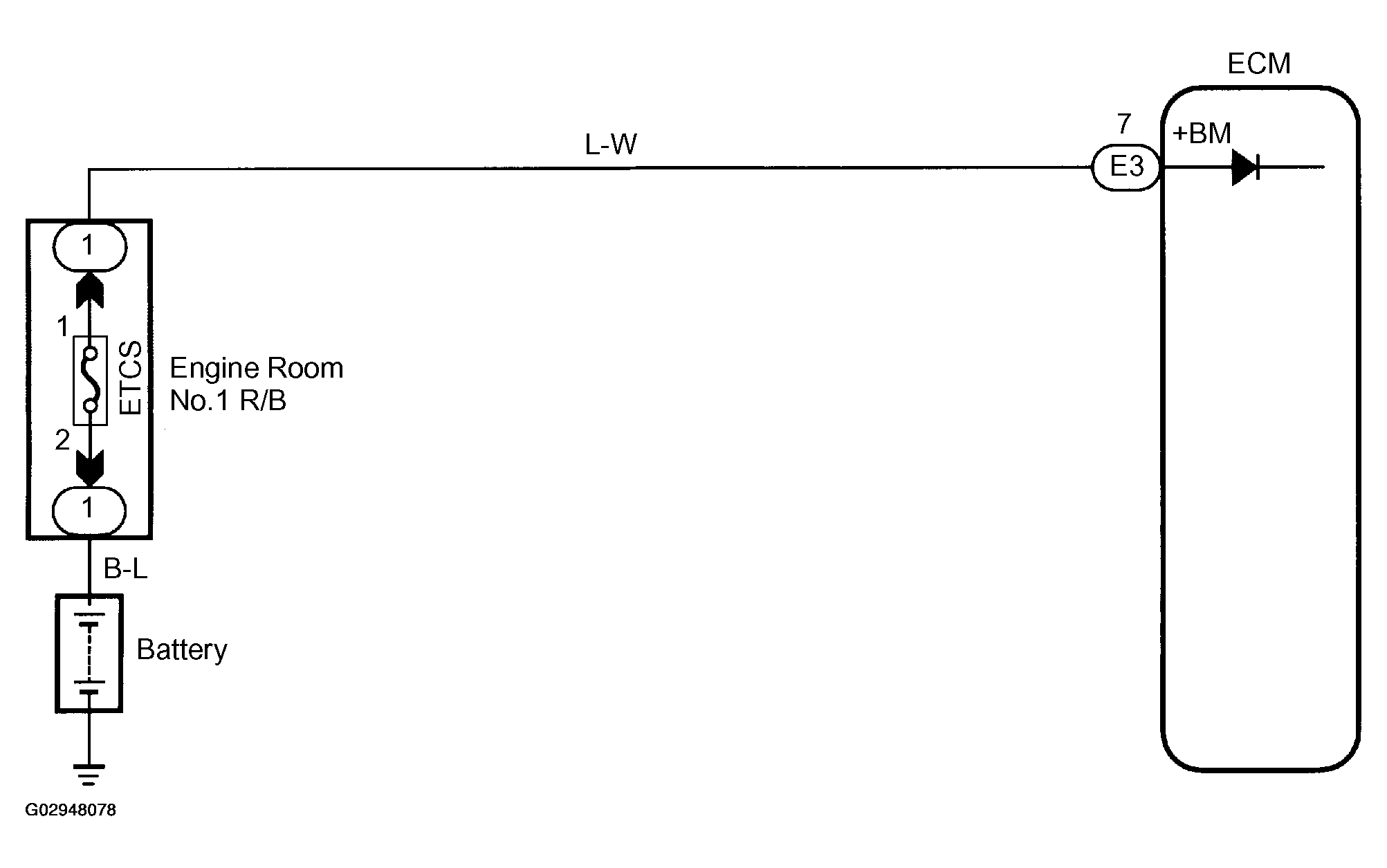

Fig 1: Wiring Diagram - DTC P2118 Throttle Actuator Control Motor Current
G02948078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
