DTC P0441, P0446: Evaporative Emission Control System Incorrect Purge Flow/Vent Control Circuit: Wiring Diagram

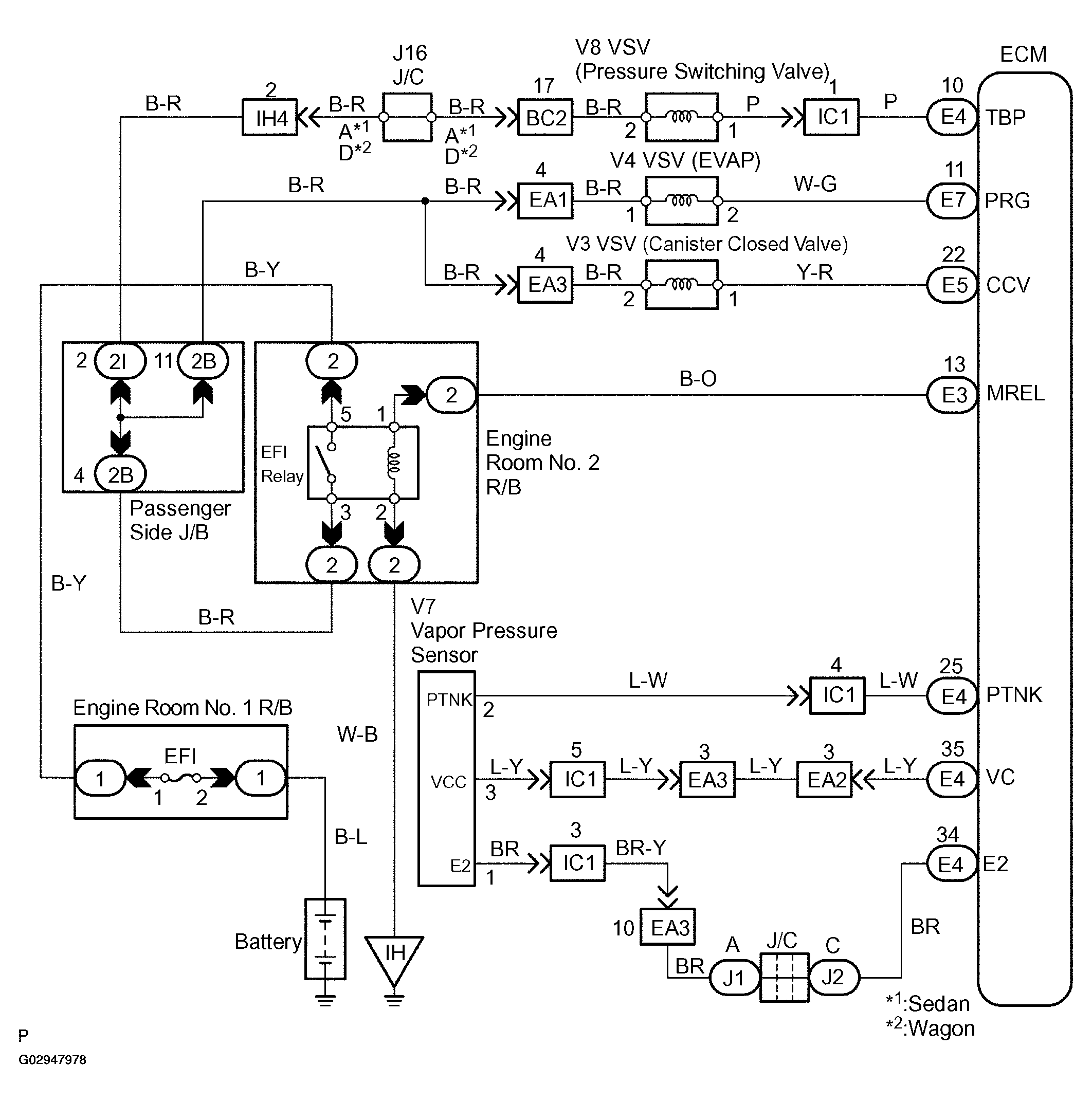

Fig 1: Wiring Diagram - DTC P0441 Evaporative Emission Control System Incorrect Purge Flow
G02947978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
