Power Window Switch Circuit: Wiring Diagram

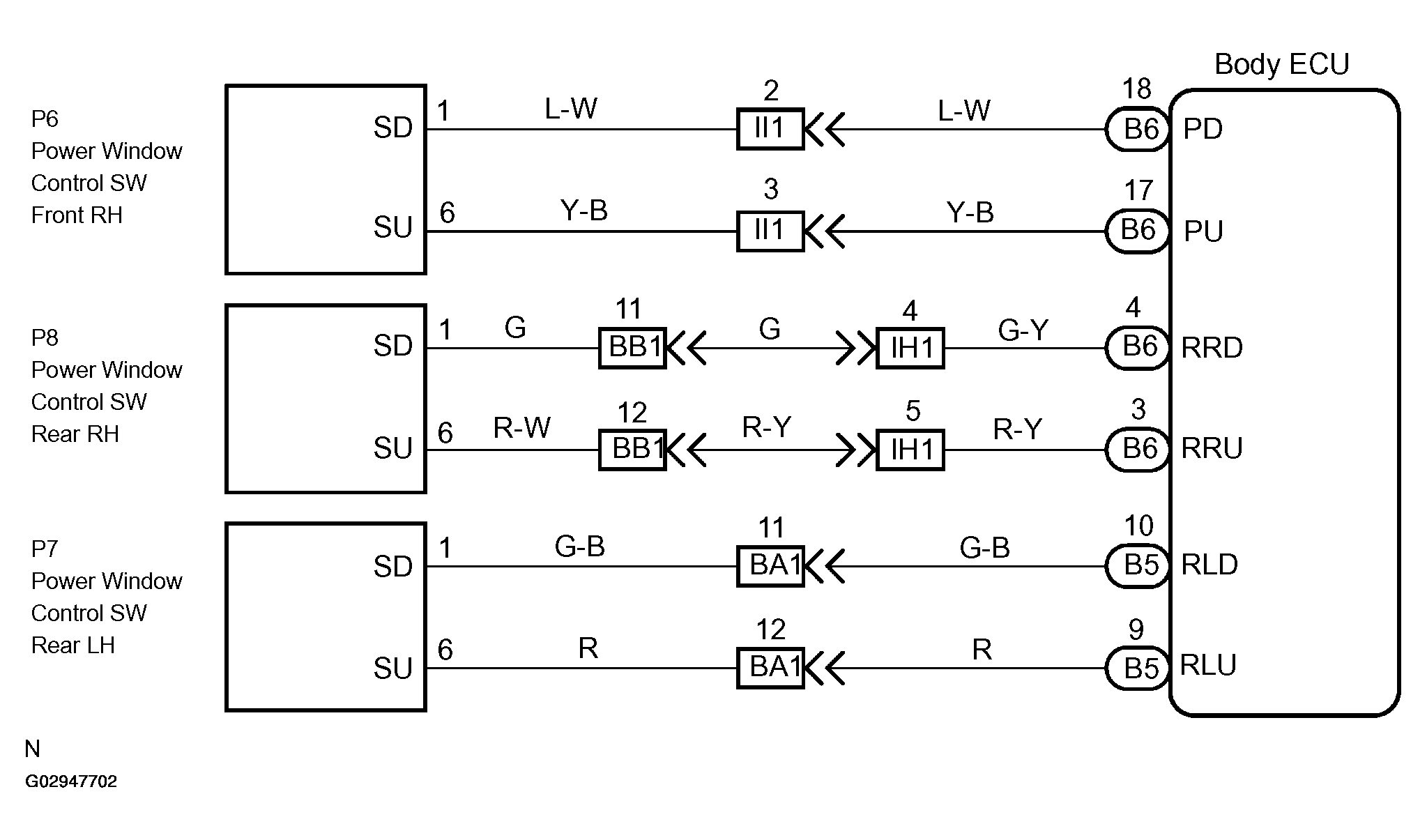

Fig 1: Power Window Switch Circuit - Wiring Diagram

G02947702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
