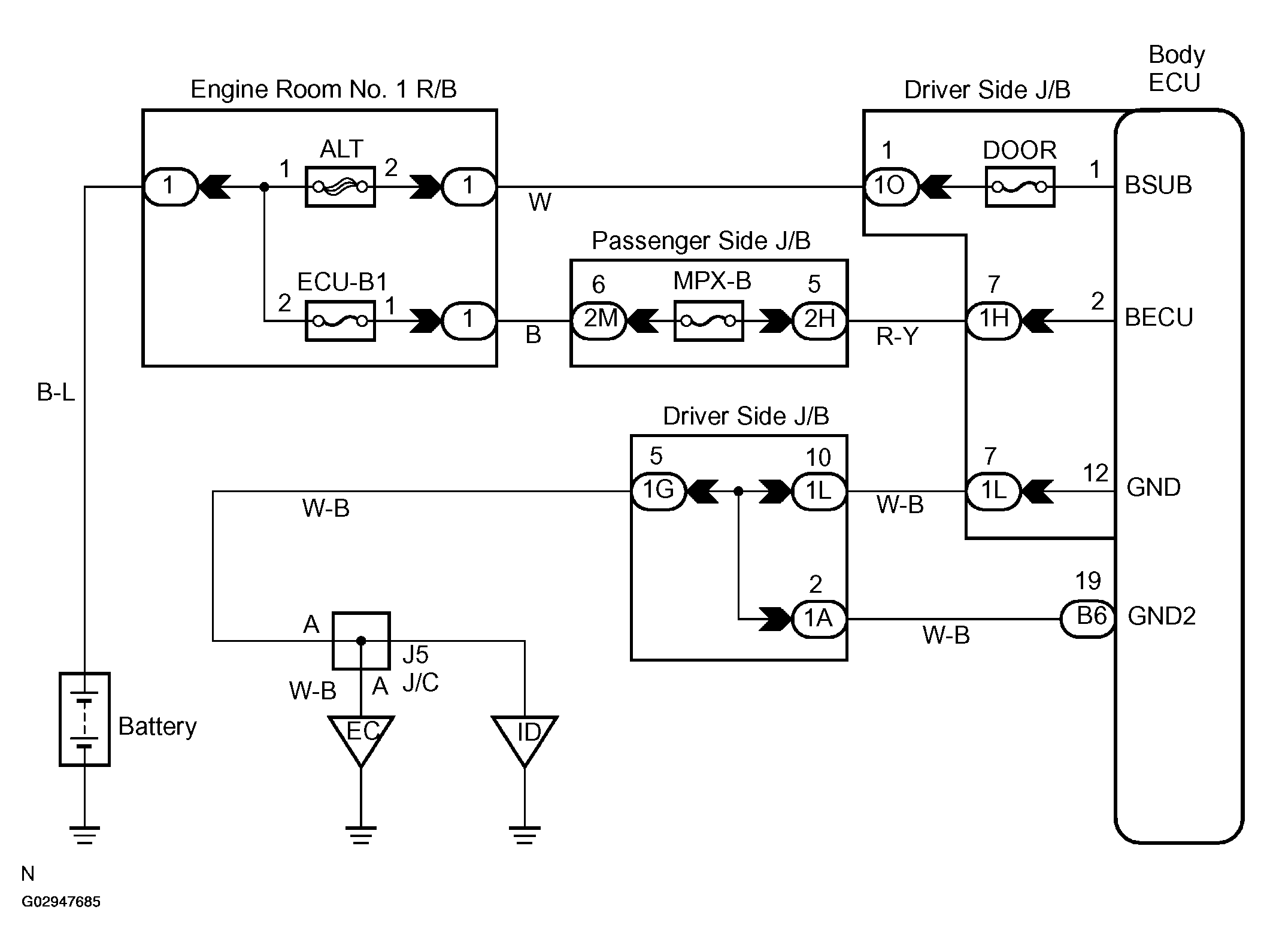

Home >> Lexus >> 2005 >> IS 300 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Body Control System - Diagnostics >> Circuit Inspection >> Power Source Circuit >> Wiring Diagram
