Key Unlock Warning Switch Circuit: Wiring Diagram

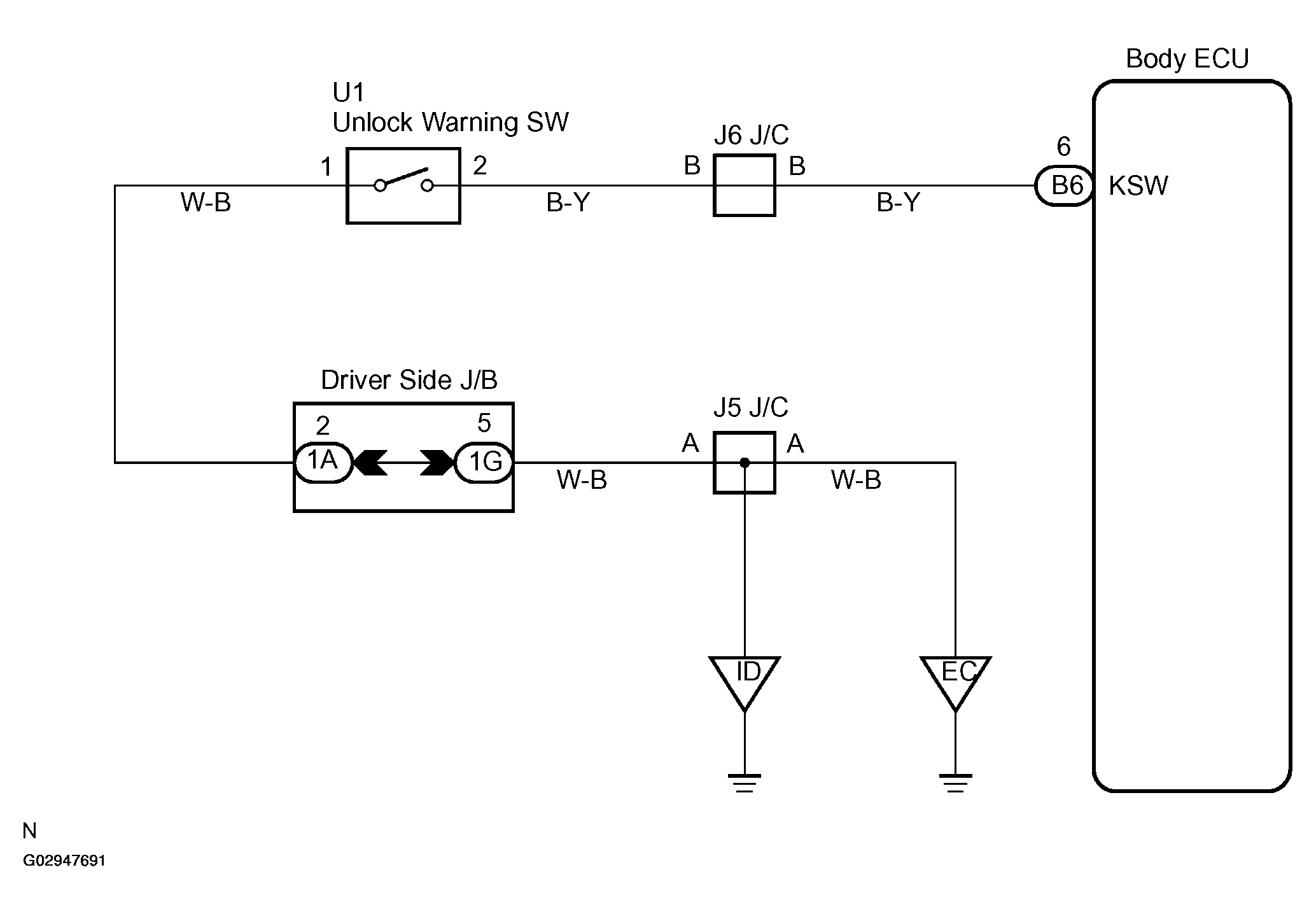

Fig 1: Key Unlock Warning Switch Circuit - Wiring Diagram

G02947691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
