Driver Buckle Switch Circuit: Wiring Diagram

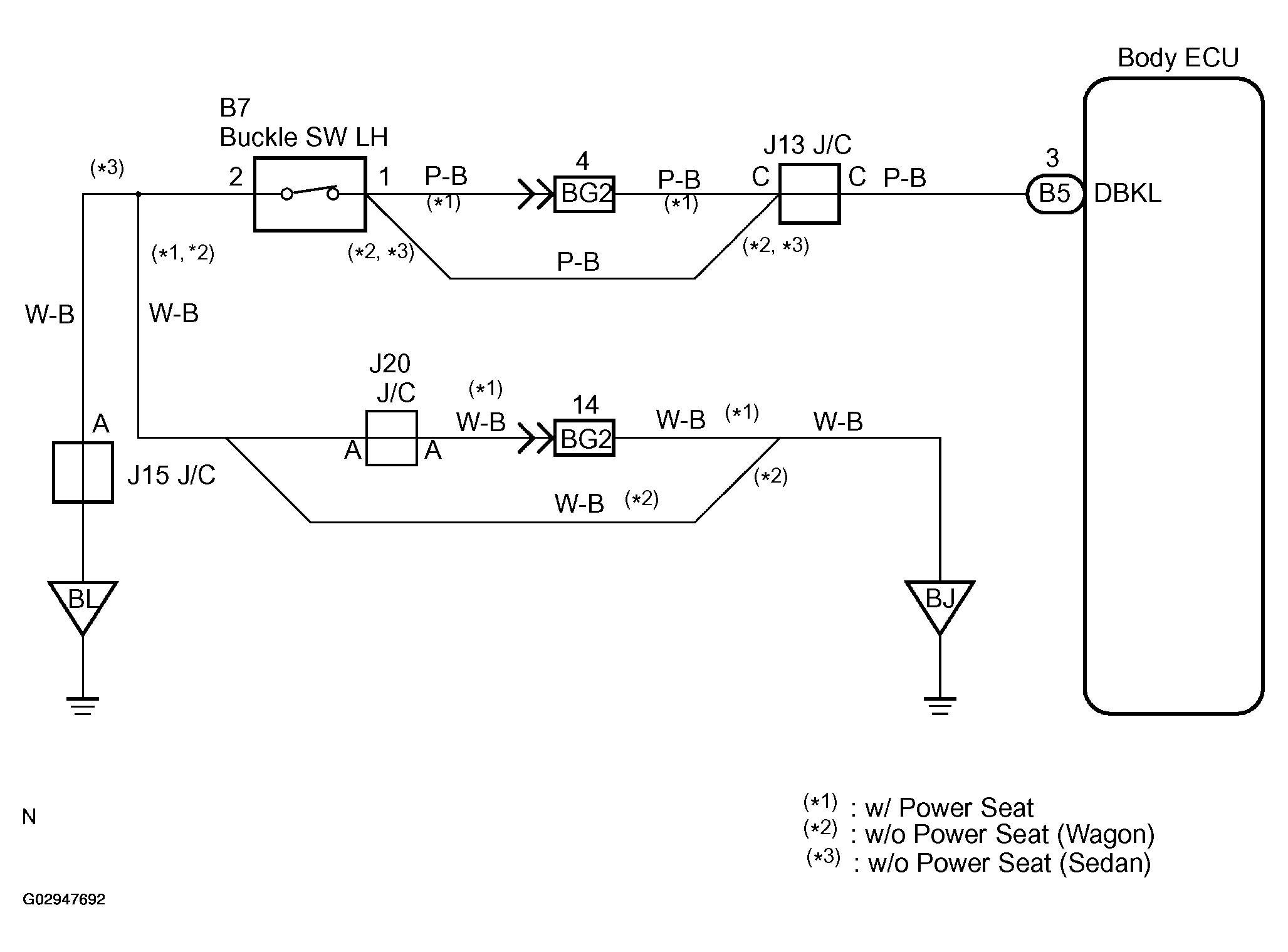

Fig 1: Driver Buckle Switch Circuit - Wiring Diagram

G02947692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
