Door Unlock Detection Switch Circuit: Wiring Diagram

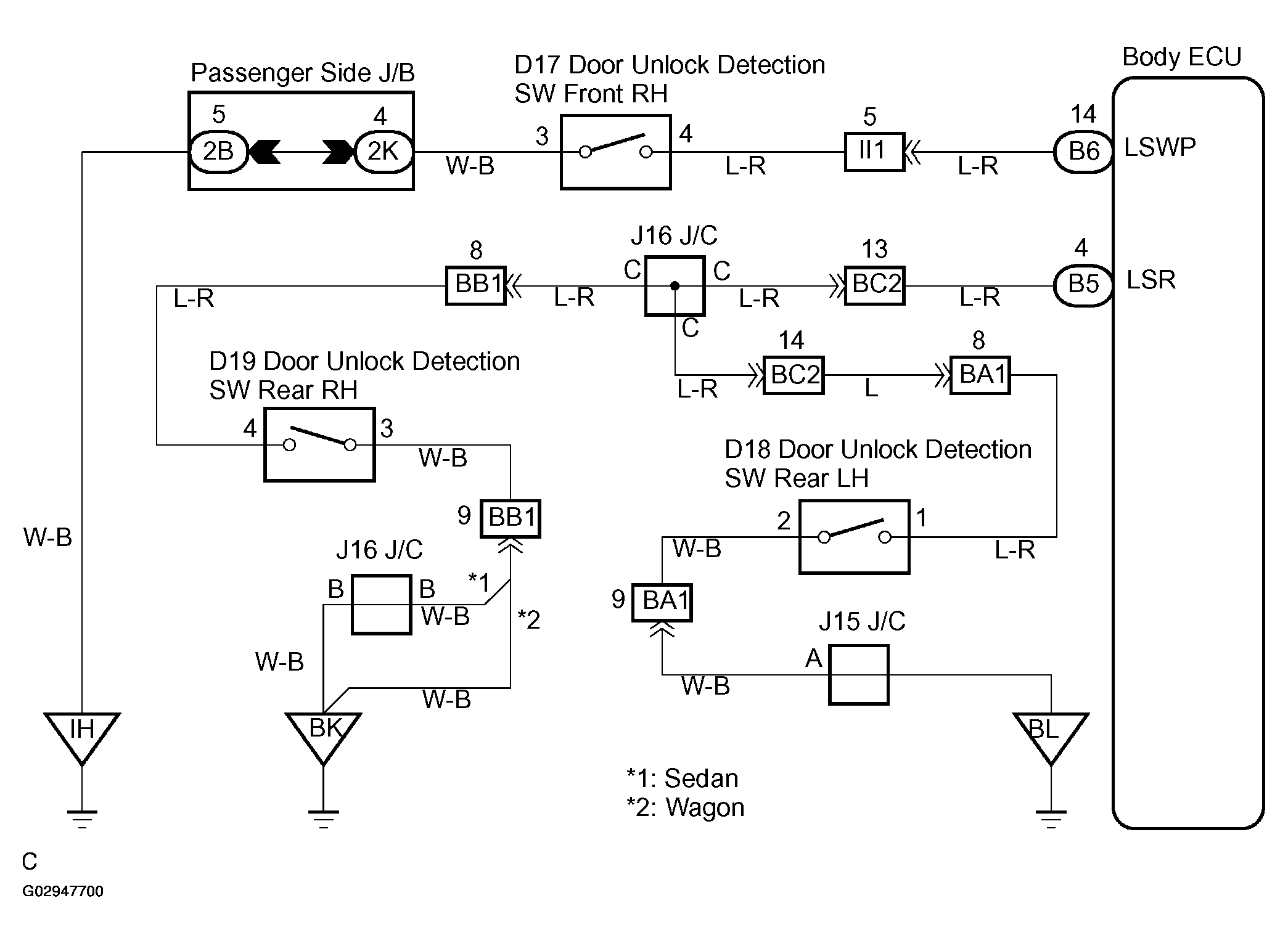

Fig 1: Door Unlock Detection Switch Circuit - Wiring Diagram

G02947700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
