Cruise Control Switch Circuit: Wiring Diagram

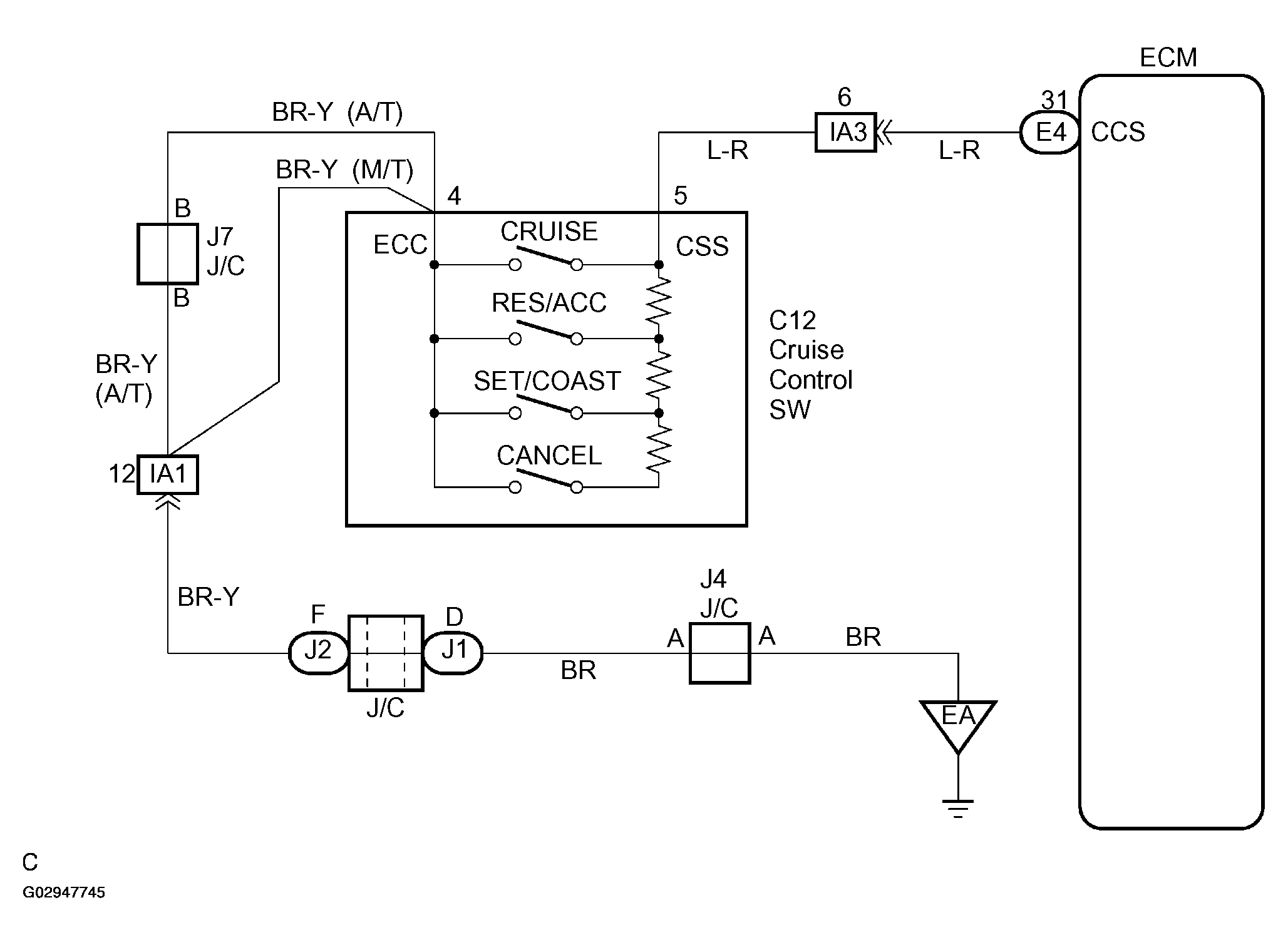

Fig 1: Cruise Control Switch Circuit - Wiring Diagram

G02947745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
