Transmission Shift Switch Circuit: Wiring Diagram

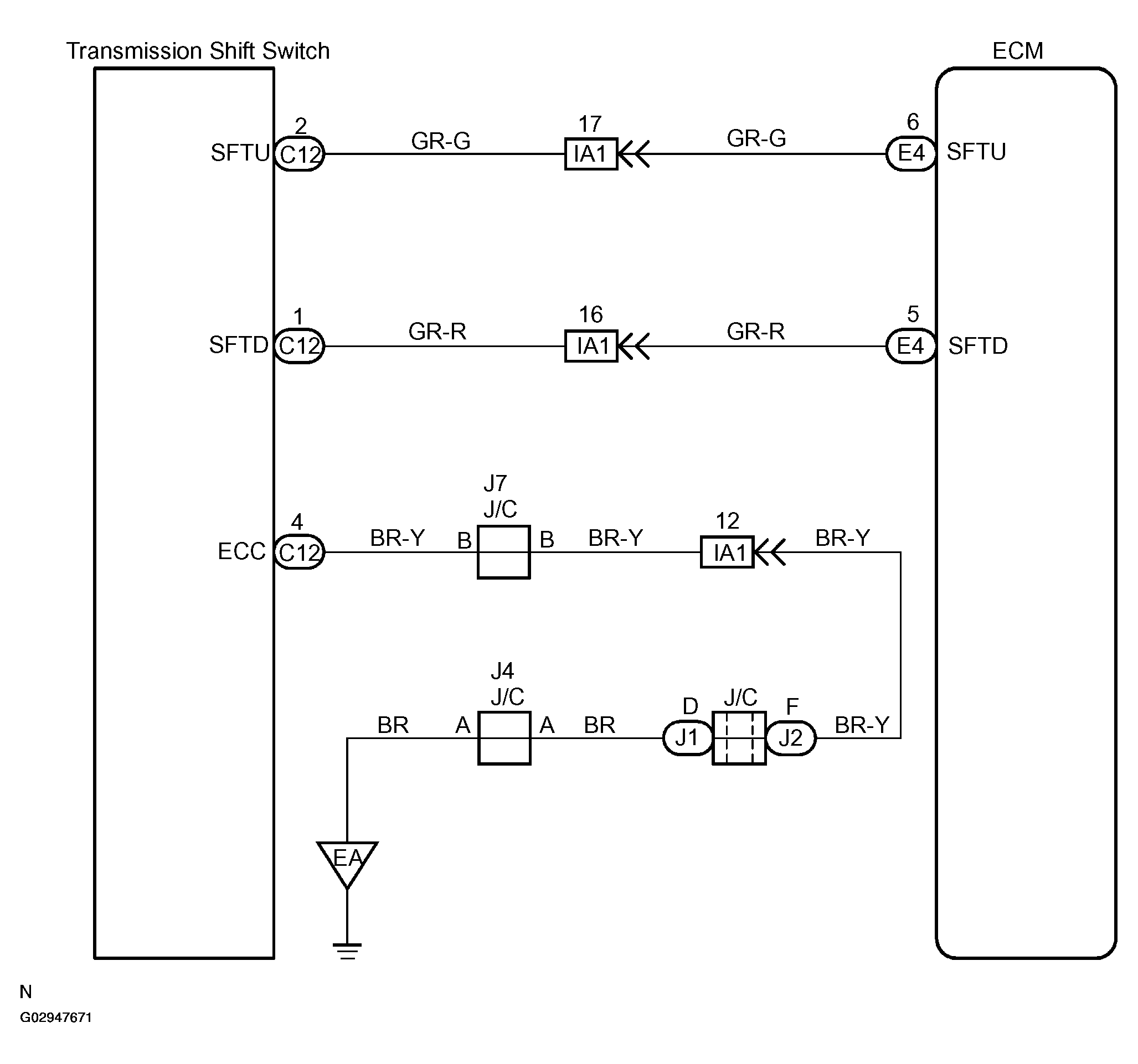

Fig 1: Wiring Diagram - Transmission Shift Switch Circuit

G02947671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
