Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

POWER WINDOW MASTER SWITCH:

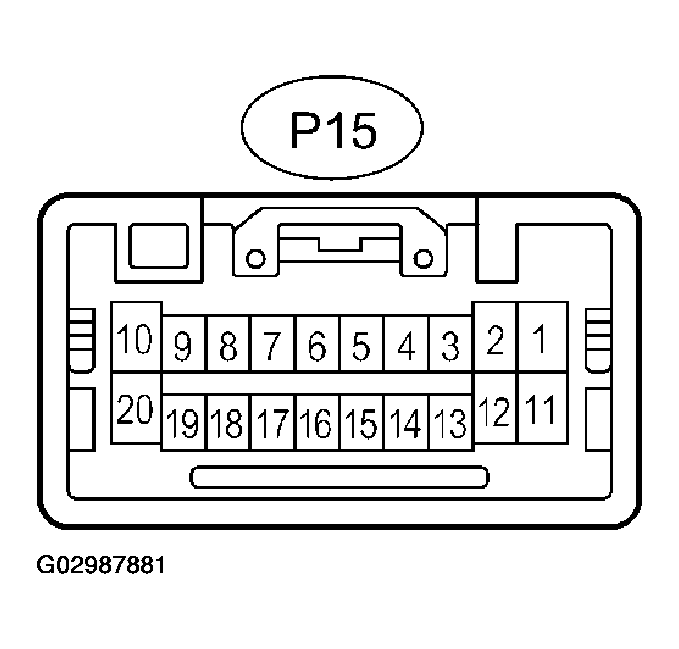

Fig 1: Identifying ECU Terminals (Power Window Master Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

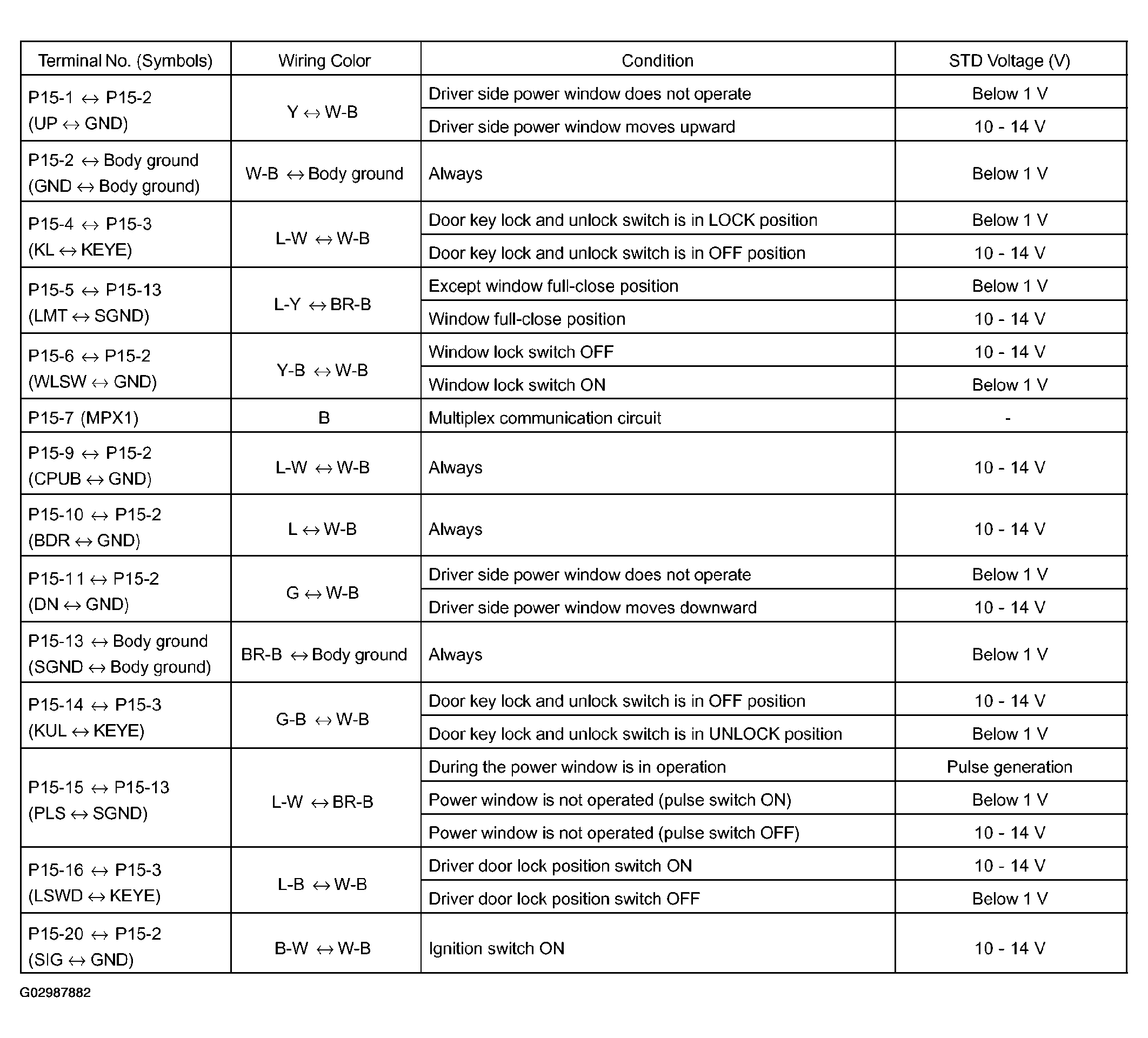

Fig 2: Power Window Master Switch Terminals Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

EXCEPT POWER WINDOW MASTER SWITCH:

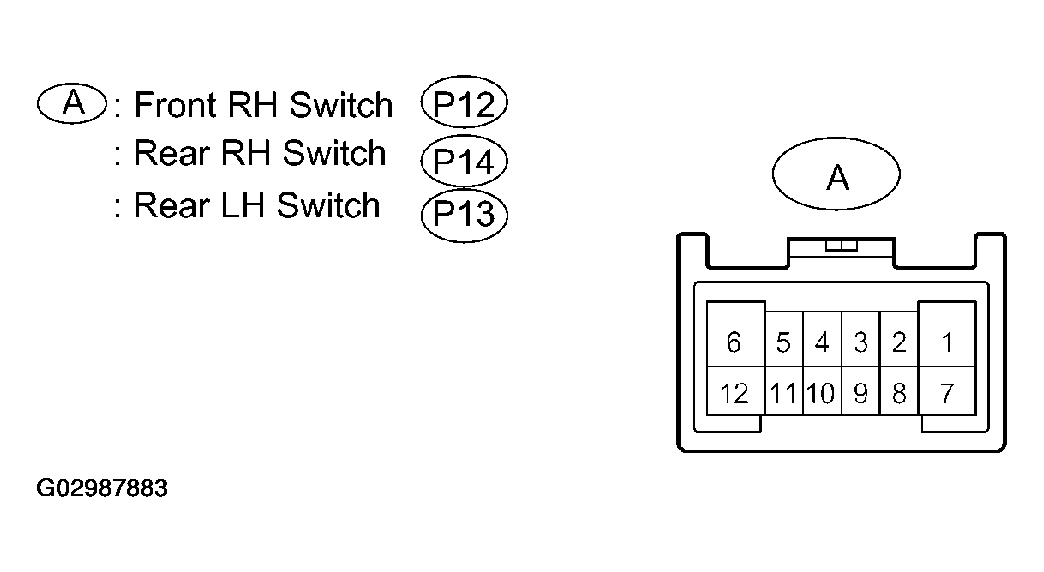

Fig 3: Identifying ECU Terminals (Except Power Window Master Switch)

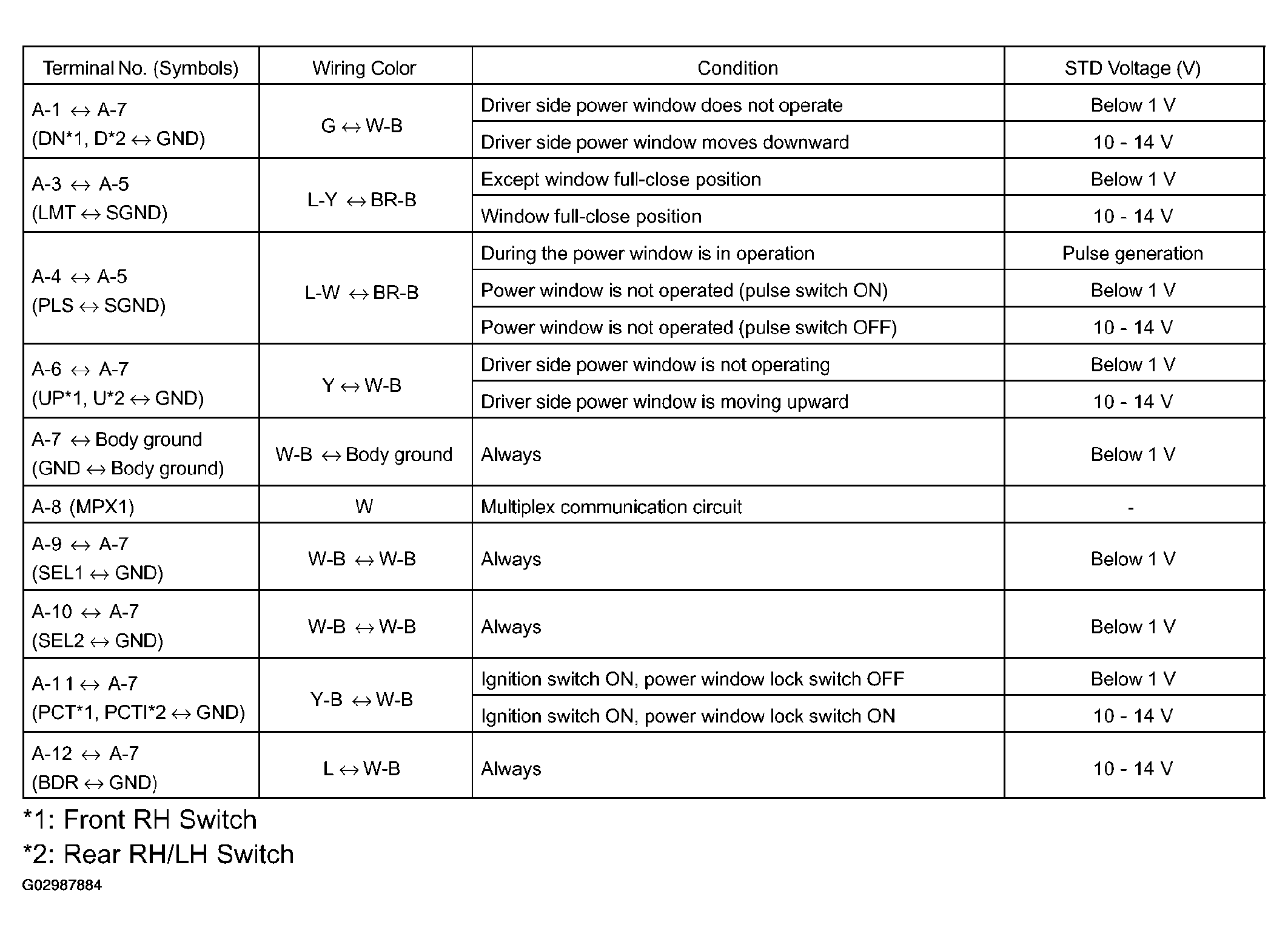

Fig 4: Except Power Window Master Switch Terminals Condition Chart
