Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check ECU-IG1 and AM1 fuse.
    1. NG: Check for short in all the harness and components connected to ECU-IG1 and AM1 fuse, and repair them.
    2. OK: Go to Next Step.
  2. Check voltage between terminal IG of sliding roof gear assembly with ECU connector and body ground.

    PREPARATION:

    Remove sliding roof gear assembly with ECU with connectors being connected.

    CHECK:

    Measure voltage between terminal IG of sliding roof ECU connector and body ground when ignition switch is ON and OFF.

    OK:

    VOLTAGE REFERENCE

    Ignition switch Voltage
    ON 10 - 14 V
    OFF 0 V

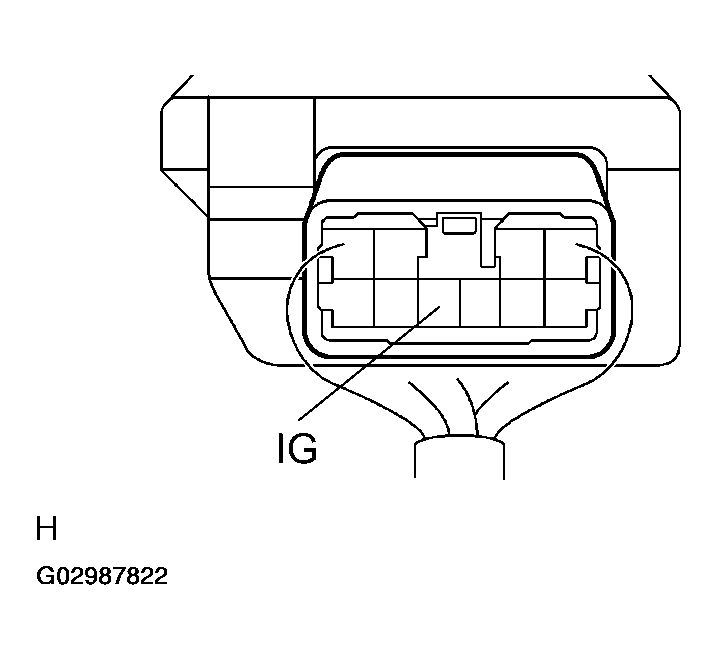

    Fig 1: Checking Voltage Between Terminal IG Of ECU Connector And Body Ground
    G02987822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Proceed to next circuit inspection shown in problem symptom table (See  PROBLEM SYMPTOMS TABLE  ).
    2. NG: Repair or replace harness or connector between sliding roof gear assembly with ECU and battery.
