Memory Switch Circuit: Wiring Diagram

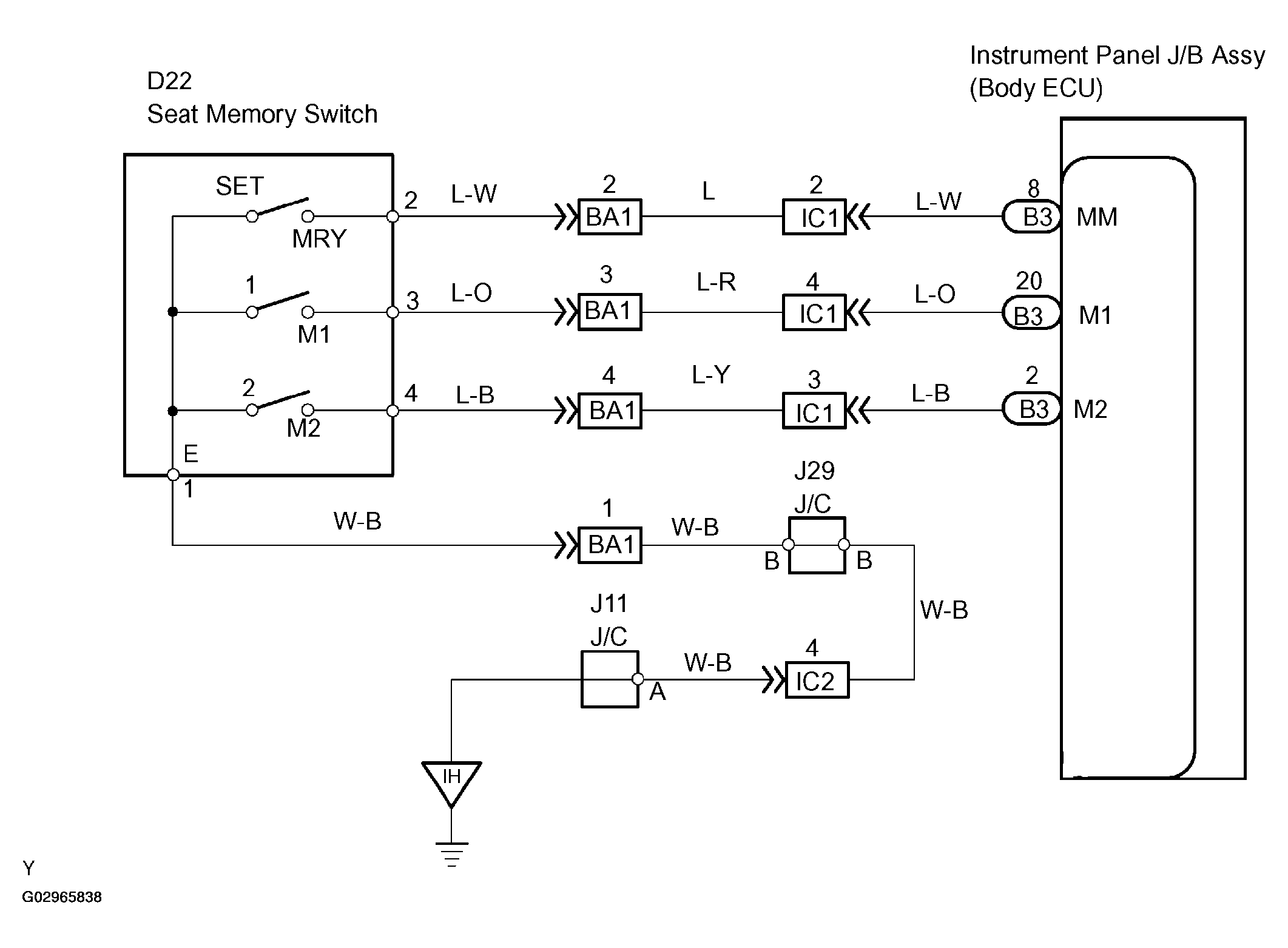

Fig 1: Memory Switch Circuit Wiring Diagram

G02965838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
