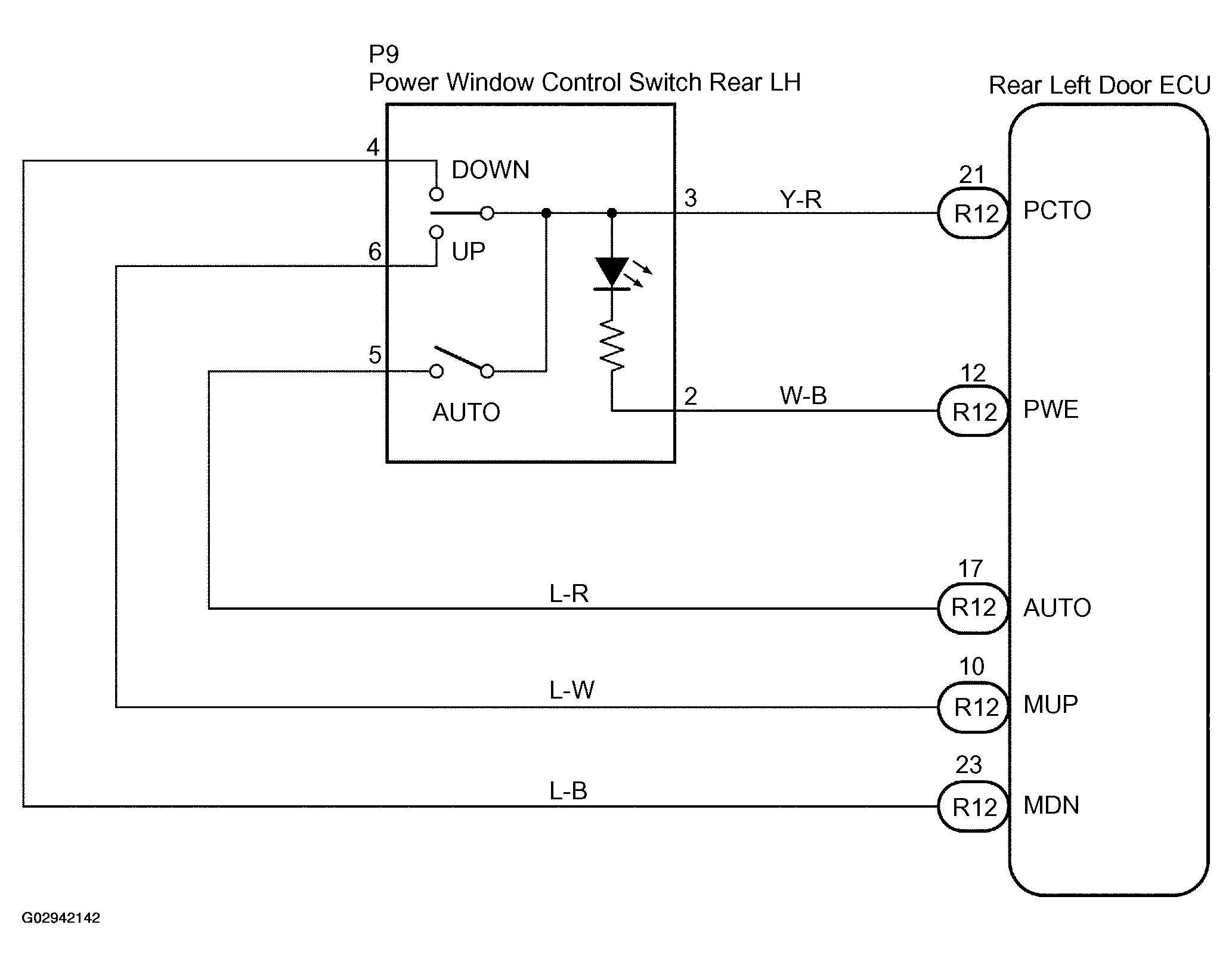

Power Window Switch Circuit: Wiring Diagram

Fig 1: Power Window Switch Circuit Wiring Diagram

G02942142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
