Power source circuit: Wiring Diagram

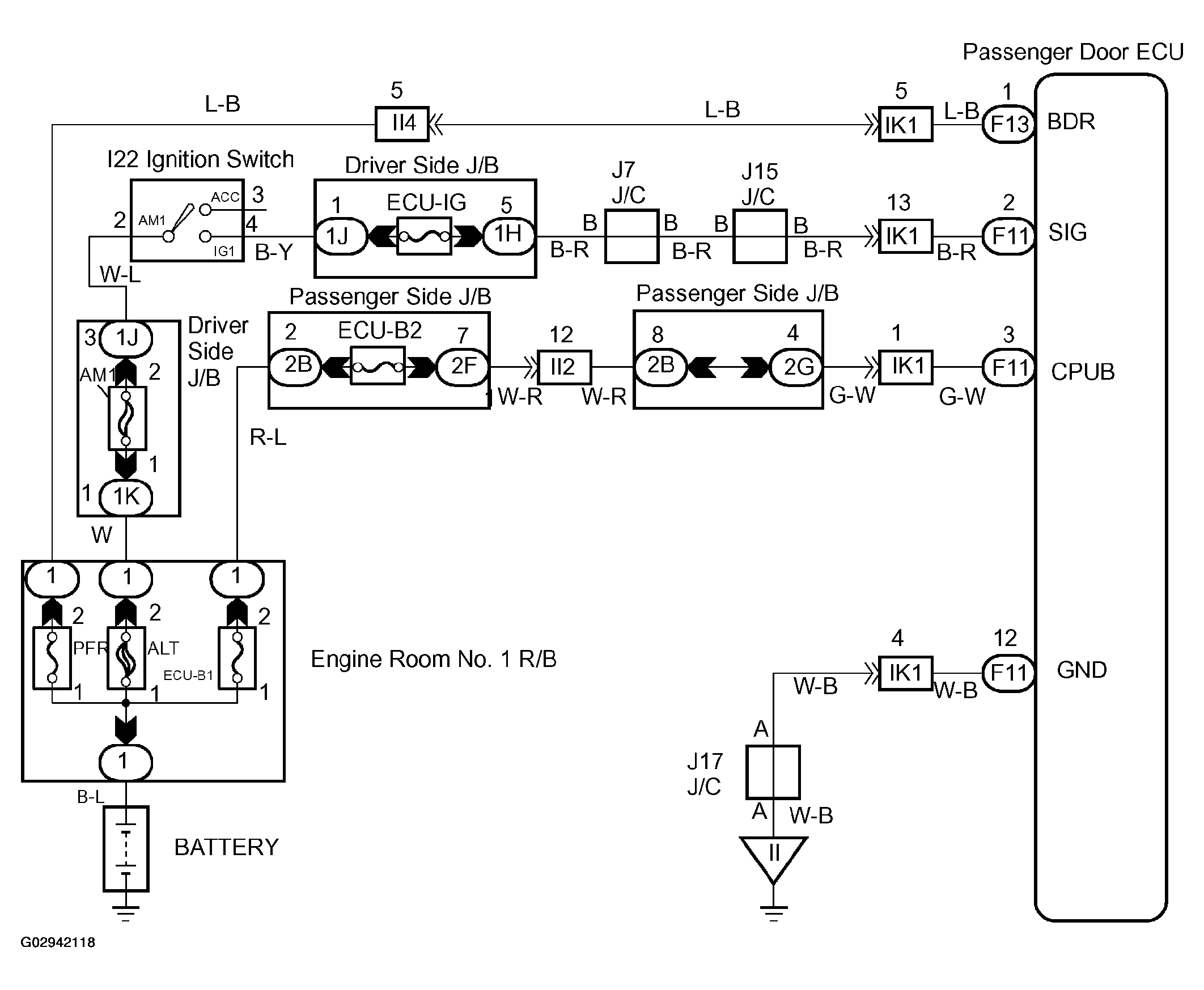

Fig 1: Passenger Door Control System - Circuit Diagram

G02942118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
