Power Seat Control Switch Circuit: Wiring Diagram

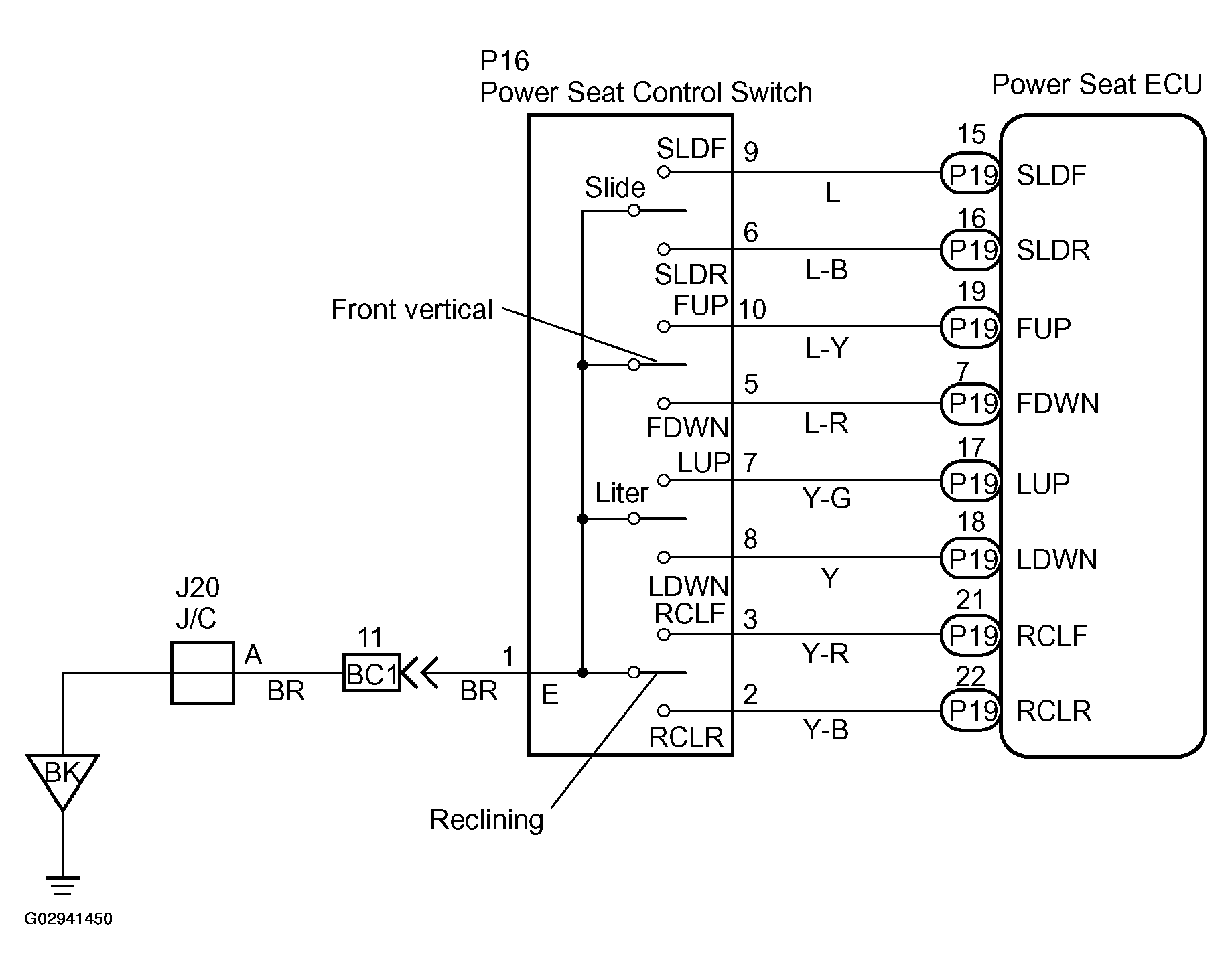

Fig 1: Power Seat Control Switch Circuit - Wiring Diagram

G02941450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
