ECU Power Source Circuit: Wiring Diagram

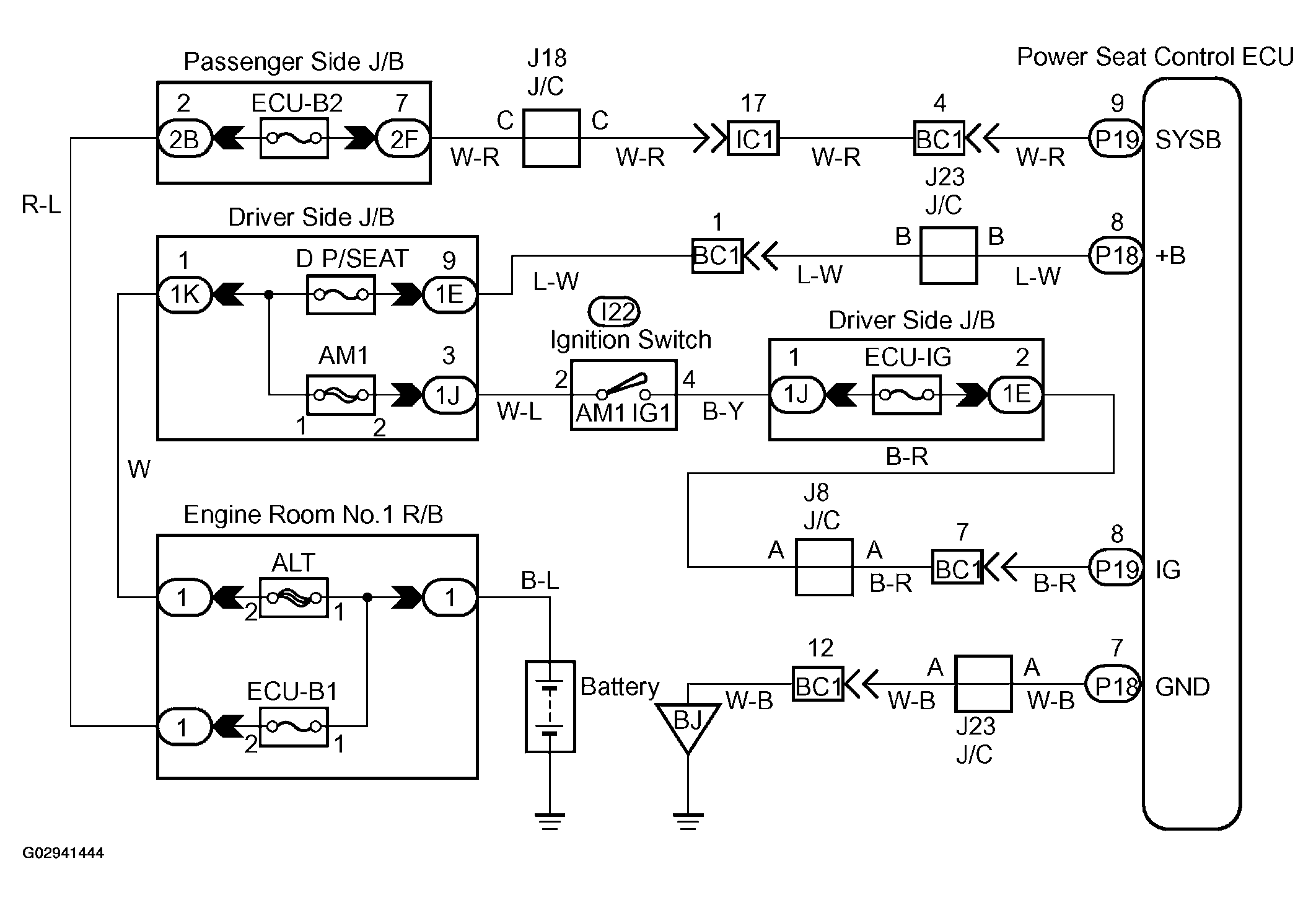

Fig 1: Power Seat Control System - Wiring Diagram

G02941444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
