Control Switch Circuit (Cruise Control Switch): Wiring Diagram

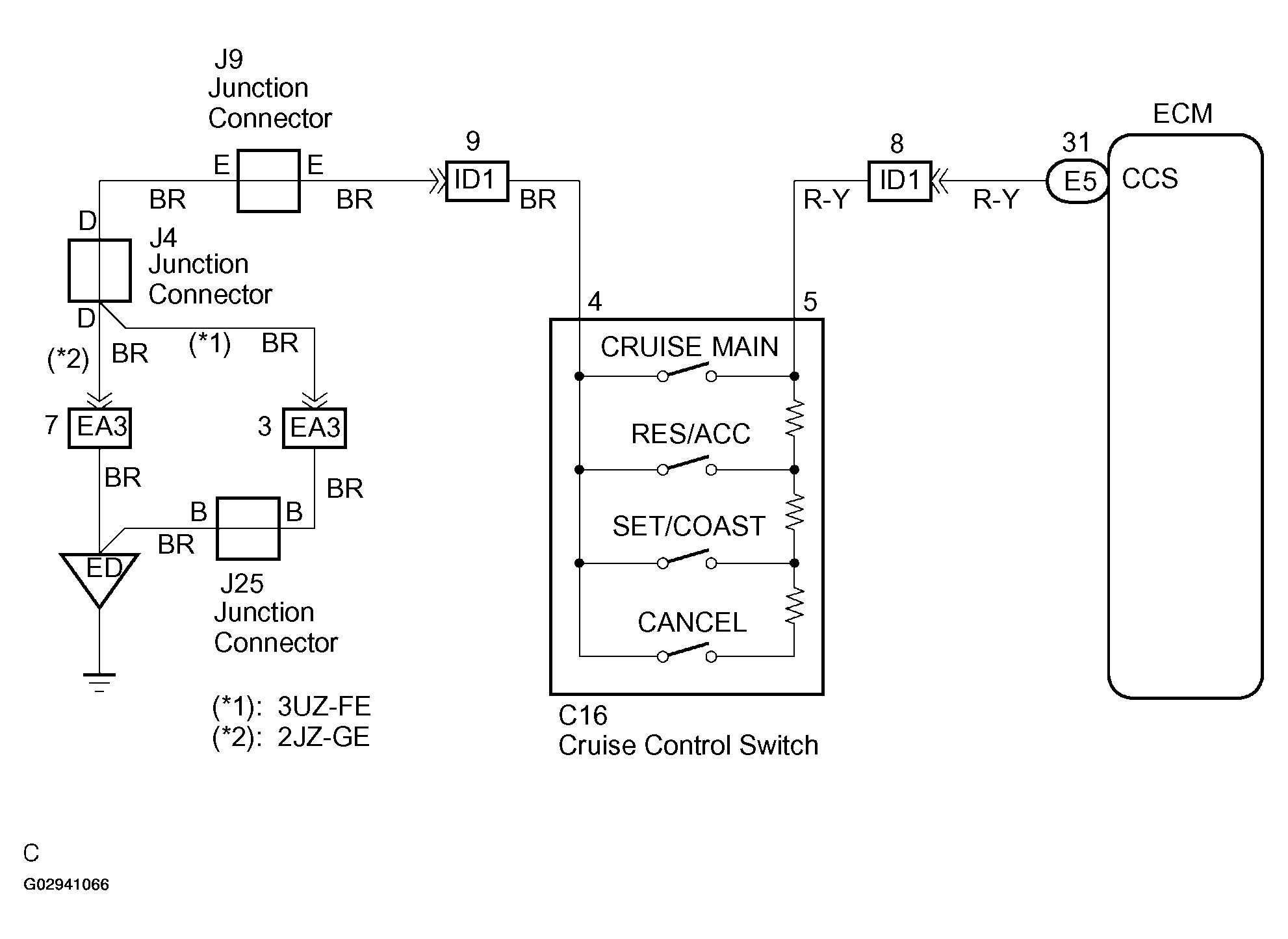

Fig 1: Wiring Diagram - Control Switch Circuit (Cruise Control Switch)

G02941066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
