Power Source Circuit: Wiring Diagram

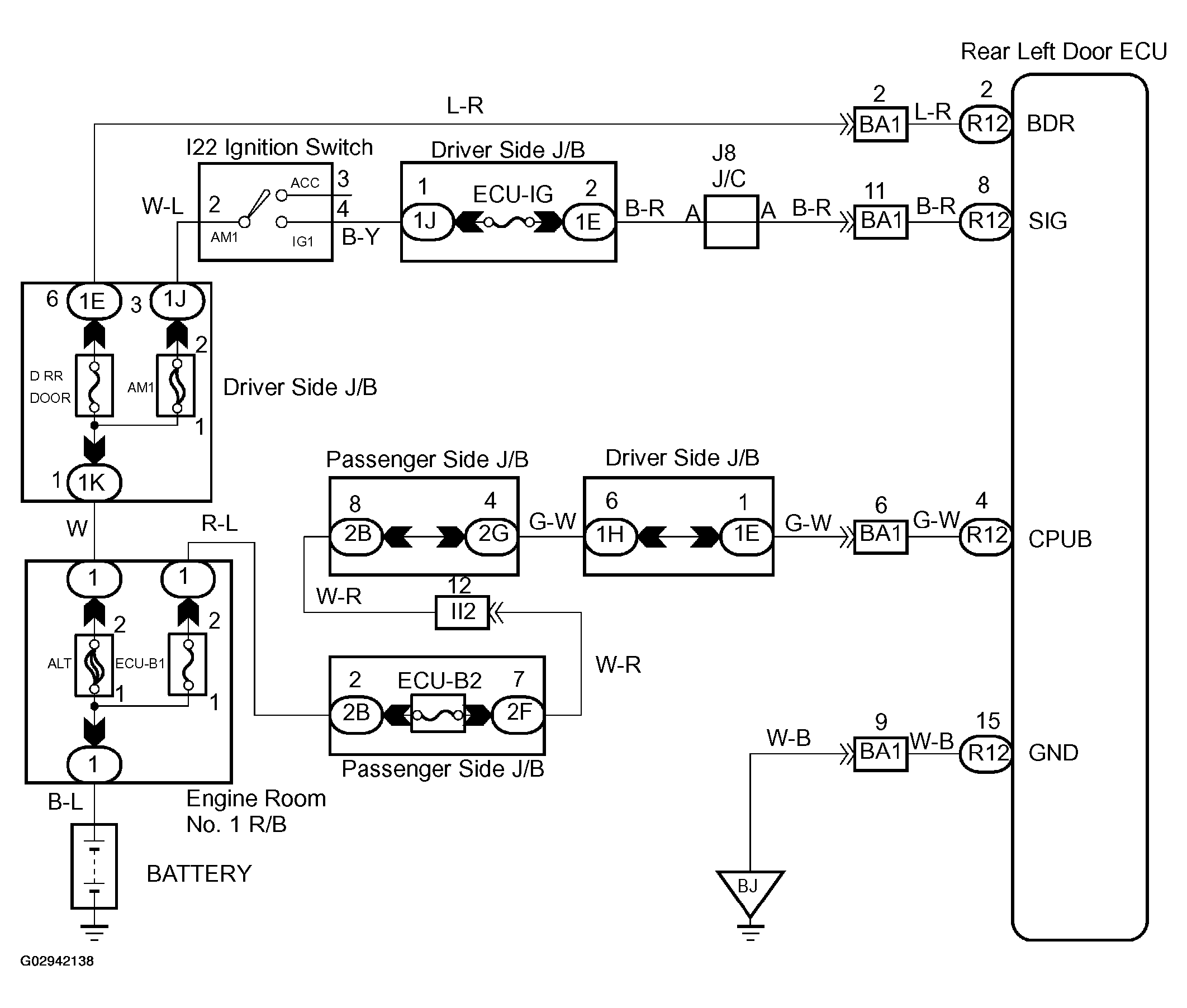

Fig 1: Rear Left Door Control System Circuit Wiring Diagram

G02942138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
