Power Window Regulator Switch Circuit (Rear LH Door): Wiring Diagram

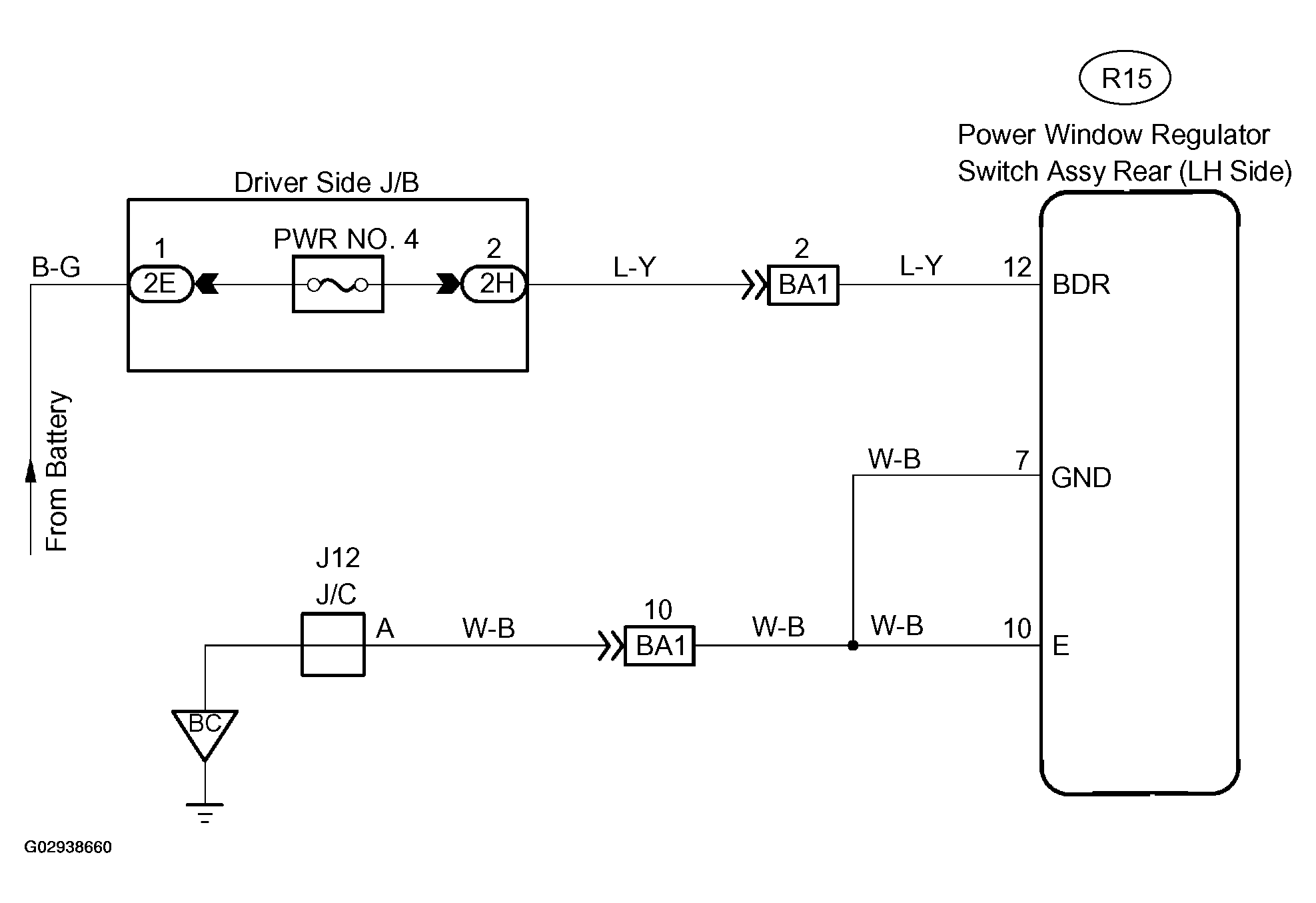

Fig 1: Wiring Diagram - Power Window Regulator Switch Circuit (Rear LH Door)

G02938660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
