Inspection Procedure

1. CHECK RADIO AND NAVIGATION ASSY
   1. Turn the ignition switch to the ACC position.
   2. Keep pressing the "DISC" eject switch for 5 seconds and check if the disc is ejected by forced ejection.

   OK: The disc is ejected.

   NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

   OK: Go To Next Step.

2. CHECK CD
   1. Check that the CD is not deformed or cracked.

   OK: No deformations or cracks appear on the CD.

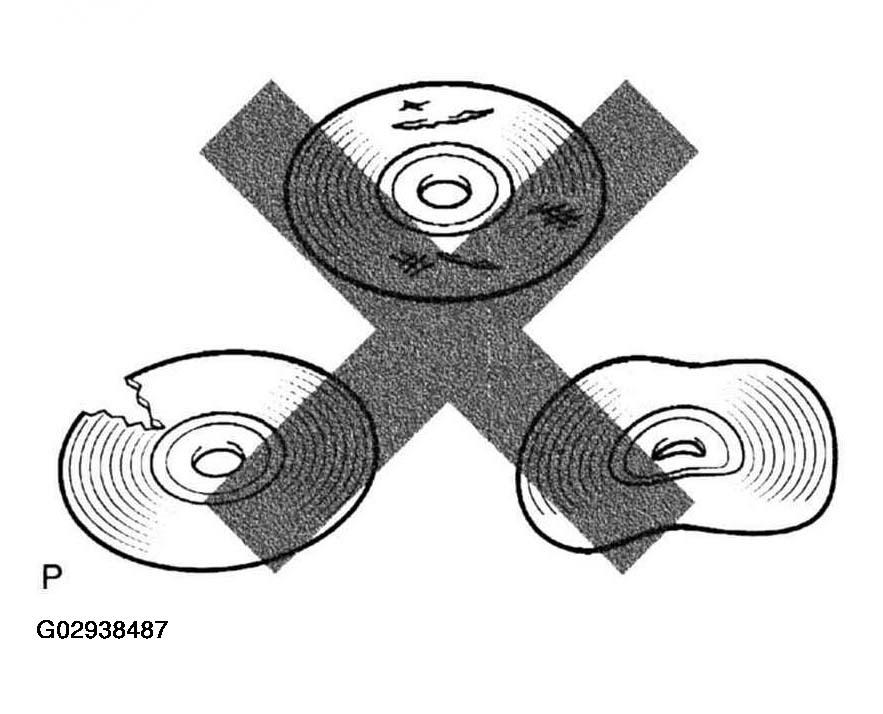

   Fig 1: Identifying Damage Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE CD

   OK: Go To Next Step.

3. CHECK RADIO AND NAVIGATION ASSY

1. Insert another CD and check if it is ejected.

OK: The disc is ejected.

NG: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )

OK: NORMAL OPERATION
