Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK TRANSPONDER KEY AMPLIFIER
    Fig 1: Identifying Transponder Key Amplifier
    G01444538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the T8 amplifier connector.
    2. Measure the resistance between the terminal of the wire harness side connector and body ground.

      Standard:

      Fig 2: Measuring Resistance Between Terminal Of Wire Harness Side Connector And Body Ground
      G01444539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the T8 amplifier connector.
    4. Measure the voltage and resistance between each terminal of the connector and body ground.

      Standard:

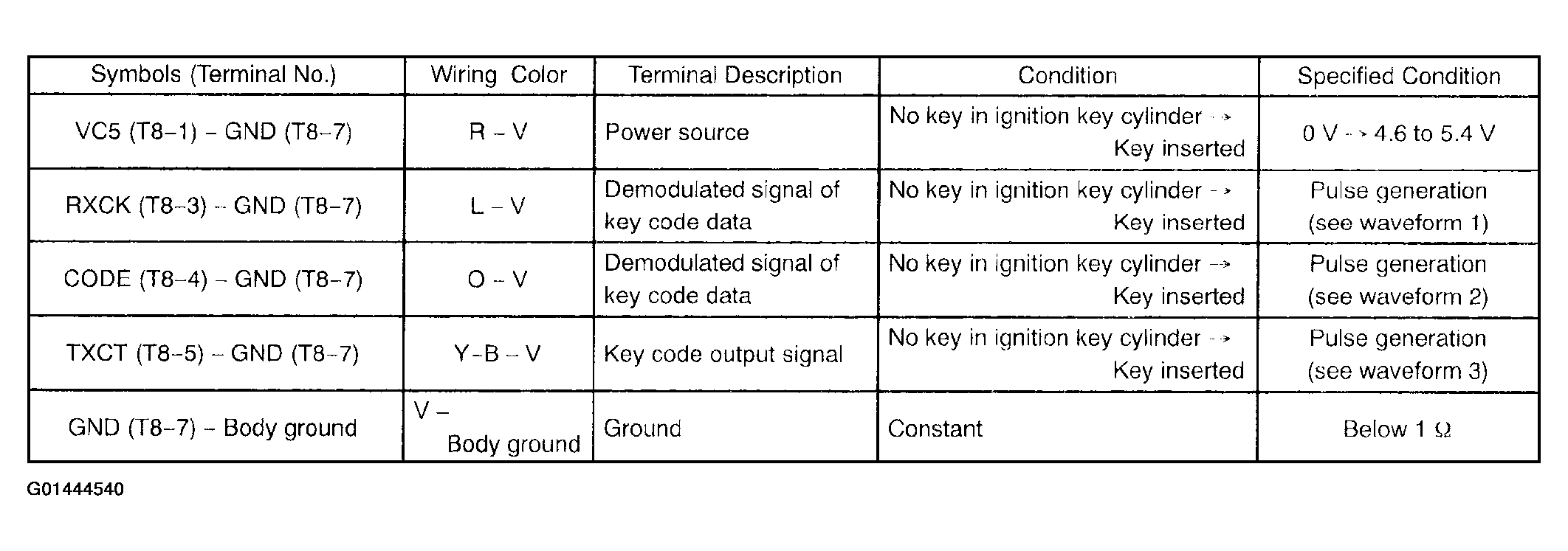

      Fig 3: Measuring Voltage And Resistance Between Each Terminal Of Connector And Body Ground
      G01444540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, the amplifier may have a malfunction.

    5. Inspect using an oscilloscope.

      Waveform 1 (Reference):

      Fig 4: Identifying Waveform 1
      G01444541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 5: Terminal Specification
      G01444542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Waveform 2 (Reference):

    Fig 6: Identifying Waveform 2 Graph
    G01444543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 7: Terminal Specification
    G01444544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Waveform 3 (Reference):

    Fig 8: Identifying Waveform 3
    G01444545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 9: Checking Steering Lock ECU
    G01444546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK STEERING LOCK ECU
    Fig 10: Checking Steering Lock ECU
    G01444547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S46 ECU connector.
    2. Measure the voltage and resistance between each terminal of the wire harness side connector and body ground.

      Standard:

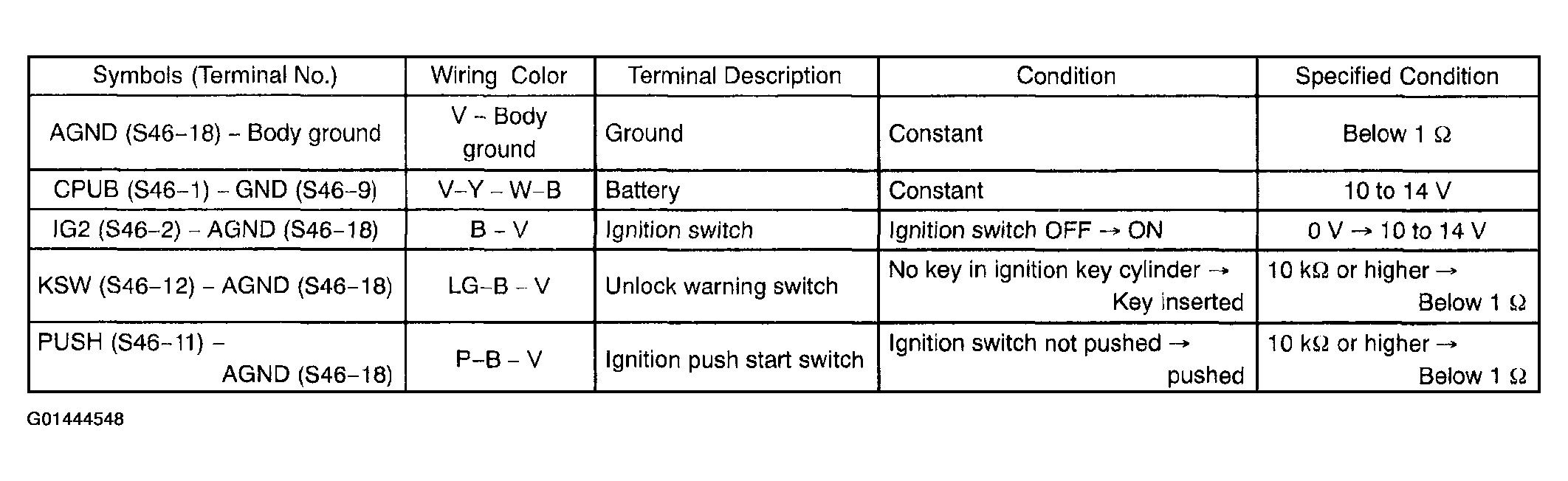

      Fig 11: Disconnecting S46 ECU Connector
      G01444548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the S46 ECU connector.
    4. Measure the voltage between each terminal of the connector

      Standard:

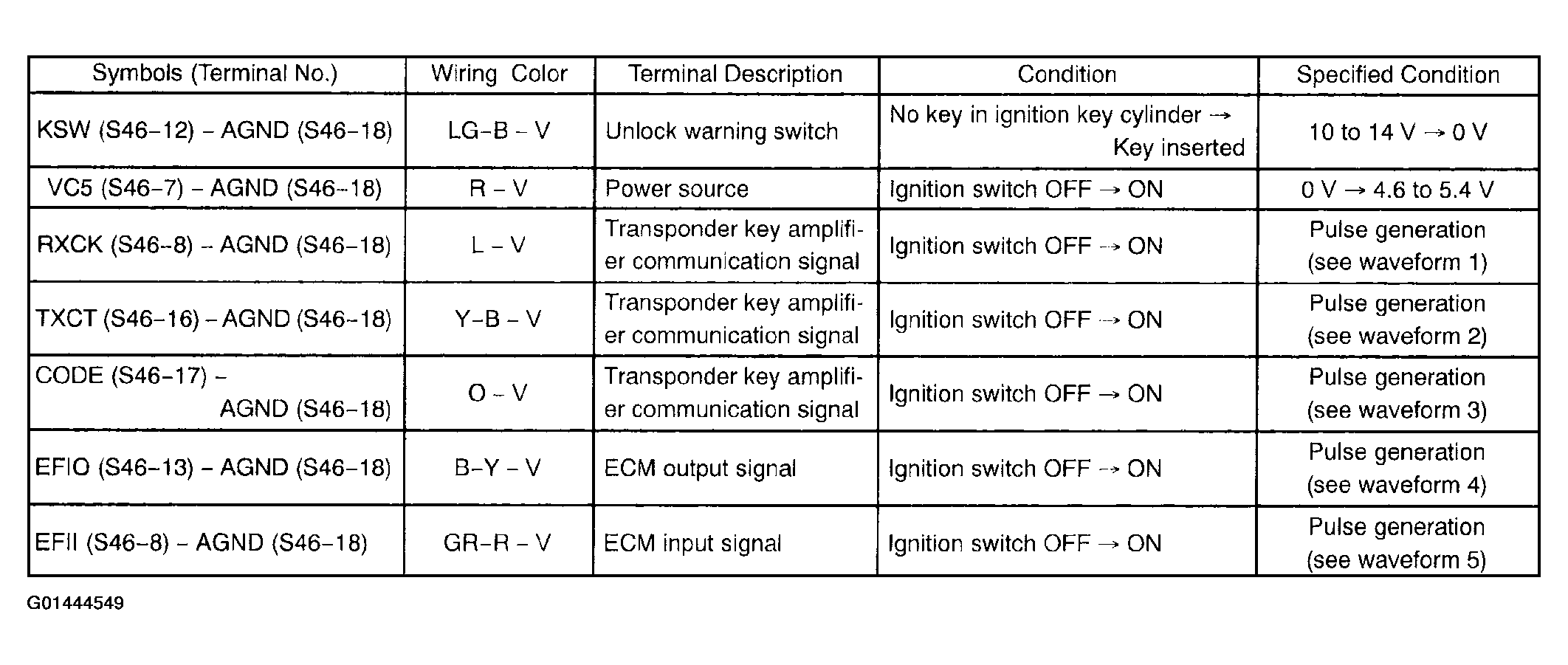

      Fig 12: Measuring Voltage Between Each Terminal Of Connector
      G01444549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, the ECU may have a malfunction.

    5. Inspect using an oscilloscope.

      Waveform 1 (Reference):

      Fig 13: Inspecting Using An Oscilloscope
      G01444550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

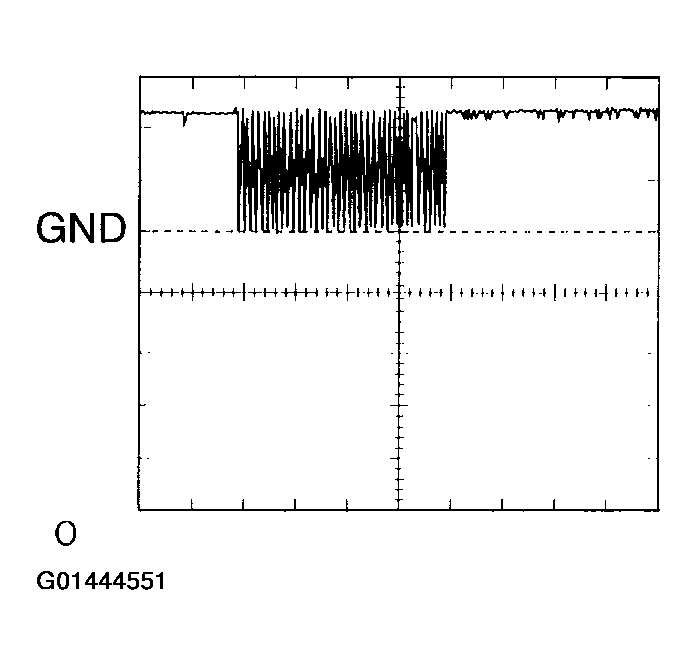

      Fig 14: Identifying Waveform 1
      G01444551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Waveform 2 (Reference):

      Fig 15: Identifying Waveform 2
      G01444552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 16: Identifying Waveform 3
      G01444553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Waveform 3 (Reference):

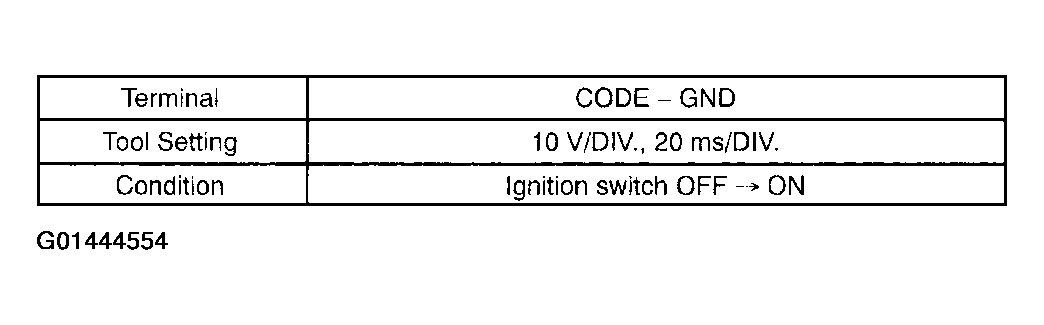

      Fig 17: Identifying Waveform 4
      G01444554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 18: Identifying Gnd Graph
      G01444555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Waveform 4 (Reference):

      Fig 19: Identifying Waveform 4
      G01444556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 20: Identifying Gnd Graph
      G01444557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Waveform 5 (Reference):

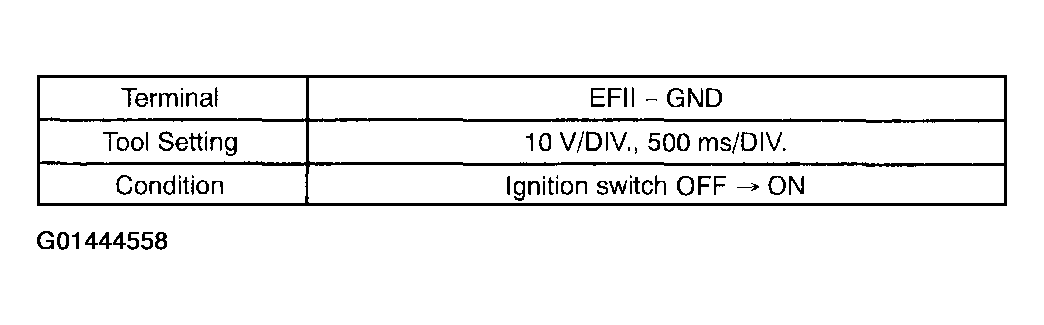

      Fig 21: Identifying Waveform 5
      G01444558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 22: Identifying Gnd Graph
      G01444559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK ECM

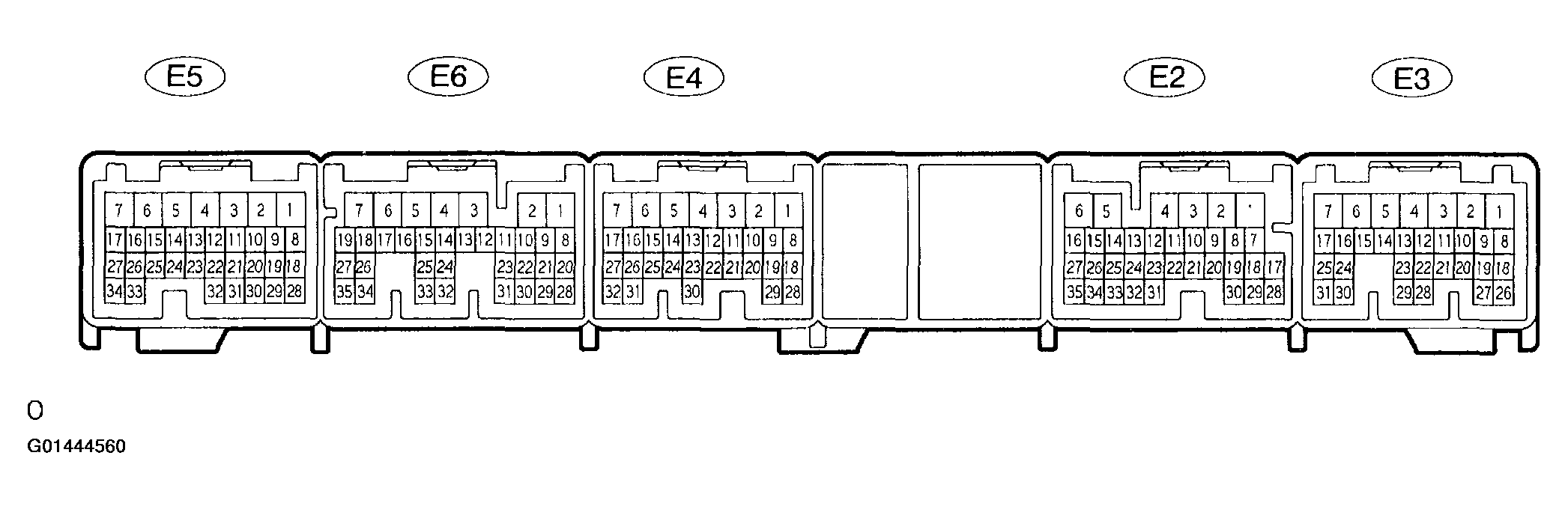

    Fig 23: Checking ECM
    G01444560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E2 and E4 ECM connectors.
    2. Measure the voltage and resistance between each terminal of the wire harness side connectors and body ground.

      Standard:

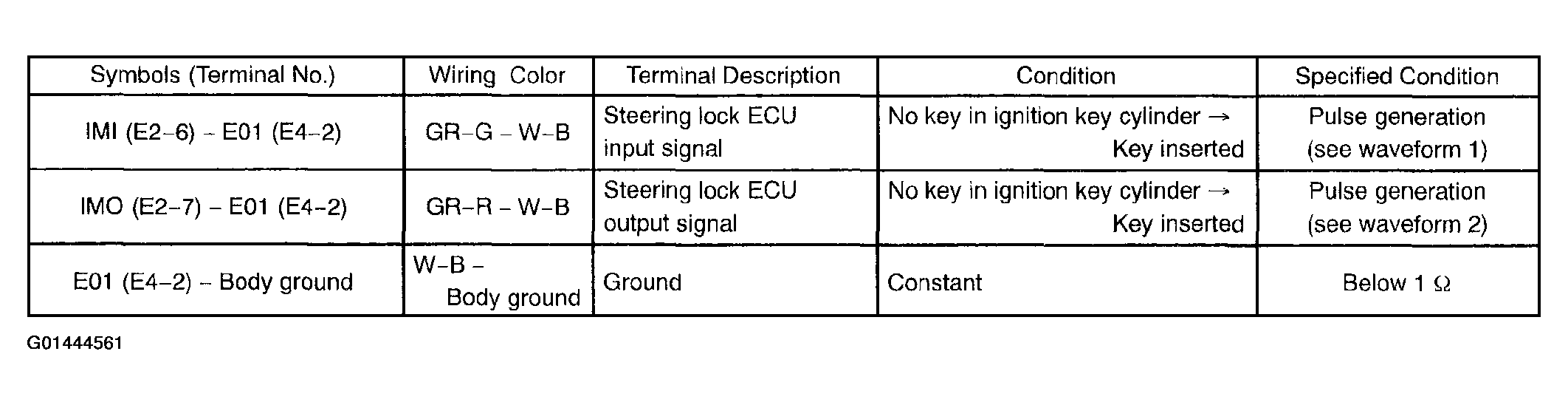

      Fig 24: Measuring Voltage And Resistance Between Each Terminal
      G01444561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Inspect using an oscilloscope.

      Waveform 1 (Reference):

      Fig 25: Identifying Waveform 1 Table
      G01444562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 26: Identifying Oscilloscope Graph
      G01444563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Waveform 2 (Reference):

      Fig 27: Identifying Waveform 2 Table
      G01444564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 28: Identifying Oscilloscope Graph
      G01444565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
