Inspection Procedure

1. Check the DATA LIST for proper functioning of the door unlock detection switch.

   Multiplex network body ECU (Driver door ECU):

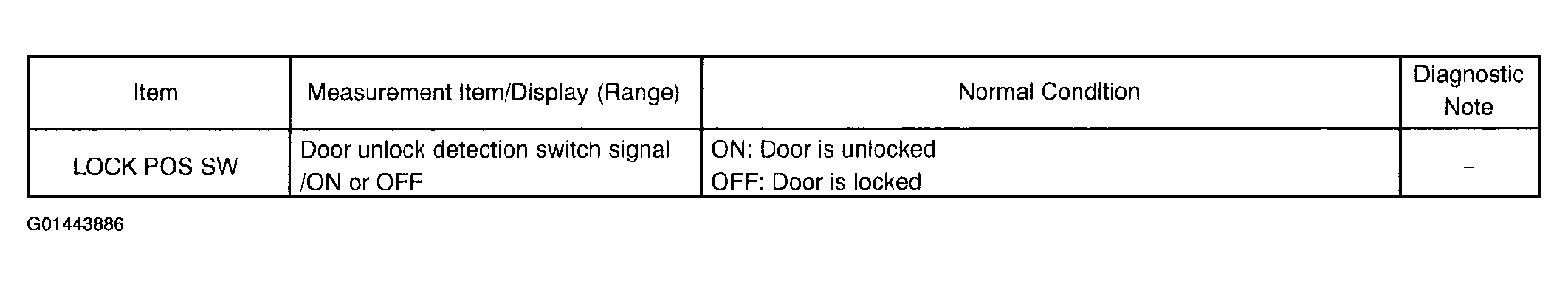

   Fig 1: Multiplex Network Body ECU (Driver Door ECU) - Data List

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

"ON" (door is unlocked) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOM TABLE (See  PROBLEM SYMPTOMS TABLE  )

1. w/o Door closer:

   Measure the resistance of the door unlock detection switch.

   Standard:

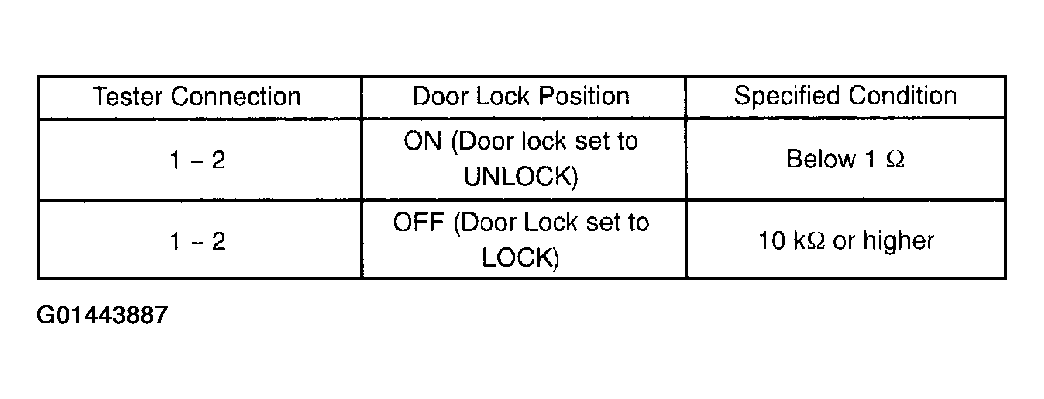

   Fig 2: Terminals Resistance Reference Chart (W/O Door Closer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

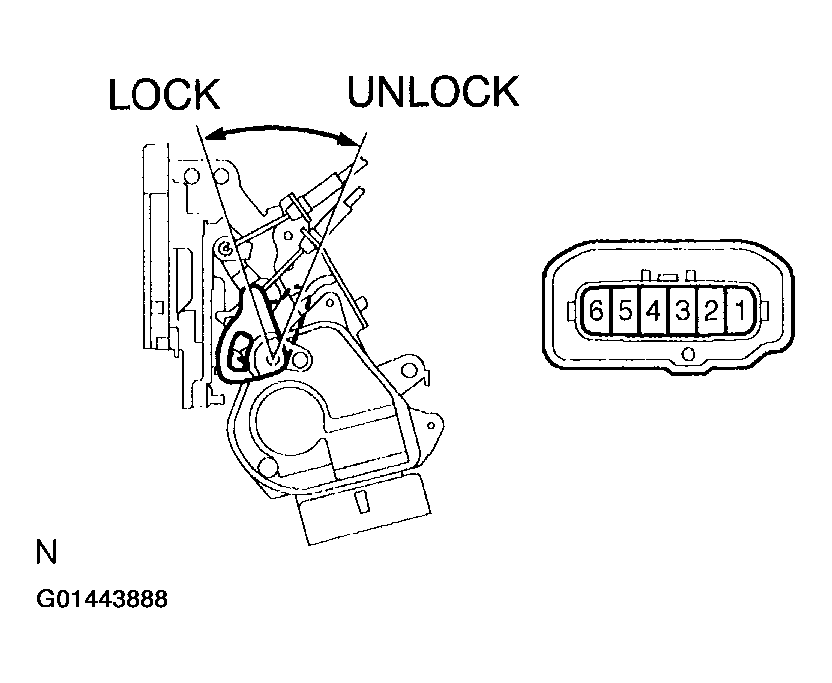

   Fig 3: Checking Front Door Lock Assy LH (Door Unlock Detection Switch) (W/O Door Closer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Door closer:

   Measure the resistance of the door unlock detection switch.

   Standard:

   Fig 4: Terminals Resistance Reference Chart (W/ Door Closer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

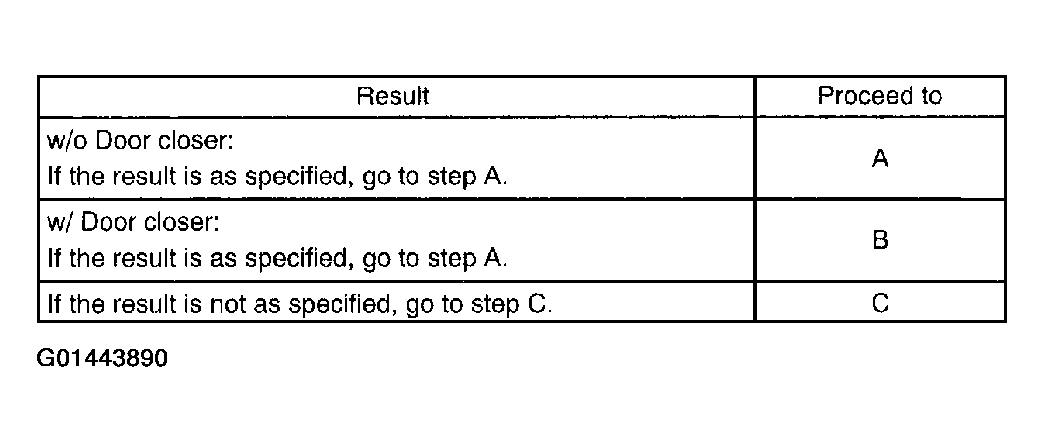

   Fig 5: Result Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result:

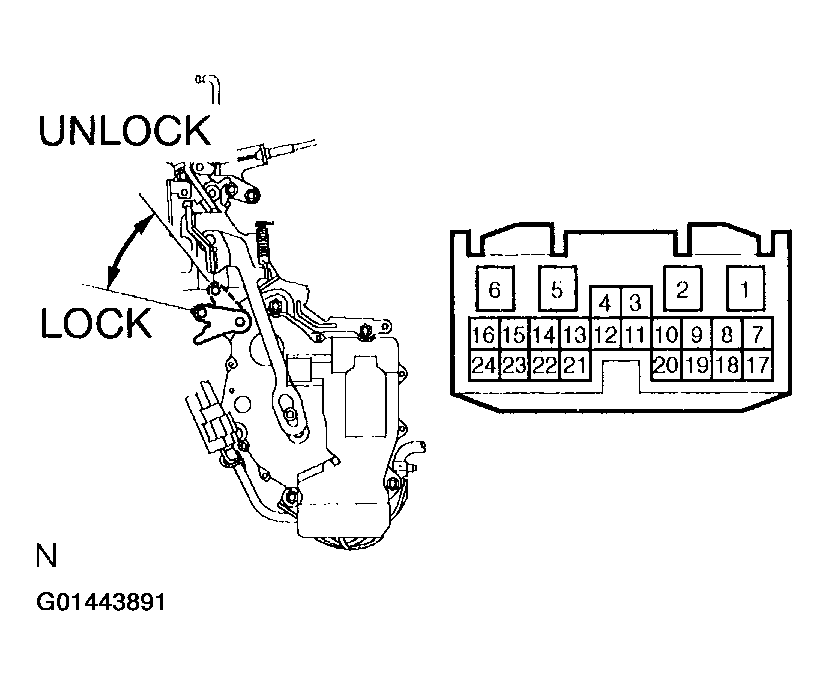

   Fig 6: Checking Front Door Lock Assy LH (Door Unlock Detection Switch) (W/ Door Closer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

C: REPAIR OR REPLACE FRONT DOOR LOCK ASSY LH

A: Go to next step.

1. Disconnect the D29 lock and D38 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard:

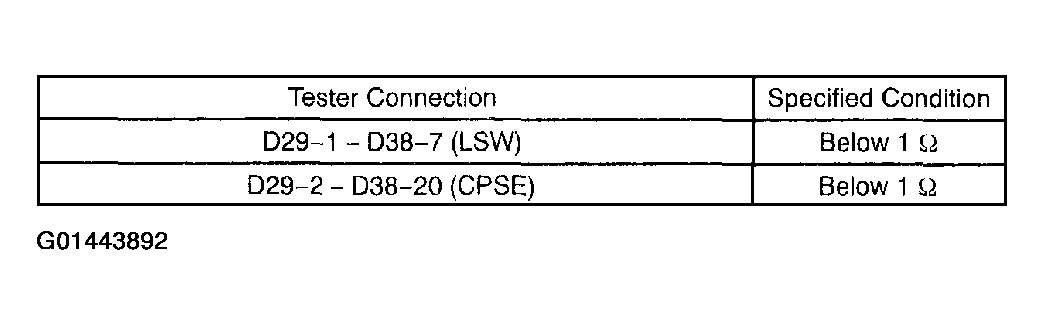

   Fig 7: Terminals Resistance Reference Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

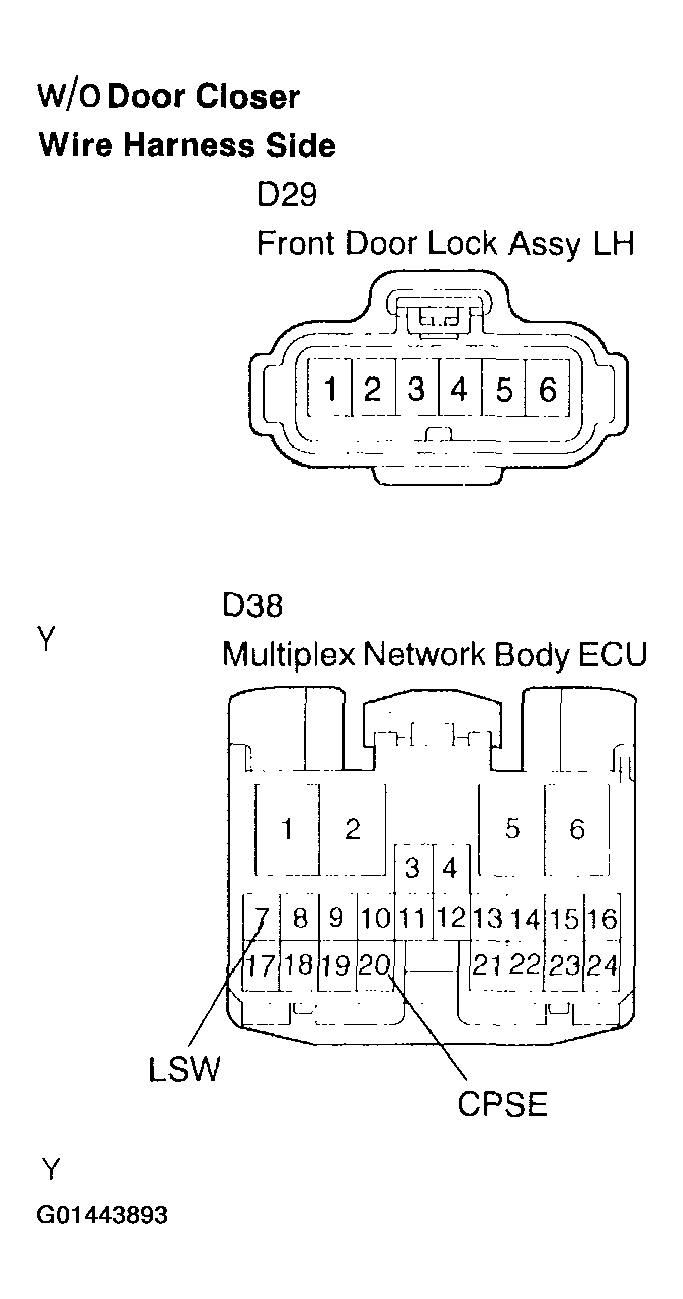

   Fig 8: Checking Wire Harness (Front Door Lock Assy LH - Multiplex Network Body ECU (Driver Door ECU))

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOM TABLE (See  PROBLEM SYMPTOMS TABLE  )
