Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

TELEVISION CAMERA ASSY

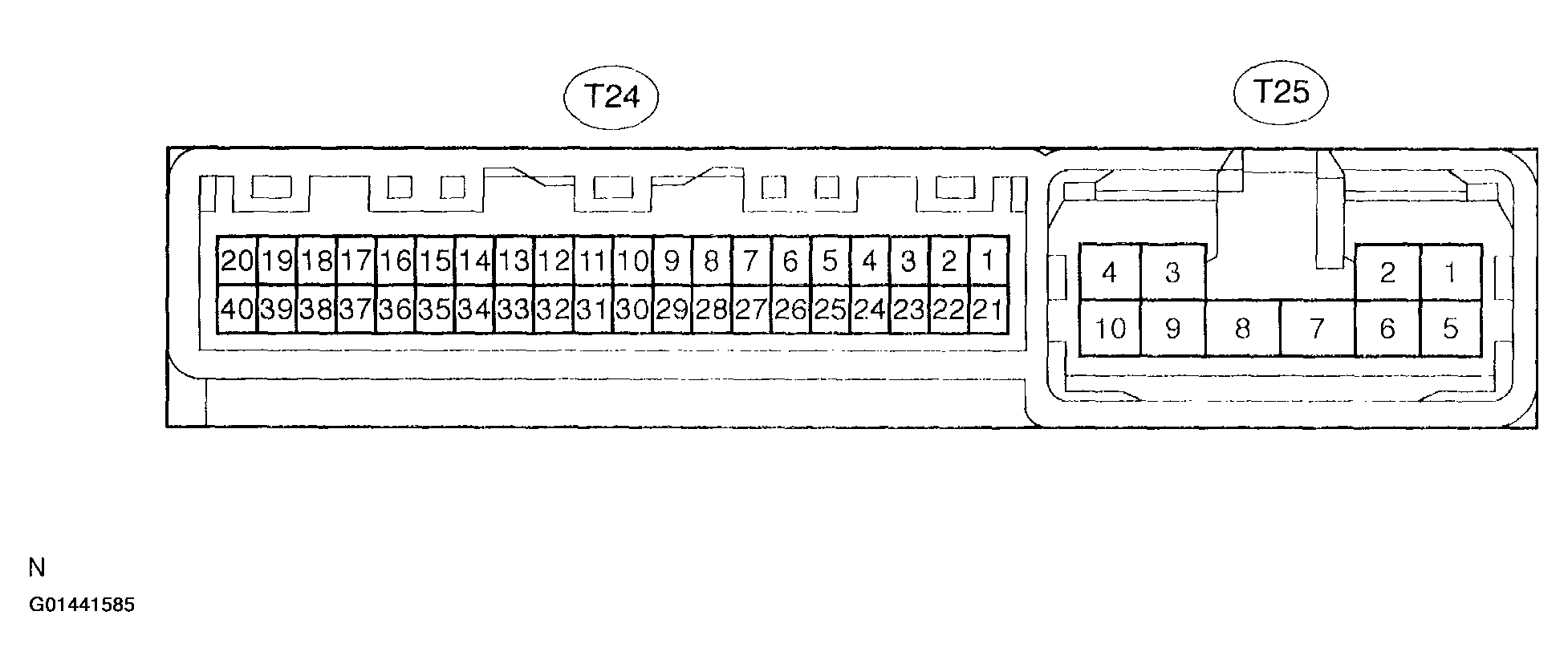

Fig 1: Identifying ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

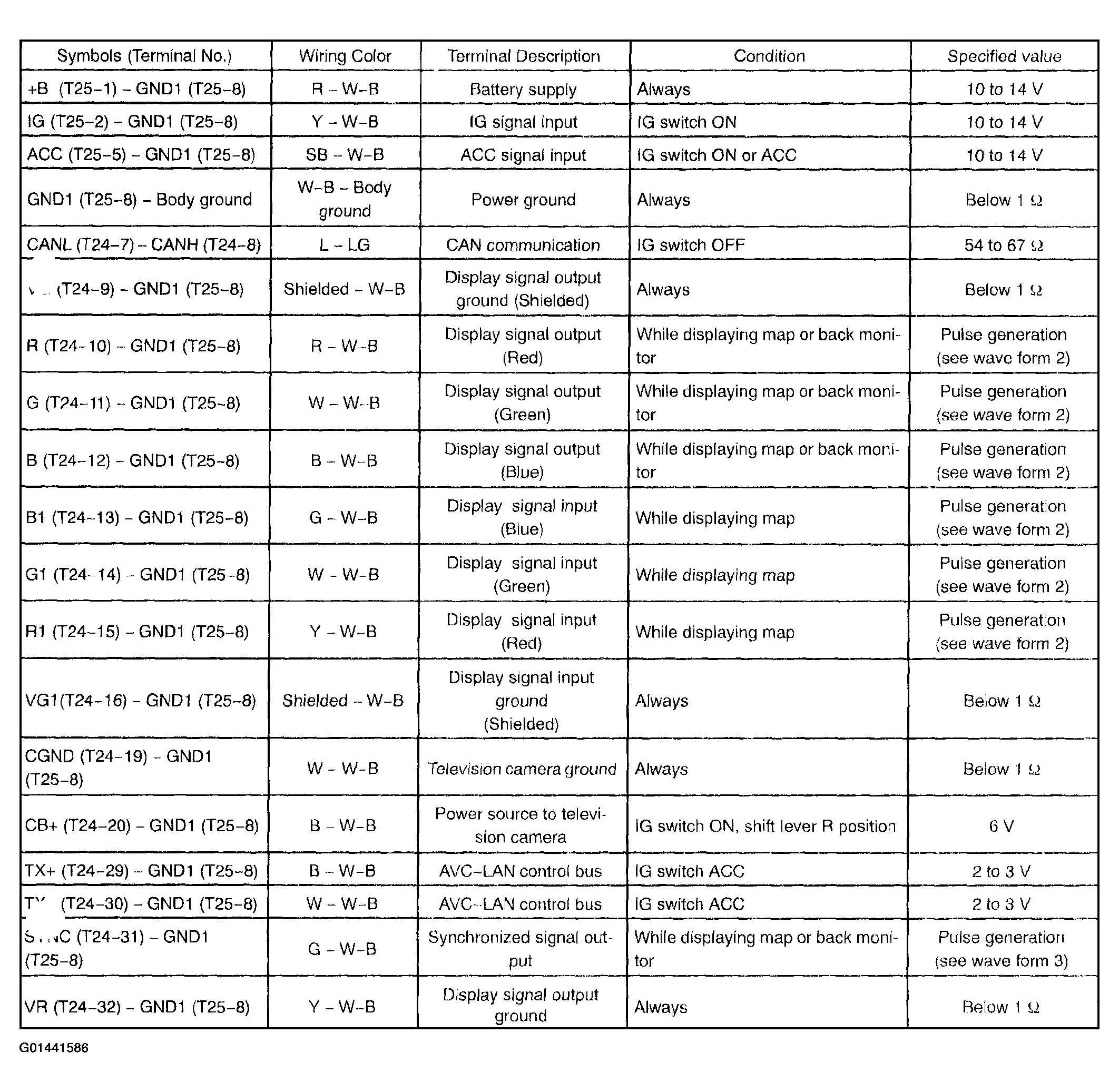

Fig 2: ECU Terminals Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Reference:
  1. Wave form 1

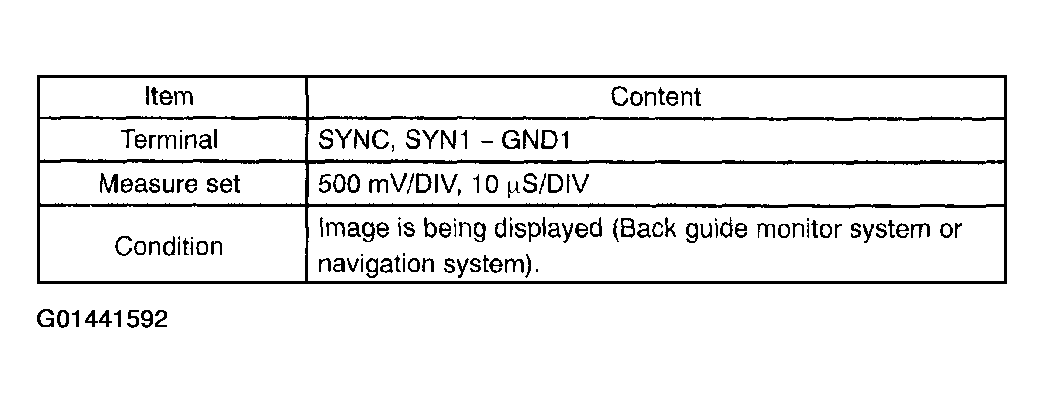

    Fig 3: Item Content Chart (Wave Form 1)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

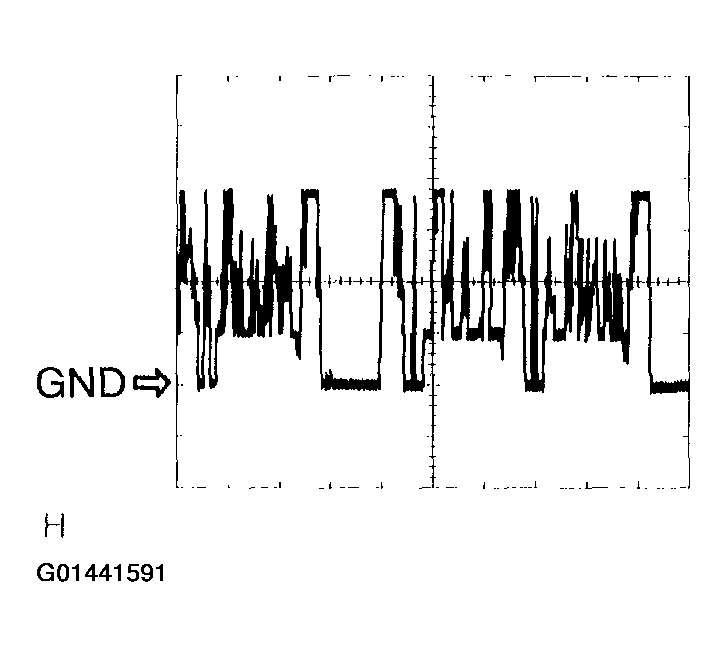

    Fig 4: Identifying Wave Form 1
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TELEVISION CAMERA ECU

Fig 5: Identifying Television Camera ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

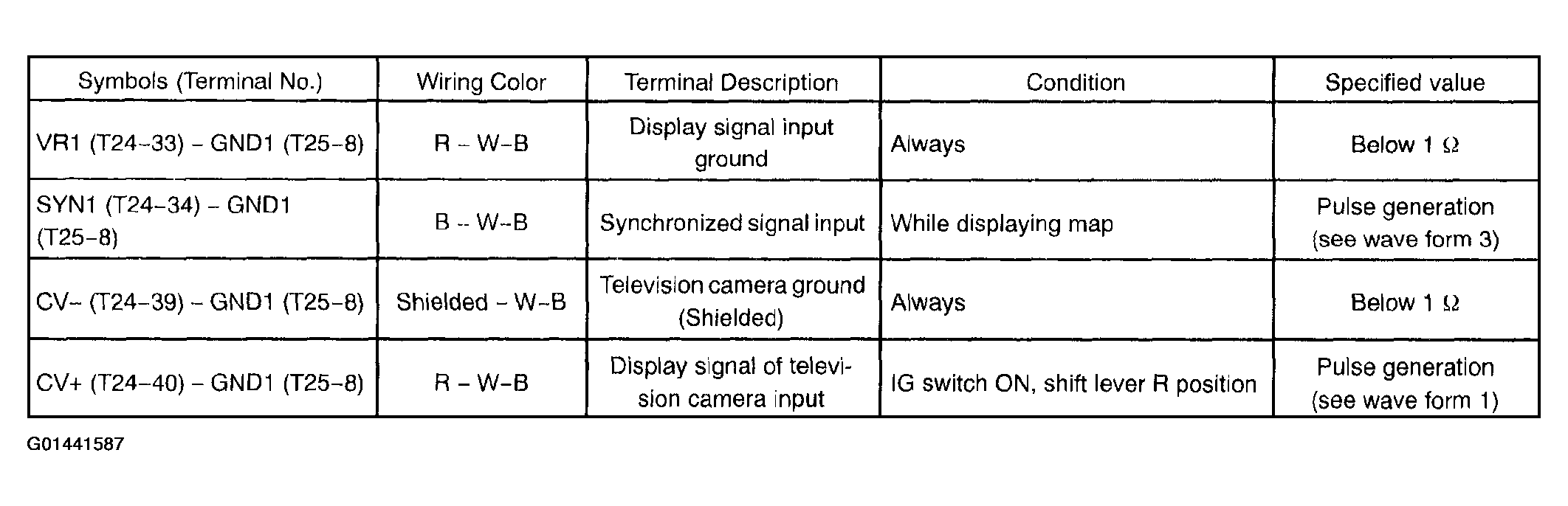

Fig 6: Television Camera ECU Terminals Reference Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

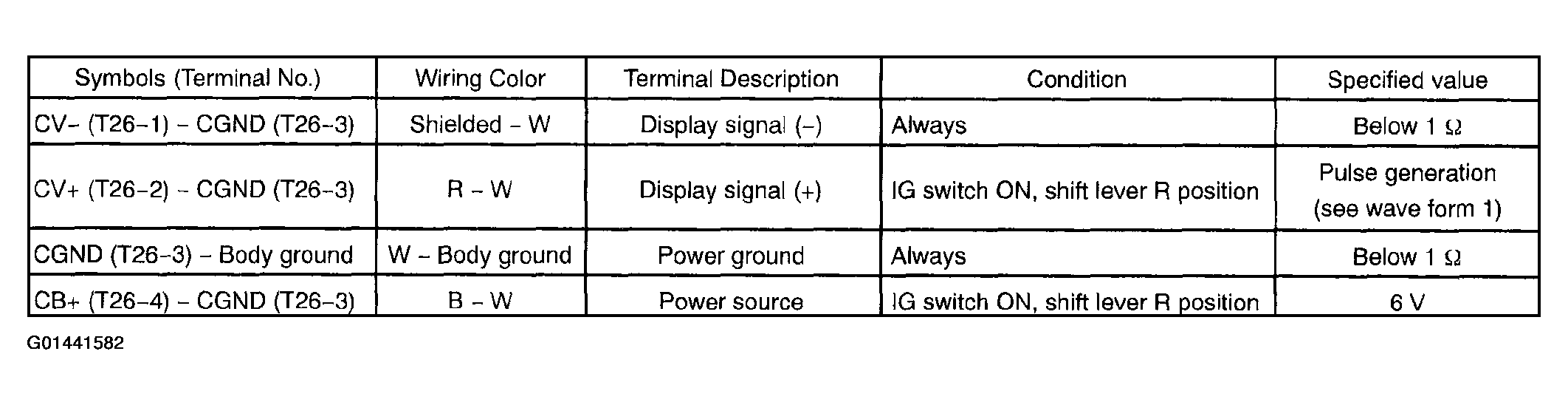

Fig 7: Television Camera ECU Terminals Reference Table (2 Of 2)

Reference:
1. Wave form 1

  Fig 8: Item Content Chart (Wave Form 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

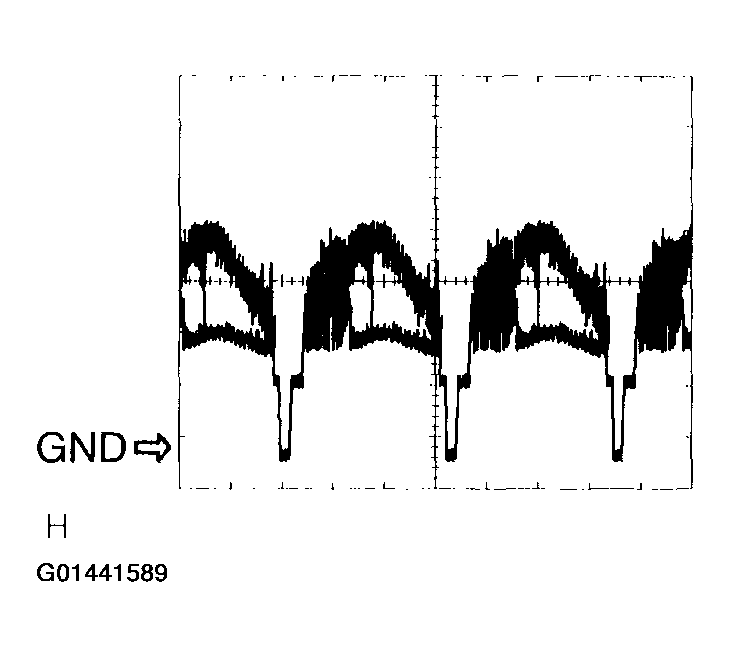

  Fig 9: Identifying Wave Form 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Wave form 2

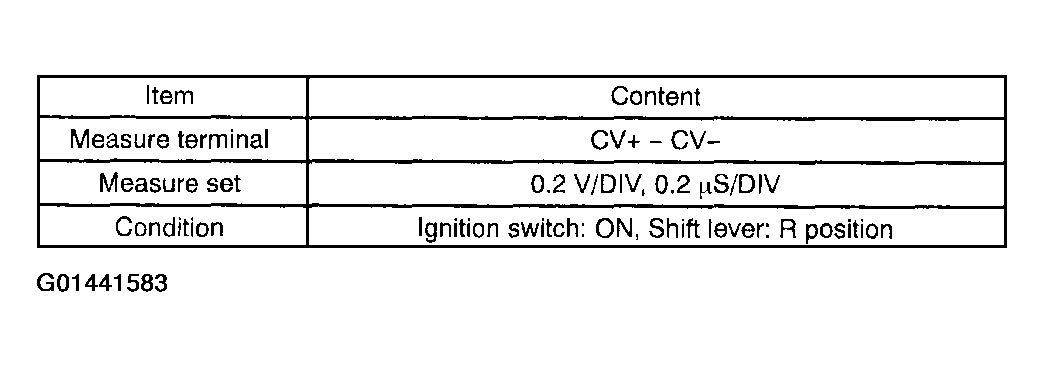

  Fig 10: Item Content Chart (Wave Form 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 11: Identifying Wave Form 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Wave form 3

  Fig 12: Item Content Chart Wave Form 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 13: Identifying Wave Form 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
