Circuit Description

Refer to DTCs P0100 on DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT, DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT, DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT  .

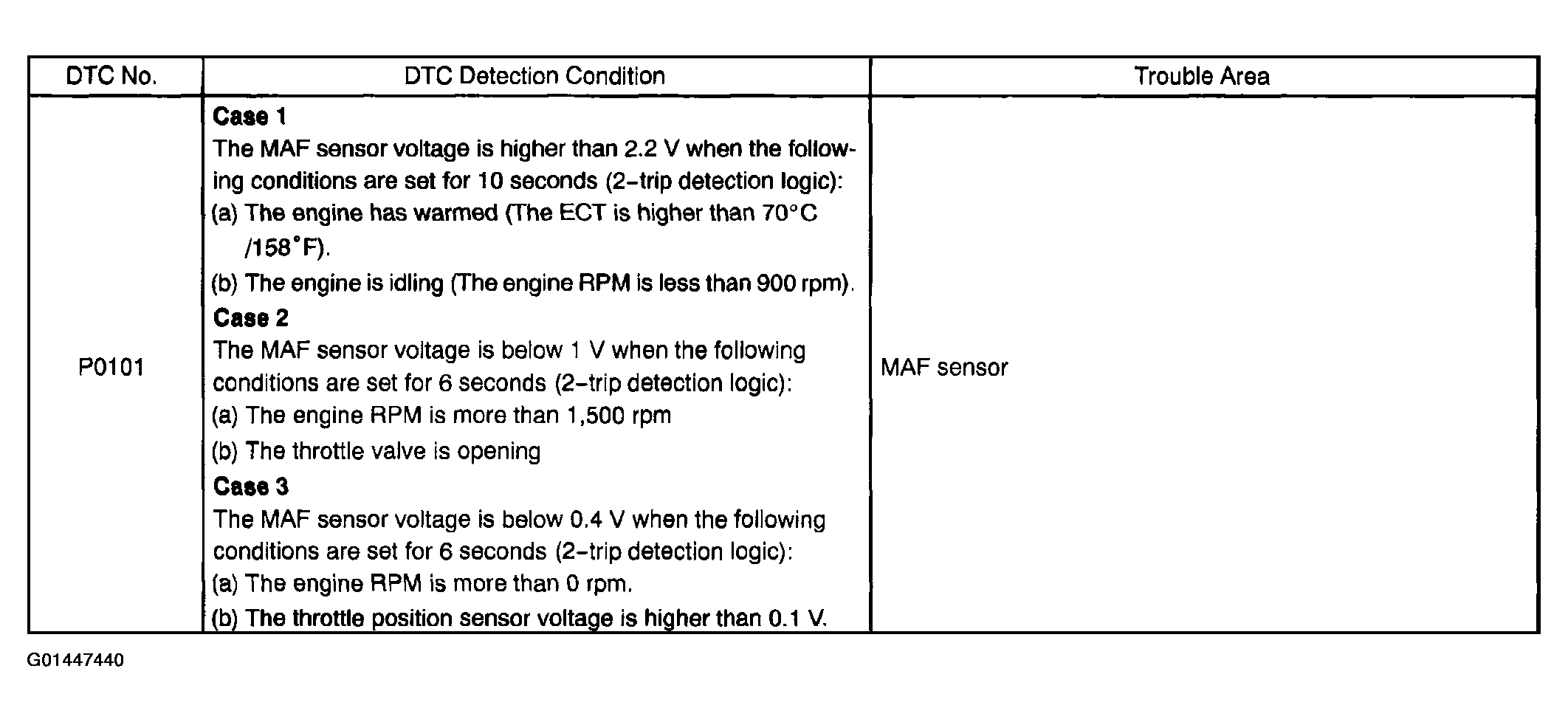

Fig 1: DTC Detection Condition/Possible Cause Chart
G01447440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
