Inspection Procedure

CHECK WIRE HARNESS (ECU - POWER WINDOW REGULATOR MOTOR RH)
1. Disconnect the P11 ECU and P16 power window motor RH connectors.
2. Check the continuity between the connector terminals of P11 and P16.

  Fig 1: Limit Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Limit switch

  Fig 2: Pulse Sensor Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Pulse sensor

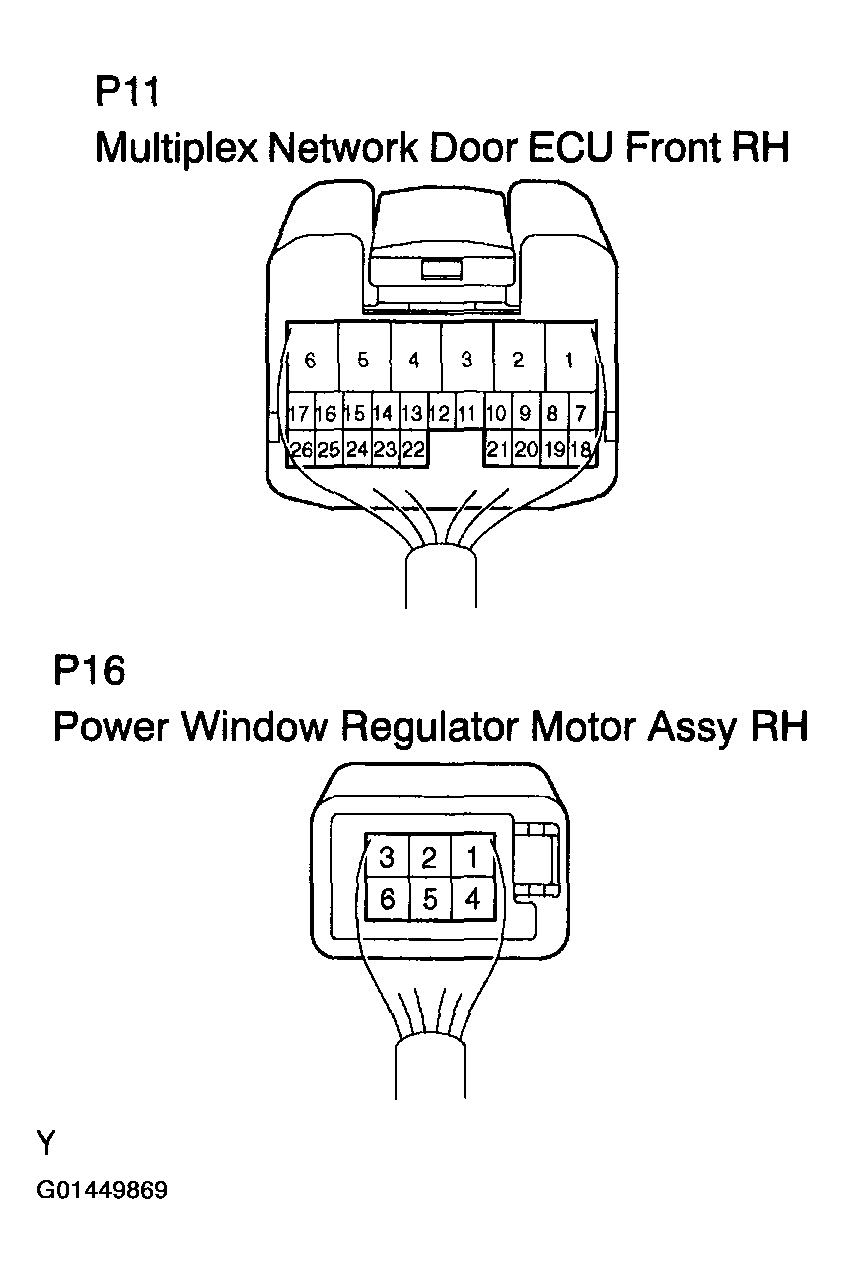

  Fig 3: Identifying Multiplex Network Door ECU & Power Window Regulator Motor Assy. Wire Harness Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.
REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH
