Inspection Procedure

CHECK CONTINUITY OF COMMUNICATION LINE
1. Check the wire harness among the radio receiver amplifier and gateway ECU.

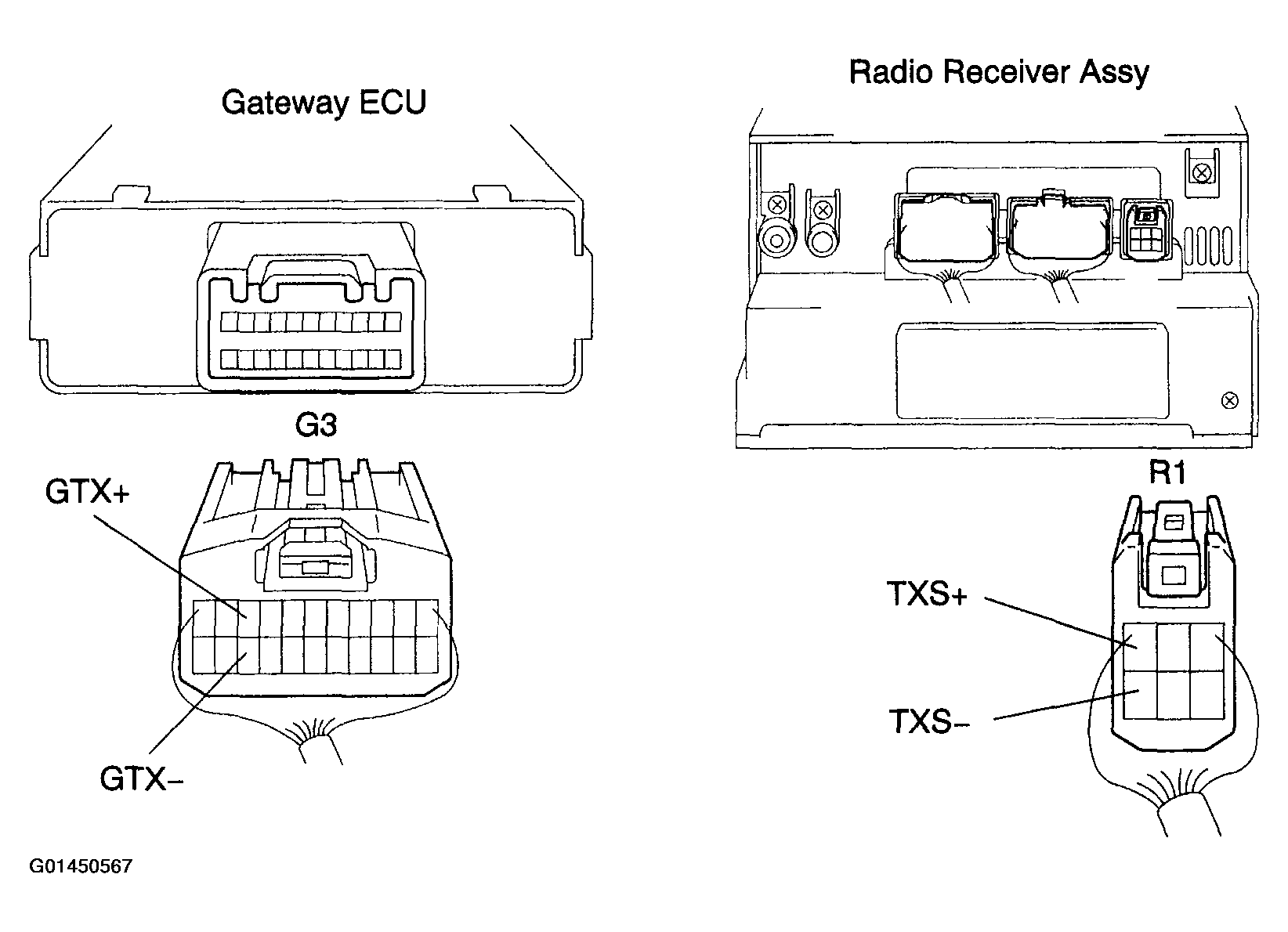

  Fig 1: Identifying Connector Terminals - Radio Receiver Amplifier & Gateway ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect the connectors of the gateway ECU and radio receiver assy.
  2. Check the continuity between terminal G3-9 (GTX+) of the gateway ECU vehicle's side connector and terminal R1-3 (TXS+) of the radio receiver assy vehicle's side connector.
    Standard: Continuity
  3. Check the continuity between terminal G3-20 (GTX-) of the gateway ECU vehicle's side connector and terminal R1-6 (TXS-) of the radio receiver assy vehicle's side connector.
    Standard: Continuity
1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
2. OK: Go to next step.
CHECK RADIO RECEIVER ASSY
1. Inspect the radio receiver assy power source input and body ground. (See TERMINALS OF ECU )
1. NG: REPAIR OR REPLACE FUSE OR WIRE HARNESS AND CONNECTOR
2. OK: Go to next Step.
  REPLACE RADIO RECEIVER ASSY
