Power Mirror Does Not Turn To Memorized Direction Flow Chart 6): Wiring Diagram

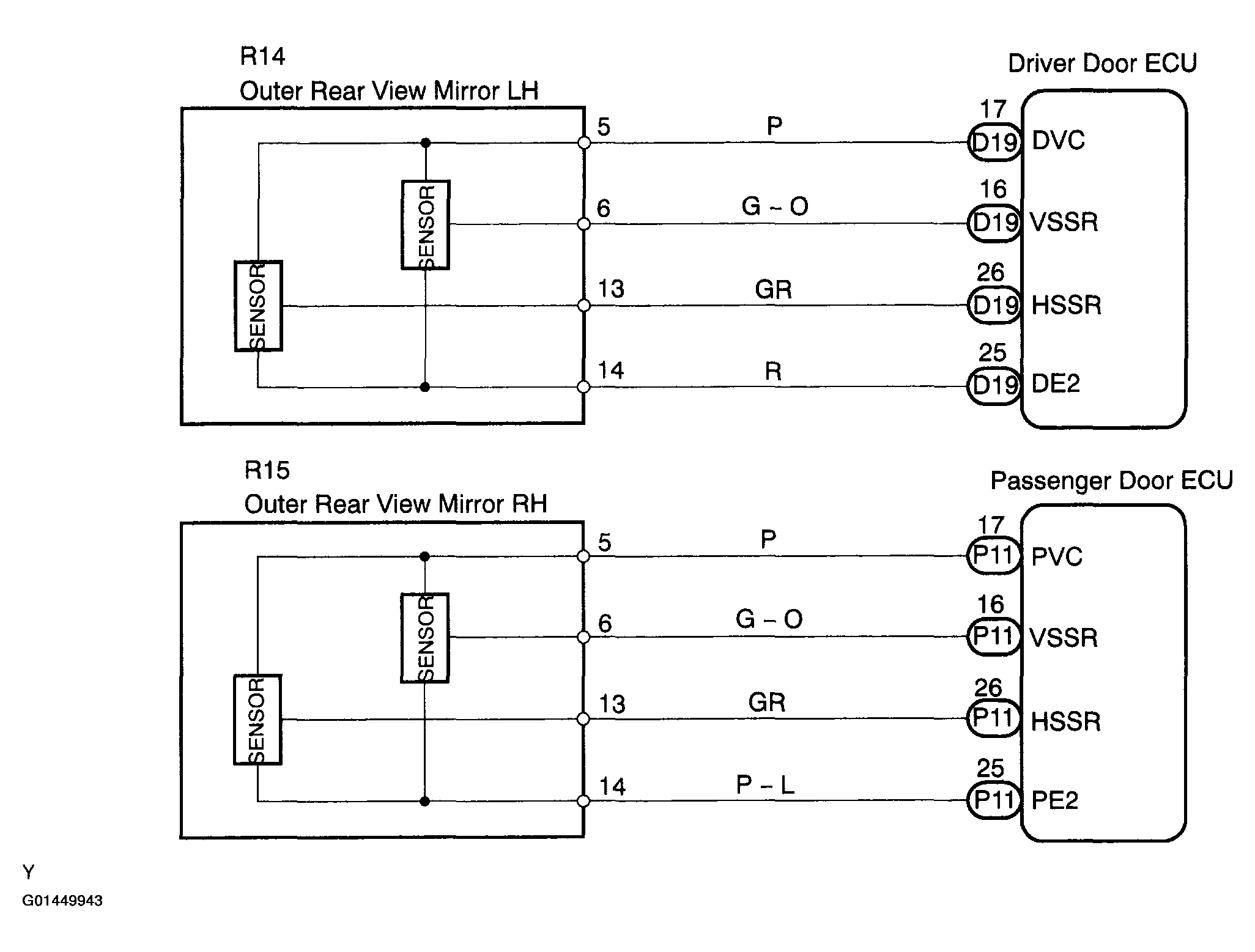

Fig 1: Power Mirror Circuit Diagram

G01449943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
