Mirror Facing Direction Is Not Memorized (Flow Chart 5): Wiring Diagram

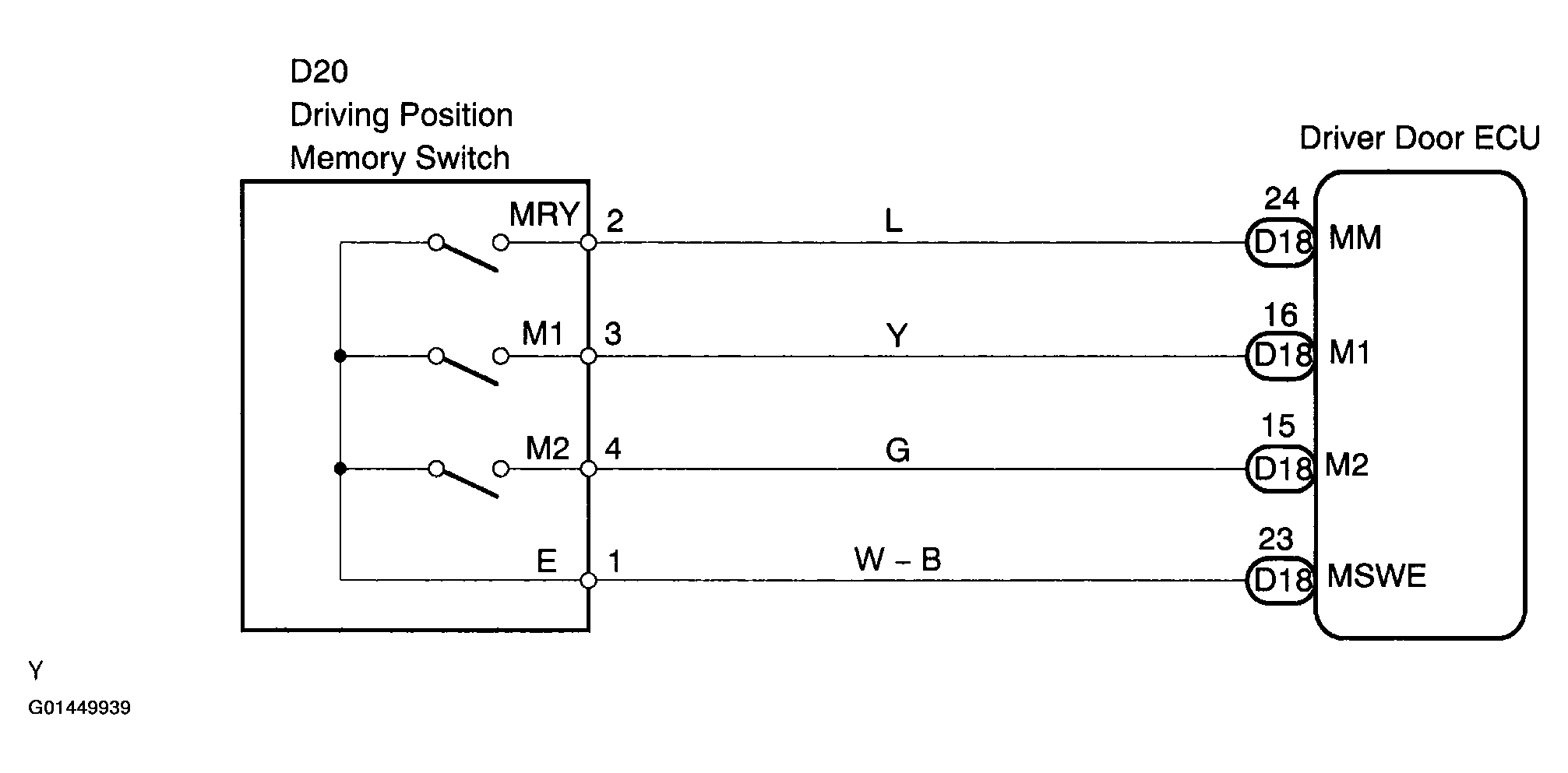

Fig 1: Mirror Facing Direction Circuit Diagram

G01449939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
