Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. RE-REGISTER ECU COMMUNICATION ID
    1. Re-register the ECU communication ID (See REGISTRATION  ) between the transponder key ECU assembly and ECM.
    2. Check that the engine starts.

      OK: The engine starts.

    OK: END

    NG: Go to next step.

  2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - ECM)
    1. Disconnect the T9 ECU and E6 ECM connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      T9-6 (EFIO) - E6-16 (IMI) Below 1 Ω
      T9-7 (EFII) - E6-15 (IMO)
      T9-6 (EFIO) - Body ground 10 kΩ or higher
      T9-7 (EFII) - Body ground

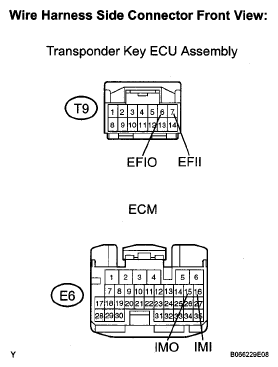

      Fig 1: Identifying T9 ECU & E6 ECM Connectors Terminals
      G05273604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  3. CHECK TRANSPONDER KEY ECU ASSEMBLY
    1. After replacing the transponder key ECU assembly with a normally functioning transponder key ECU assembly, check that the engine starts.

      OK: The engine starts.

    NG: REPLACE ECM

    OK: END
