DTC B1780 Front Occupant Classification Sensor LH Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

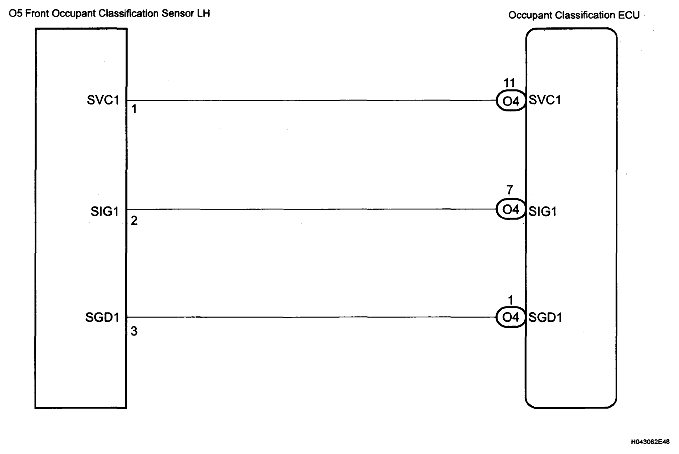

Fig 1: Front Occupant Classification Sensor LH Circuit Malfunction - Wiring Diagram
G05270281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
