Monitor Strategy

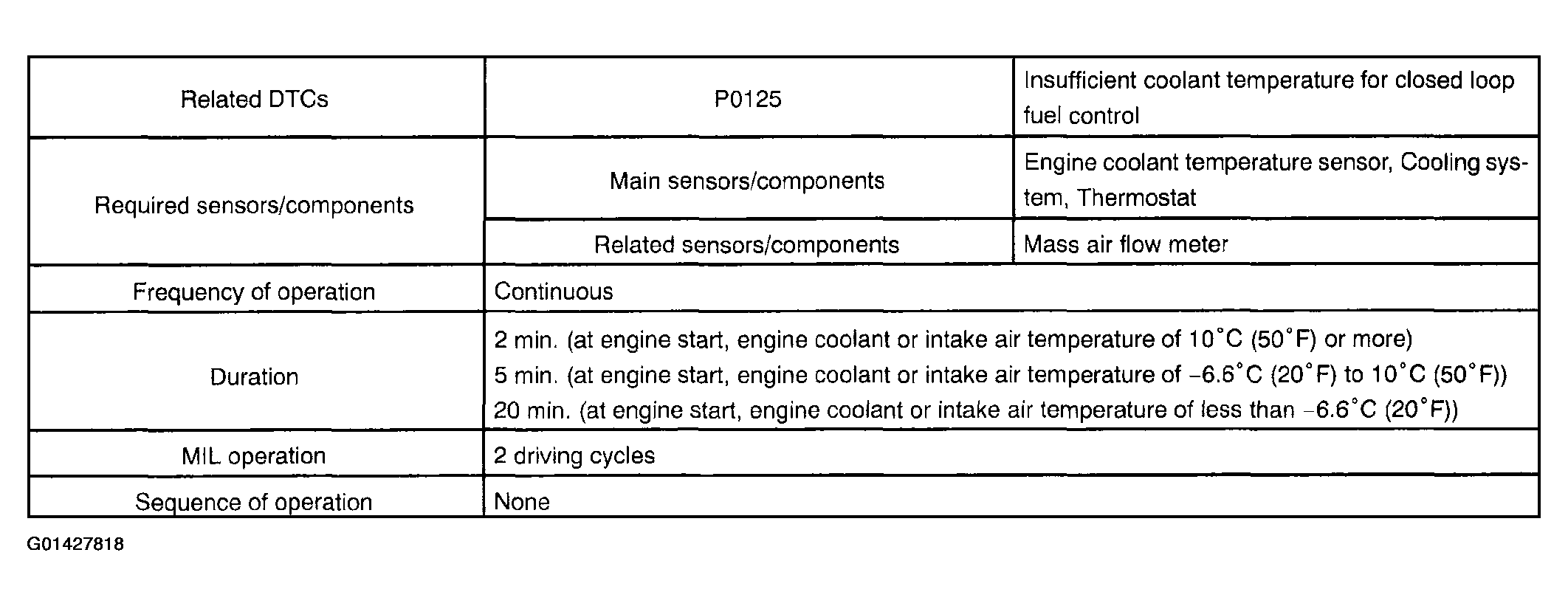

Fig 1: Monitor Strategy Chart
G01427818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
