Oil Cooler: Components

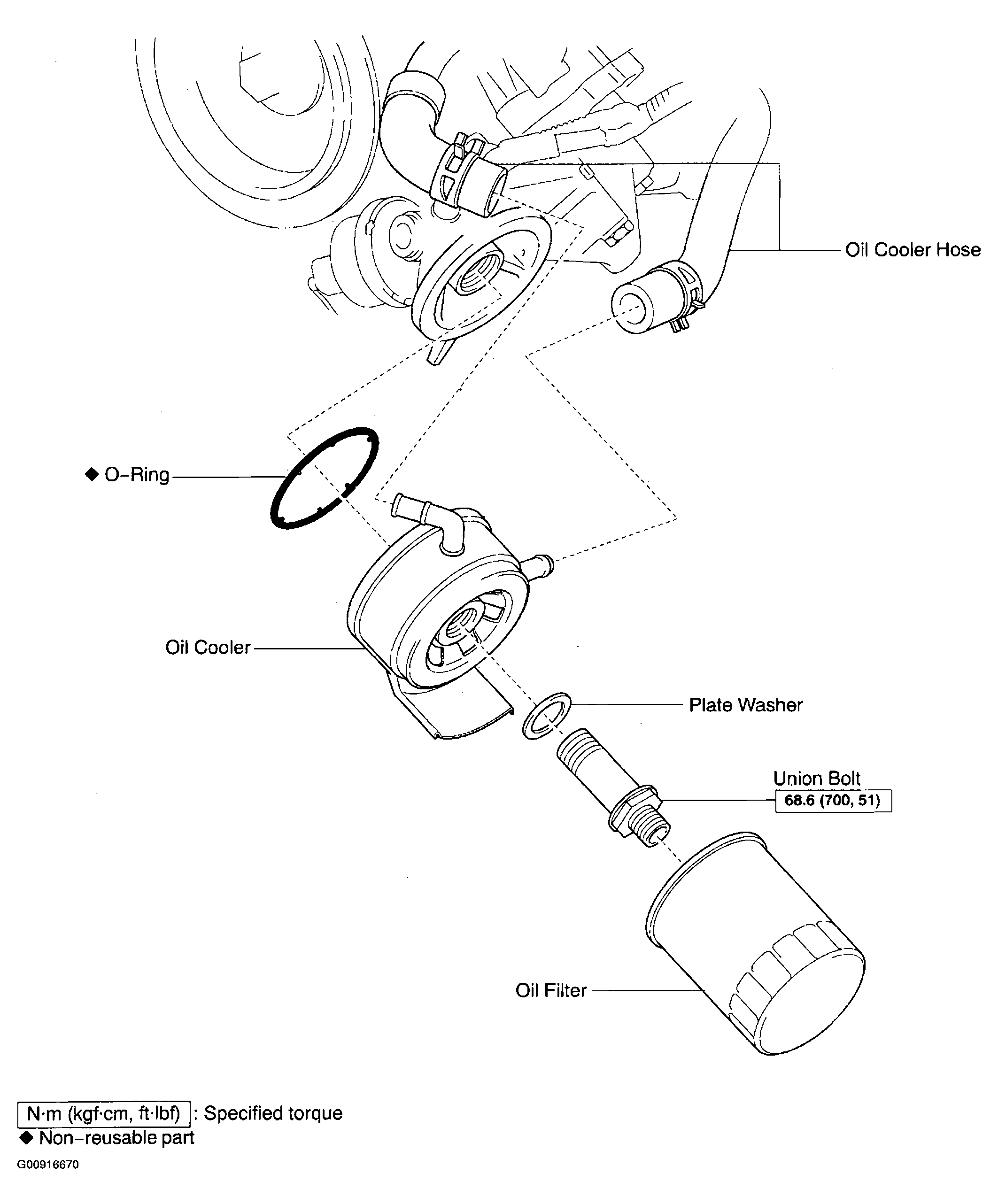

Fig 1: Identifying Oil Cooler Components

G00916670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
